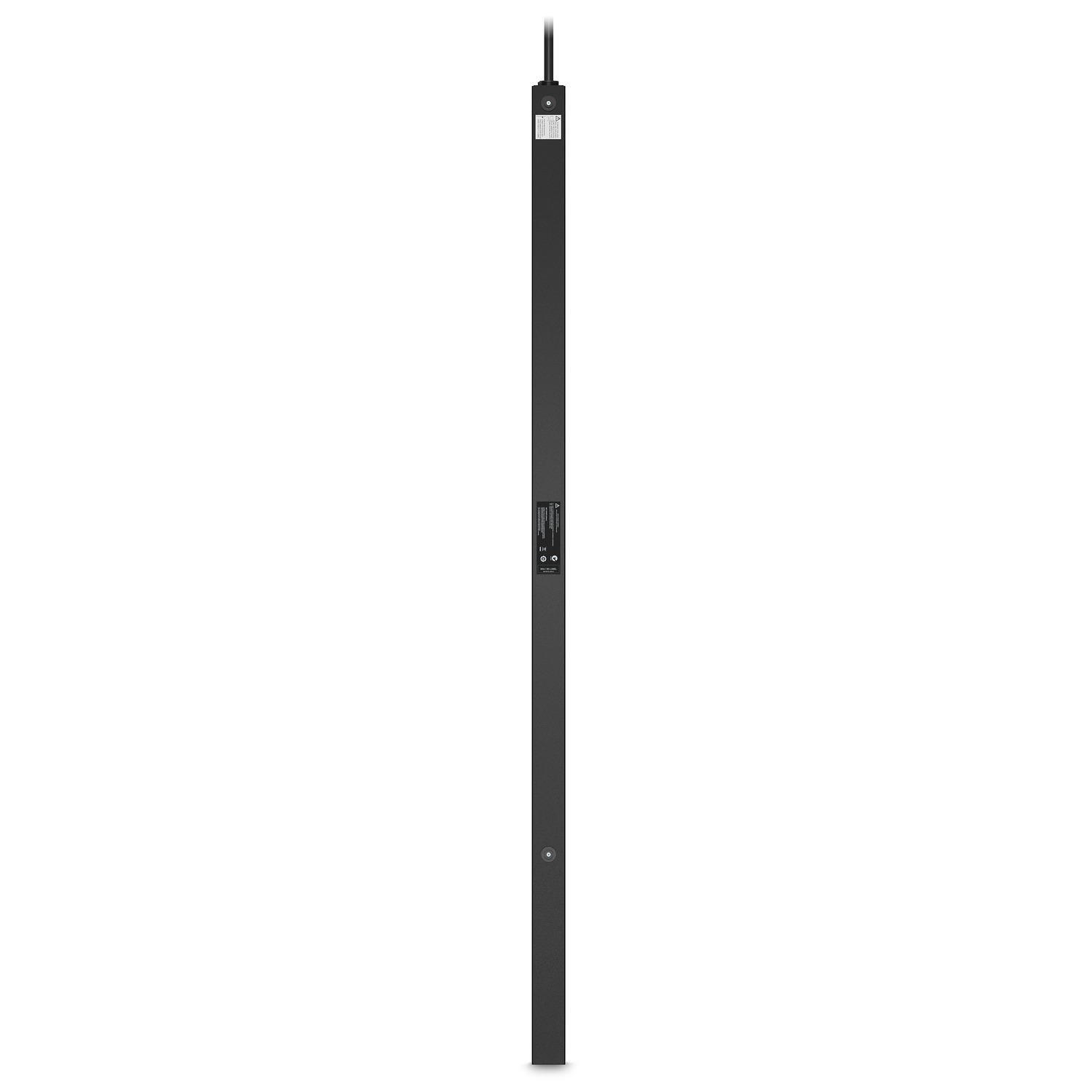

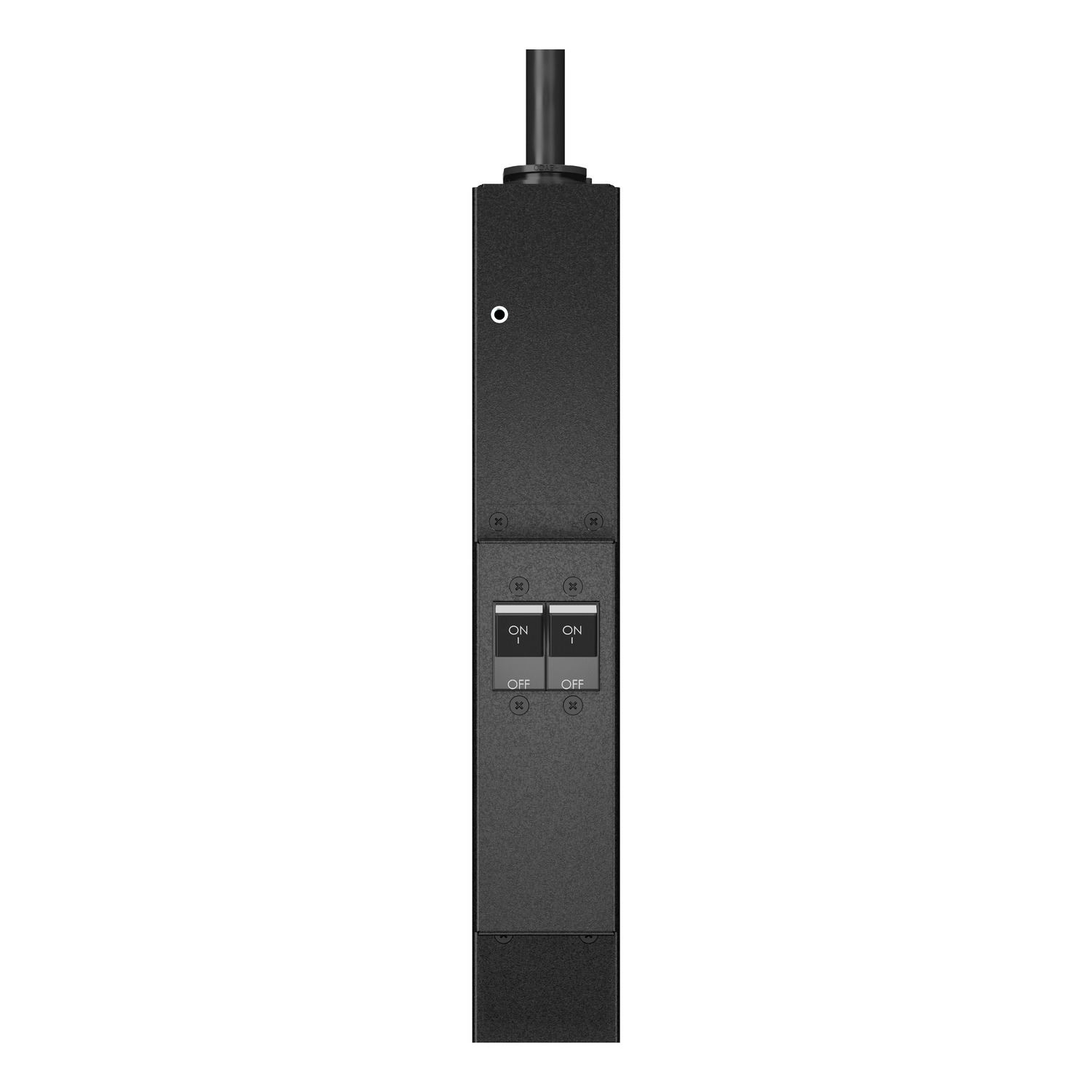

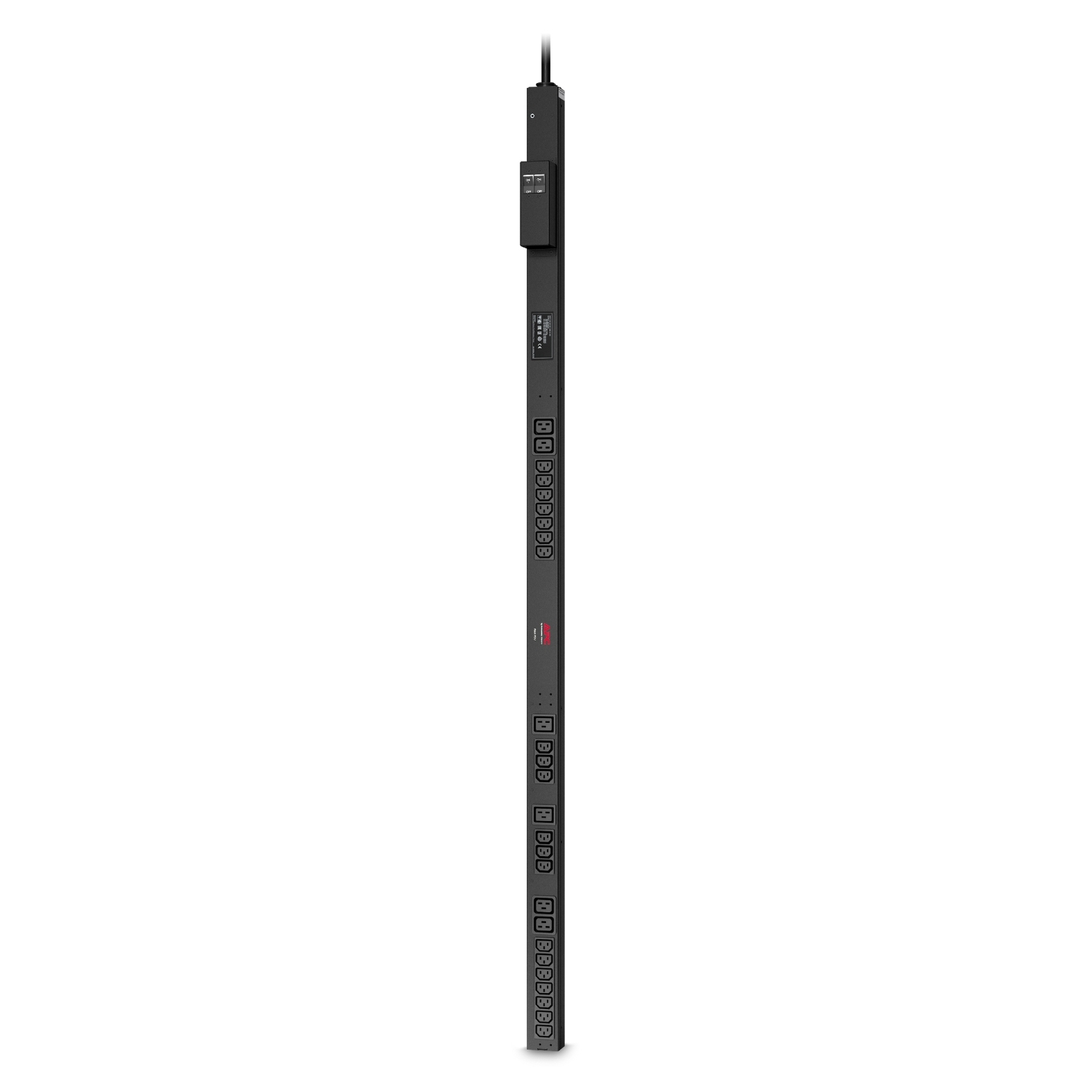

APC RACK PDU, BASIC, VERTICAL, 220-240V, 32A, (20) C13, (6) C19

APC RACK PDU, BASIC, VERTICAL, 220-240V, 32A, (20) C13, (6) C19

Model AP6009AEAN 731304327783

42 specifications

Weight6.18 kg
ColourBlack
PDU typesBasic
AC outlets quantity26 AC outlet(s)
Cable length3 m
Nominal input voltage230 V

See all specifications

Overview

Weight: 6.18 kg
Colour: Black
PDU types: Basic
AC outlets quantity: 26 AC outlet(s)
Cable length: 3 m
Nominal input voltage: 230 V

Brand: APC
Category: Power Distribution Units (PDUs)
Model: AP6009A
Part number: AP6009A
EAN / UPC: 731304327783
Also known as: APC RACK PDU, BASIC, VERTICAL, 220-240V, 32A, (20) C13, (6) C19

Specifications

42 specifications in 10 groups

Design

Specification	Value
PDU types	Basic
Rack capacity	0U
Mounting	Vertical
Product colour	Black

Ports & interfaces

Specification	Value
AC outlets quantity	26 AC outlet(s)
Power plug	IEC309
AC outlet types	C13 coupler, C19 coupler
Input connection type	IEC 60309 32 A 2P + E

Features

Specification	Value
Cable length	3 m

Power

Specification	Value
Nominal input voltage	230 V
AC input frequency	50 - 60 Hz
Maximum current	32 A
Nominal output voltage	230 V
Output voltage	230 V
Power protection features	Overload

Certificates

Specification	Value
Compliance certificates	RoHS, REACH, WEEE
Waste Electrical and Electronic Equipment (WEEE) compliance	Yes
Certification	CE; EAC; IRAM; VDE

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-15 - 65 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m

Weight & dimensions

Specification	Value
Width	56 mm
Depth	43 mm
Height	1626 mm
Weight	6.18 kg

Packaging data

Specification	Value
Package weight	8 kg
Package width	226 mm
Package depth	135 mm
Package height	1875 mm

Technical details

Specification	Value
Halogen free	No
Packaging recycled materials	Recycled cardboard
Preferred mounting position	no preference
Packaging without single use plastic	No
SCIP number	1cdb2fed-a06f-4574-913d-8df8e70936b2
Sustainable packaging	No
Take-back system	No

Logistics data

Specification	Value
Country of origin	India
Customs product code (TARIC)	8544429090
Total carbon footprint (kg of CO2e)	4481.3674802844
