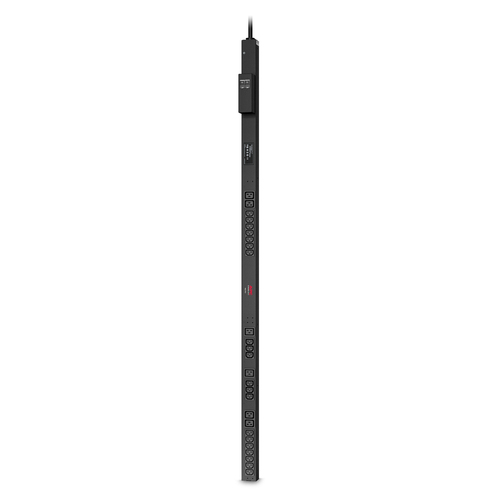

APC AP6003A power distribution unit (PDU) 14 AC outlet(s) 0U/2U Black

APC AP6003A power distribution unit (PDU) 14 AC outlet(s) 0U/2U Black

Model AP6003AEAN 731304327769

33 specifications

Power3680 W
TypeSingle-phase
Weight1.88 kg
ColourBlack
PDU typesBasic
AC outlets quantity14 AC outlet(s)

See all specifications

Overview

Power: 3680 W
Type: Single-phase
Weight: 1.88 kg
Colour: Black
PDU types: Basic
AC outlets quantity: 14 AC outlet(s)

Brand: APC
Category: Power Distribution Units (PDUs)
Model: AP6003A
Part number: AP6003A
EAN / UPC: 731304327769
Also known as: APC AP6003A power distribution unit (PDU) 14 AC outlet(s) 0U/2U Black

Specifications

33 specifications in 7 groups

Design

Specification	Value
PDU types	Basic
Type	Single-phase
Rack capacity	0U/2U
Mounting	Horizontal/Vertical
Product colour	Black

Ports & interfaces

Specification	Value
AC outlets quantity	14 AC outlet(s)
Power plug	C20 coupler
AC outlet types	C13 coupler
Input connection type	IEC-320 C20

Power

Specification	Value
Nominal input voltage	230 V
AC input frequency	50 - 60 Hz
Maximum current	20 A
Nominal output voltage	100-240 V
Load capacity	3680 VA
Maximum input current per phase	16 A
Maximum total current draw per phase	16 A
Maximum power	3680 W

Certificates

Specification	Value
Compliance certificates	RoHS
Certification	cUL, UL, REACH

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-15 - 65 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	5 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m

Weight & dimensions

Specification	Value
Width	56 mm
Depth	47 mm
Height	523 mm
Weight	1.88 kg

Packaging data

Specification	Value
Package weight	2.55 kg
Package width	123 mm
Package depth	107 mm
Package height	612 mm
