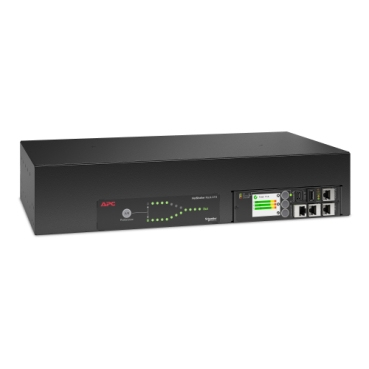

Netshelter Rack Automatic Transfer Switch, 2U, 30A
208V, 2 L6-30P IN, 1 L6-30R OUT, 50/60Hz
Model AP4431AEAN 731304432470
25 specifications
- Weight6.5 kg
- ColourBlack
- PDU typesSwitched
- AC outlets quantity1 AC outlet(s)
- Cable length2.44 m
- Nominal input voltage228 V
Overview
- Weight
- 6.5 kg
- Colour
- Black
- PDU types
- Switched
- AC outlets quantity
- 1 AC outlet(s)
- Cable length
- 2.44 m
- Nominal input voltage
- 228 V
- Brand
- APC
- Category
- Power Distribution Units (PDUs)
- Model
- AP4431A
- Part number
- AP4431A
- EAN / UPC
- 731304432470
- Also known as
- APC Netshelter Rack Automatic Transfer Switch, 2U, 30A, 208V, 2 L6-30P IN, 1 L6-30R OUT, 50/60Hz
Specifications
25 specifications in 8 groups
Design
| Specification | Value |
|---|---|
| PDU types | Switched |
| Rack capacity | 2U |
| Mounting | Horizontal |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 1 AC outlet(s) |
| AC outlet types | NEMA L6-30R |
Features
| Specification | Value |
|---|---|
| Cable length | 2.44 m |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 228 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 30 A |
| Nominal output voltage | 228 V |
| Load capacity | 4992 VA |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -5 - 45 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 432 mm |
| Depth | 236 mm |
| Height | 88 mm |
| Weight | 6.5 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 9 kg |
| Package width | 584 mm |
| Package depth | 356 mm |
| Package height | 210 mm |
Logistics data
| Specification | Value |
|---|---|
| Total carbon footprint (kg of CO2e) | 745.85 |
