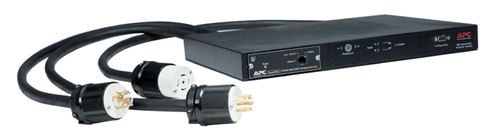

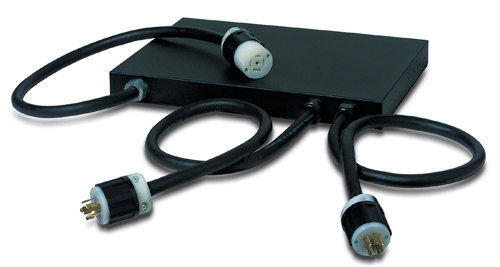

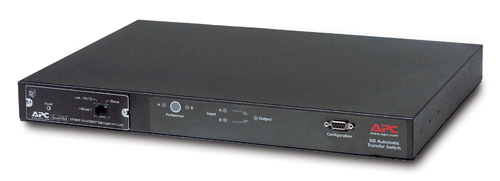

1U Rack Mountable 16A Automatic Transfer Switch
Model 1U Rack Mountable 16A Automatic Transfer SwitchPart no. AP7701EAN 731304119548
17 specifications
- Weight6.82 kg
- ColourBlack
- Input connection typeNEMA L21-20P
- Cable length0.91 m
- Nominal input voltage208 V
- Operating temperature (T-T)0 - 45 °C
Overview
- Weight
- 6.82 kg
- Colour
- Black
- Input connection type
- NEMA L21-20P
- Cable length
- 0.91 m
- Nominal input voltage
- 208 V
- Operating temperature (T-T)
- 0 - 45 °C
- Brand
- APC
- Category
- Power Distribution Units (PDUs)
- Model
- 1U Rack Mountable 16A Automatic Transfer Switch
- Part number
- AP7701
- EAN / UPC
- 731304119548, 4021808090839, 7313041195486
- Also known as
- APC 1U Rack Mountable 16A Automatic Transfer Switch power distribution unit (PDU) Black
Specifications
17 specifications in 7 groups
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Input connection type | NEMA L21-20P |
| Output connections | (1) NEMA L21-20 |
Features
| Specification | Value |
|---|---|
| Cable length | 0.91 m |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 208 V |
| Nominal output voltage | 208 V |
| Maximum input current per phase | 20 A |
| Maximum total current draw per phase | 16 A |
Certificates
| Specification | Value |
|---|---|
| Certification | cUL,FCC 15 A,METI Denan,UL,VCCI |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 432 mm |
| Depth | 305 mm |
| Height | 44 mm |
| Weight | 6.82 kg |
