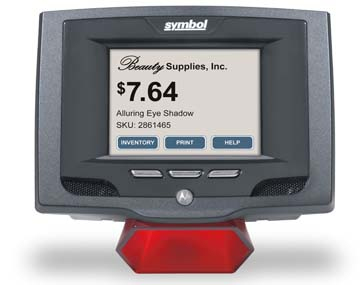

Motorola MK500
0.52 GHz 8.89 cm (3.5") 320 x 240 pixels Touchscreen Black
Model MK500EAN 682017496672
33 specifications
- Display8.89 cm (3.5")
- Resolution320 x 240 pixels
- ProcessorIntel® XScale®
- Memory0.0625 GB
- Storage0.0625 GB
- OSWindows CE 5.0
Overview
- Display
- 8.89 cm (3.5")
- Resolution
- 320 x 240 pixels
- Processor
- Intel® XScale®
- Memory
- 0.0625 GB
- Storage
- 0.0625 GB
- OS
- Windows CE 5.0
- Brand
- Zebra
- Category
- POS System
- Model
- MK500
- Part numbers
- MK500, MK500-A030DB9GWTWR, MK590-A030DB9GWTWR, MK590-A0U0DB9GWTWR
- EAN / UPC
- 682017496672, 4054318749515, 682017471402, 5711783847847 +1 more
- Also known as
- Motorola MK500 0.52 GHz 8.89 cm (3.5") 320 x 240 pixels Touchscreen Black
Specifications
33 specifications in 15 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 8.89 cm (3.5") |
| Display resolution | 320 x 240 pixels |
| Touchscreen | Yes |
| Touchscreen technology | Resistive |
Processor
| Specification | Value |
|---|---|
| Processor family | Intel® XScale® |
| Processor frequency | 0.52 GHz |
Memory
| Specification | Value |
|---|---|
| Internal memory | 0.0625 GB |
| Internal memory type | SDRAM |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 0.0625 GB |
| Storage media | Flash |
Features
| Specification | Value |
|---|---|
| Certification | EN, FCC, ICES, UL, IEC, CEN, CDRH, AS/NZS, RoHS |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 1 |
| DC-in jack | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows CE 5.0 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating temperature (T-T) | 32 - 104 °F |
| Relative humidity | 5 - 80% |
| Storage temperature (T-T) | -20 - 70 °C |
Ergonomics
| Specification | Value |
|---|---|
| Wall mountable | Yes |
| Panel mounting interface | 75 x 75 mm |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 128 mm |
| Depth | 42 mm |
| Height | 142 mm |
| Weight | 320 g |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84715000 |
Other features
| Specification | Value |
|---|---|
| Networking features | Fast Ethernet |
| Power requirements | 24V DC |
