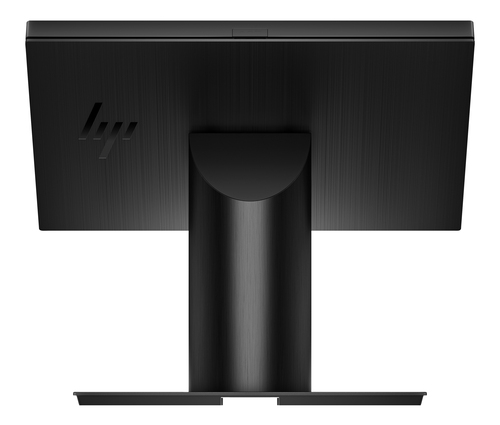

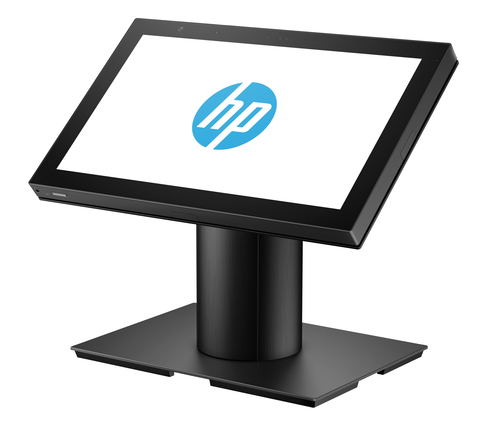

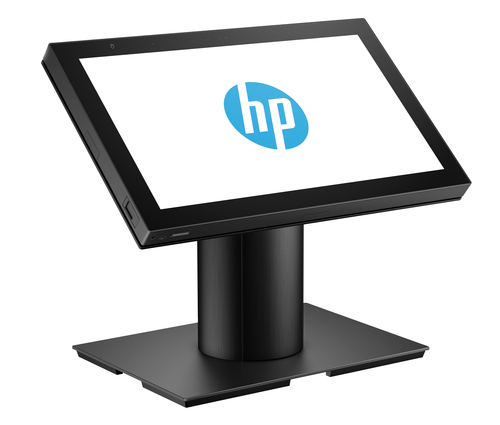

HP Engage One G2

Engage One G2

Model Engage One G2Part no. DY3K5PA

77 specifications

Display39.6 cm (15.6")
Resolution1920 x 1080 pixels
ProcessorIntel Core 3
Memory16 GB
Storage256 GB
ConnectivityWireless

See all specifications

Overview

Display: 39.6 cm (15.6")
Resolution: 1920 x 1080 pixels
Processor: Intel Core 3
Memory: 16 GB
Storage: 256 GB
Connectivity: Wireless

Brand: HP
Category: POS System
Model: Engage One G2
Part numbers: DY3K5PA, DZ1F5PA, E1VF6PA
Also known as: HP Engage One G2 100U All-in-One 39.6 cm (15.6") 1920 x 1080 pixels Touchscreen Ebony

Specifications

77 specifications in 22 groups

Display

Specification	Value
Display diagonal	39.6 cm (15.6")
Display resolution	1920 x 1080 pixels
Touchscreen	Yes
Display type	IPS
Aspect ratio	16:9
Display brightness	350 cd/m²

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Core 3
Processor generation	Intel Core (Series 1)
Processor model	100U
Processor cores	6
Processor threads	8
Processor boost frequency	4.7 GHz
Performance cores	2
Efficient cores	4
Performance-core Max Turbo Frequency	4.7 GHz
Efficient-core Max Turbo Frequency	3.3 GHz
Performance-core base frequency	1.2 GHz
Efficient-core base frequency	0.9 GHz
Processor cache	10 MB

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	DDR5-SDRAM
Number of memory slots	2
Memory slots type	SO-DIMM
Memory clock speed	5600 MHz

Storage

Specification	Value
Total storage capacity	256 GB
Storage media	SSD
Number of storage drives supported	2
NVMe	Yes
SSD capacity	256 GB
SSD interface	PCI Express
SSD form factor	M.2
Flash memory	256 GB

Graphics

Specification	Value
Graphics card manufacturer	Intel
Graphics card	UHD Graphics

Features

Specification	Value
Certification	TCO Certified, Edge
Country of origin	China

Multimedia

Specification	Value
Built-in speaker(s)	Yes
Audio system	Integrated HD audio with Realtek ALC3247 codec, internal speakers and stereo headphone jack, 2W

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	1000 Mbit/s
Bluetooth	Yes
Supported protocols	PCIe; NVMe; DisplayPort; USB Power Delivery
Wi-Fi	Yes
Wi-Fi standards	Wi-Fi 7 (802.11be)

Ports & interfaces

Specification	Value
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	5
Powered USB	Yes
Line-out	Yes

Design

Specification	Value
Chassis type	All-in-One
Product colour	Ebony

Performance

Specification	Value
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0

Software

Specification	Value
Operating system installed	FreeDOS
Bundled software	HP System Software Manager (SSM); HP Image Assistant; HP Client Security Manager; HP Notifications; Touchpoint Customizer for Commercial; HSA Fusion for Commercial; HSA Telemetry for Commercial; HP PC Hardware Diagnostics UEFI; HP Support Assistant

Power

Specification	Value
Power supply	280 W
Power management	Yes

Operational conditions

Specification	Value
Operating relative humidity (H-H)	20 - 85%
Operating temperature (T-T)	10 - 40 °C
Operating temperature (T-T)	50 - 104 °F
Relative humidity	20 - 85%

Ergonomics

Specification	Value
Internal drive bays	Two M.2

Scanning

Specification	Value
Connectivity technology	Wireless

Weight & dimensions

Specification	Value
Width	234 mm
Depth	373 mm
Height	17.5 mm
Width (with stand)	330 mm
Depth (with stand)	373 mm
Height (with stand)	220 mm

Packaging data

Specification	Value
Quantity per pack	1 pc(s)

Packaging content

Specification	Value
Barcode reader	Yes
Power adapter included	Yes

Security

Specification	Value
Cable lock slot	Yes
Security features	TPM 2.0; HP Tamper Lock; HP Sure Run Gen6; HP Sure Start; HP Sure Click; HP BIOSphere Gen6

Sustainability

Specification	Value
Sustainability certificates	TCO
Sustainable technologies and materials	Low halogen; 25% ITE closed-loop plastic; 75% post-consumer recycled plastic; 80% recycled aluminum

Technical details

Specification	Value
Recycling codes	ALU (Aluminium)
Statement of conformance & platform certificate included	Yes
