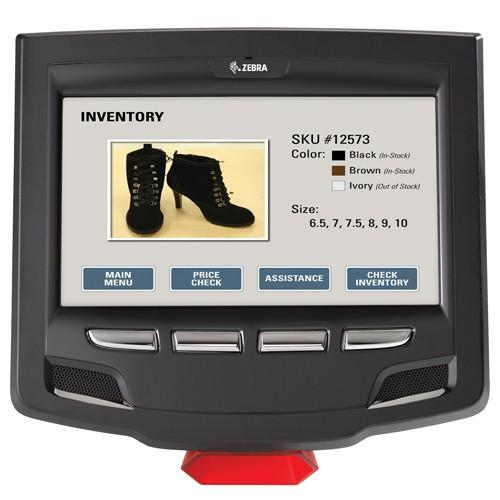

MK3100 TI OMAP4
1 GHz 20.3 cm (8") 800 x 480 pixels Touchscreen Black
Model MK3100Part no. MK3100030BG4EZZWWEAN 783555111512
32 specifications
- Display20.3 cm (8")
- Resolution800 x 480 pixels
- ProcessorTexas Instruments
- Memory1 GB
- Storage8 GB
- OSWindows Embedded POSReady 7
Overview
- Display
- 20.3 cm (8")
- Resolution
- 800 x 480 pixels
- Processor
- Texas Instruments
- Memory
- 1 GB
- Storage
- 8 GB
- OS
- Windows Embedded POSReady 7
- Brand
- Zebra
- Category
- POS System
- Model
- MK3100
- Part number
- MK3100030BG4EZZWW
- EAN / UPC
- 783555111512, 5712505008416
- Also known as
- Zebra MK3100 TI OMAP4 1 GHz 20.3 cm (8") 800 x 480 pixels Touchscreen Black
Specifications
32 specifications in 13 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 20.3 cm (8") |
| Display resolution | 800 x 480 pixels |
| Touchscreen | Yes |
| Touchscreen technology | Resistive |
Processor
| Specification | Value |
|---|---|
| Processor family | Texas Instruments |
| Processor model | TI OMAP4 |
| Processor frequency | 1 GHz |
Memory
| Specification | Value |
|---|---|
| Internal memory | 1 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 8 GB |
| Storage media | Flash |
Features
| Specification | Value |
|---|---|
| Certification | EN 301 489-1, EN 301 489-17, EN 55022, FCC Part 15 Class B, ICES 003 Class B, EN 55024, EN 61000-3-2, EN 61000-3-3, AS/NZS 4268:2008, Japan VCCI |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Line-out | Yes |
| DC-in jack | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows Embedded POSReady 7 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating temperature (T-T) | 32 - 104 °F |
| Relative humidity | 5 - 85% |
| Storage temperature (T-T) | -40 - 70 °C |
Ergonomics
| Specification | Value |
|---|---|
| Wall mountable | Yes |
| Panel mounting interface | 100 x 100 mm |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 225 mm |
| Depth | 55 mm |
| Height | 225 mm |
| Weight | 860 g |
