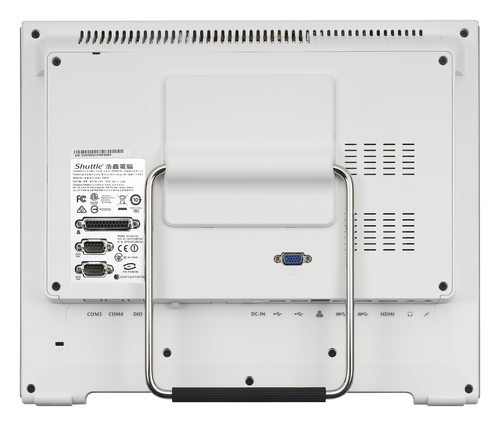

Touch PC System POS X5050PA (white)
Model Touch PC System POS X5050PA (white)Part no. X5050PA (WHITE)EAN 4046047103096
62 specifications
- Display39.6 cm (15.6")
- Resolution1366 x 768 pixels
- ProcessorIntel® Celeron®
- Memory4 GB
- Storage120 GB
- OSWindows Embedded POSReady 7
Overview
- Display
- 39.6 cm (15.6")
- Resolution
- 1366 x 768 pixels
- Processor
- Intel® Celeron®
- Memory
- 4 GB
- Storage
- 120 GB
- OS
- Windows Embedded POSReady 7
- Brand
- Shuttle
- Category
- POS System
- Model
- Touch PC System POS X5050PA (white)
- Part number
- X5050PA (WHITE)
- EAN / UPC
- 4046047103096
- Also known as
- Shuttle Touch PC System POS X5050PA (white) 3855U 1.6 GHz All-in-One 39.6 cm (15.6") 1366 x 768 pixels Touchscreen
Specifications
62 specifications in 18 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 39.6 cm (15.6") |
| Display resolution | 1366 x 768 pixels |
| Touchscreen | Yes |
| Aspect ratio | 16:9 |
| Display brightness | 220 cd/m² |
| Touchscreen technology | Resistive |
Processor
| Specification | Value |
|---|---|
| Processor family | Intel® Celeron® |
| Processor model | 3855U |
| Processor cores | 2 |
| Processor threads | 2 |
| Processor frequency | 1.6 GHz |
| Processor cache | 2 MB |
Memory
| Specification | Value |
|---|---|
| Internal memory | 4 GB |
| Internal memory type | DDR3L-SDRAM |
| Maximum internal memory | 16 GB |
| Memory slots type | SO-DIMM |
| Memory clock speed | 1600 MHz |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 120 GB |
| Storage media | SSD |
| SSD capacity | 120 GB |
| SSD interface | Serial ATA III |
Graphics
| Specification | Value |
|---|---|
| Graphics card manufacturer | Intel |
| Graphics card | HD Graphics 510 |
Features
| Specification | Value |
|---|---|
| Certification | ETL, CB, BSMI, FCC, CE, BSMI |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| Card reader integrated | Yes |
| Compatible memory cards | SD, SDHC, SDXC |
| Optical drive type | No |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| DisplayPorts quantity | 0 |
| Line-out | Yes |
| Microphone in | Yes |
| Serial ports quantity | 2 |
| DC-in jack | Yes |
Design
| Specification | Value |
|---|---|
| Chassis type | All-in-One |
| Product colour | White |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows Embedded POSReady 7 |
| Operating system architecture | 64-bit |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Power supply | 65 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 35 °C |
Ergonomics
| Specification | Value |
|---|---|
| Wall mountable | Yes |
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 391 mm |
| Depth | 42 mm |
| Height | 327 mm |
| Weight | 3.08 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 4.24 kg |
Security
| Specification | Value |
|---|---|
| Cable lock slot | Yes |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
