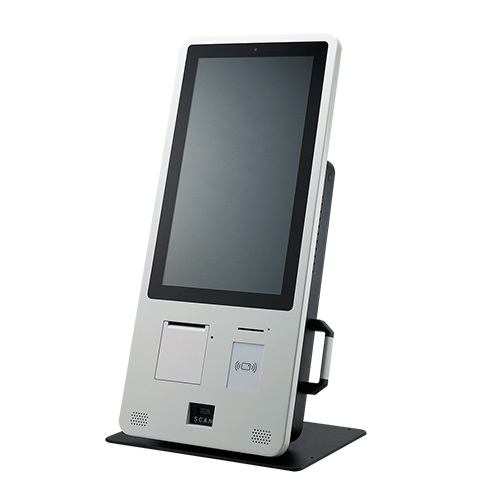

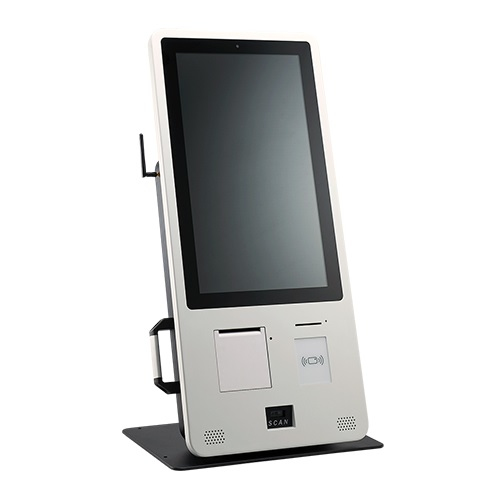

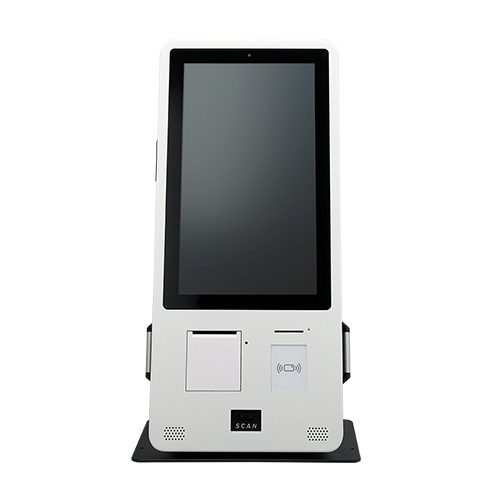

K21WL01 i3-8145UE
2.2 GHz 54.6 cm (21.5") 1920 x 1080 pixels Touchscreen Grey
Model K21WL01Part no. K21WL01-I3
60 specifications
- Display54.6 cm (21.5")
- Resolution1920 x 1080 pixels
- ProcessorIntel® Core™ i3
- Memory4 GB
- Storage128 GB
- Weight35 kg
Overview
- Display
- 54.6 cm (21.5")
- Resolution
- 1920 x 1080 pixels
- Processor
- Intel® Core™ i3
- Memory
- 4 GB
- Storage
- 128 GB
- Weight
- 35 kg
- Brand
- Shuttle
- Category
- POS System
- Model
- K21WL01
- Part number
- K21WL01-I3
- Also known as
- Shuttle K21WL01 i3-8145UE 2.2 GHz 54.6 cm (21.5") 1920 x 1080 pixels Touchscreen Grey
Specifications
60 specifications in 19 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 54.6 cm (21.5") |
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | Yes |
| Contrast ratio (typical) | 1000:1 |
| Display brightness | 300 cd/m² |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i3 |
| Processor generation | 8th gen Intel® Core™ i3 |
| Processor model | i3-8145UE |
| Processor cores | 2 |
| Processor threads | 4 |
| Processor frequency | 2.2 GHz |
| Processor cache | 4 MB |
| System bus rate | 4 GT/s |
Memory
| Specification | Value |
|---|---|
| Internal memory | 4 GB |
| Internal memory type | DDR4-SDRAM |
| Maximum internal memory | 32 GB |
| Number of memory slots | 2 |
| Memory clock speed | 2666 MHz |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 128 GB |
| Storage media | SSD |
| Number of storage drives supported | 2 |
| SSD capacity | 128 GB |
Graphics
| Specification | Value |
|---|---|
| Graphics card manufacturer | Intel |
| Graphics card | UHD Graphics 620 |
Features
| Specification | Value |
|---|---|
| Certification | CE, FCC, cTUVus, CB |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| Card reader integrated | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| RS-232 ports | 1 |
Design
| Specification | Value |
|---|---|
| Product colour | Grey |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10 |
| Linux operating systems supported | Yes |
Power
| Specification | Value |
|---|---|
| AC adapter output voltage | 19 V |
| Power supply | 90 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 20 - 80% |
| Operating temperature (T-T) | 0 - 35 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Ergonomics
| Specification | Value |
|---|---|
| Internal drive bays | 1 |
Printing
| Specification | Value |
|---|---|
| Print technology | Thermal transfer |
| Print speed | 200 mm/sec |
| Built-in barcodes | 1D, 2D |
Scanning
| Specification | Value |
|---|---|
| Scanner type | 1D/2D |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 370 mm |
| Depth | 310 mm |
| Height | 825 mm |
| Weight | 35 kg |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
| POS printer included | Yes |
| Barcode reader | Yes |
| Power adapter included | Yes |
