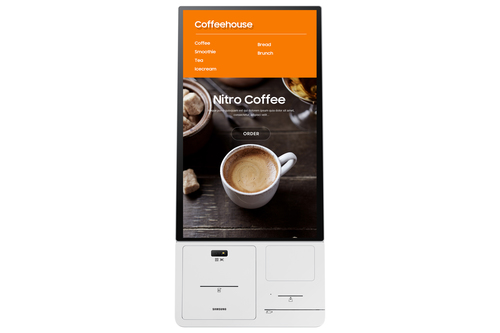

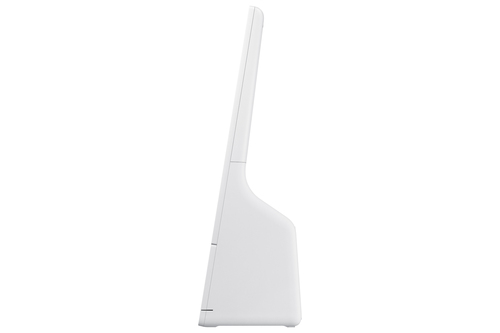

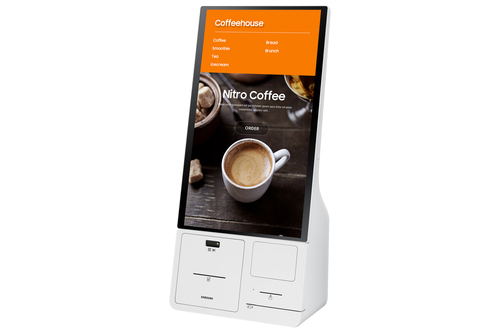

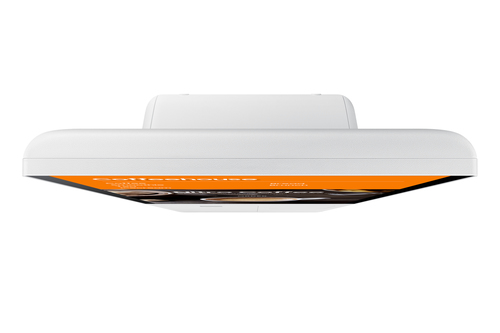

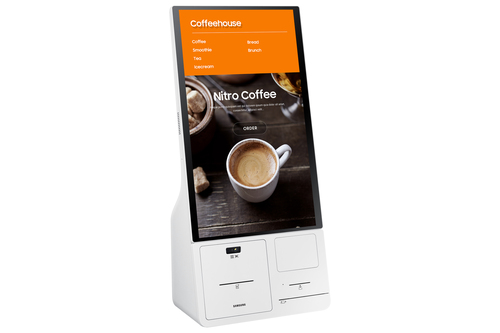

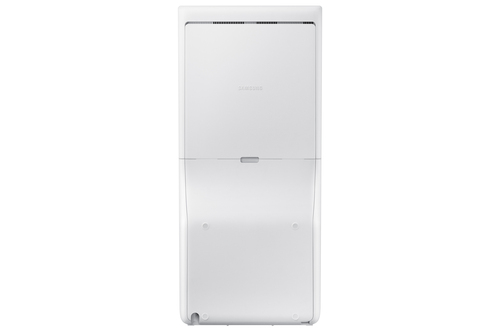

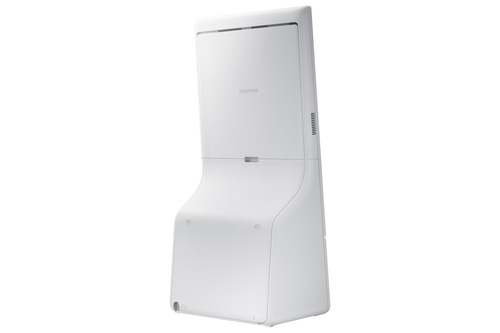

KM24C-P 61 cm (24") Touchscreen
Model KM24C-PPart no. CY-KM24CPXZAEAN 887276551531
33 specifications
- Display61 cm (24")
- Weight7.4 kg
- Ethernet LANYes
- Ethernet LAN (RJ-45) ports1
- AC input voltage100 - 240 V
- Operating temperature (T-T)0 - 40 °C
Overview
- Display
- 61 cm (24")
- Weight
- 7.4 kg
- Ethernet LAN
- Yes
- Ethernet LAN (RJ-45) ports
- 1
- AC input voltage
- 100 - 240 V
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- Samsung
- Category
- POS System
- Model
- KM24C-P
- Part numbers
- CY-KM24CPXZA, CY-KM24CPXEN
- EAN / UPC
- 887276551531, 8806092554900, 8806095479651
- Also known as
- Samsung KM24C-P 61 cm (24") Touchscreen
Specifications
33 specifications in 11 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 61 cm (24") |
| Touchscreen | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Bluetooth | No |
| Wi-Fi | No |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 3 |
| RS-232 ports | 3 |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (typical) | 25 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | 10 - 80 °C |
Ergonomics
| Specification | Value |
|---|---|
| VESA mounting | Yes |
| Panel mounting interface | 200 x 200 mm |
Printing
| Specification | Value |
|---|---|
| Print technology | Thermal transfer |
| Print speed | 250 mm/sec |
| Maximum printing width | 8.3 cm |
| Printing media thickness | 120 µm |
| Maximum roll diameter | 8 cm |
| Built-in barcodes | CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 93, EAN13, EAN8, GS1 DataBar, Interleaved 2/5, QR Code, UPC-A, UPC-C |
| Autocutter | Yes |
Scanning
| Specification | Value |
|---|---|
| Scanner type | 1D/2D |
| Linear (1D) barcodes supported | Codabar, Code 128, Code 39 (ASCII), Code 93, EAN-13, EAN-8, GS1 DataBar, Interleaved 2 of 5, UPC-A, UPC-E |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 334.4 mm |
| Depth | 236.5 mm |
| Height | 389.6 mm |
| Weight | 7.4 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 428 mm |
| Package depth | 316 mm |
| Package height | 471 mm |
| Package weight | 9.1 kg |
Packaging content
| Specification | Value |
|---|---|
| Barcode reader | Yes |
