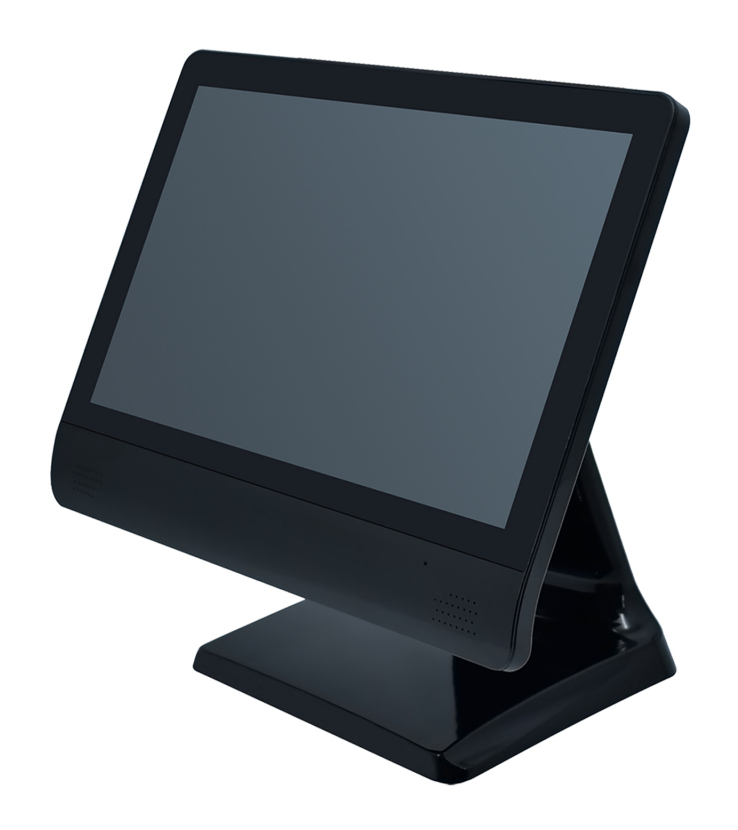

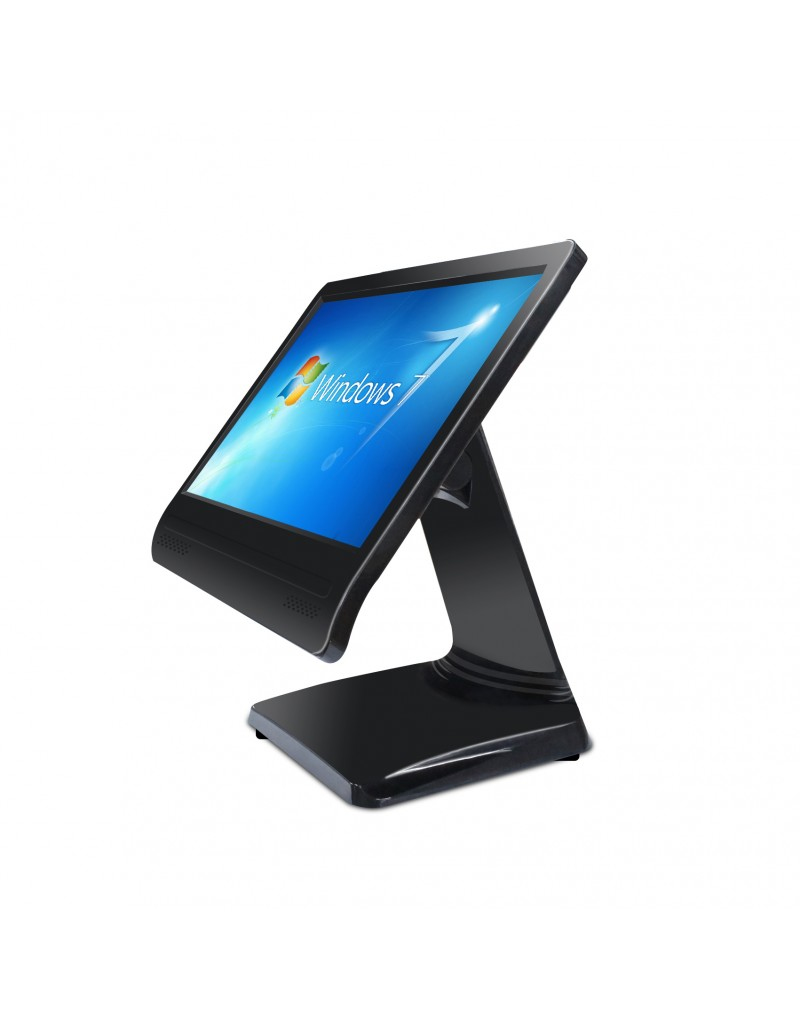

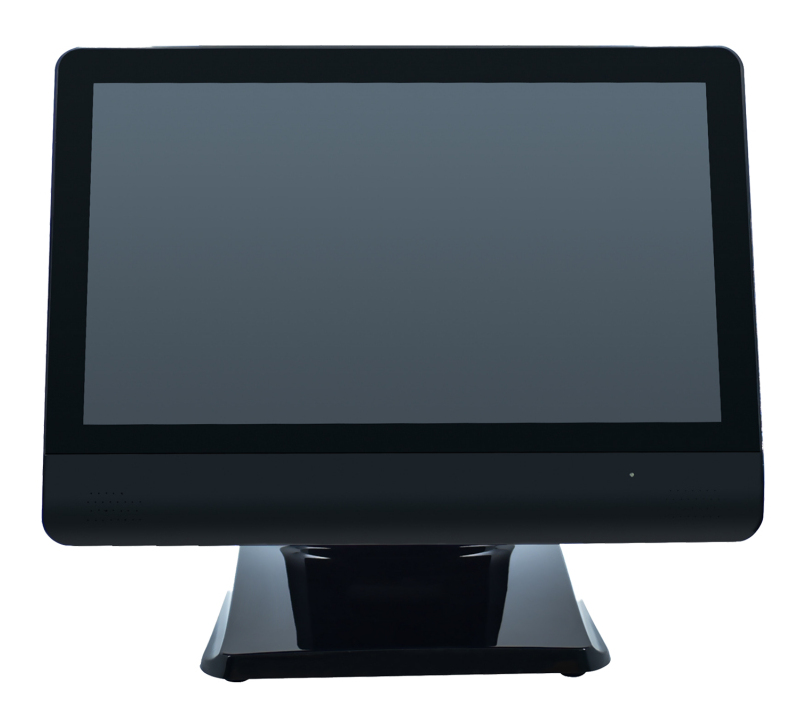

KT-90 I5 WIN IOT
Model KT-90 I5 WIN IOTPart no. TPVC156I5256890WIOTEAN 8437019184629
42 specifications
- Display39.6 cm (15.6")
- Resolution1366 x 768 pixels
- ProcessorIntel® Core™ i5
- Memory8 GB
- Storage256 GB
- OSWindows 10 LTSC Enterprise
Overview
- Display
- 39.6 cm (15.6")
- Resolution
- 1366 x 768 pixels
- Processor
- Intel® Core™ i5
- Memory
- 8 GB
- Storage
- 256 GB
- OS
- Windows 10 LTSC Enterprise
- Brand
- Premier
- Category
- POS System
- Model
- KT-90 I5 WIN IOT
- Part number
- TPVC156I5256890WIOT
- EAN / UPC
- 8437019184629
- Also known as
- Premier KT-90 I5 WIN IOT i5-4200U 1.7 GHz All-in-One 39.6 cm (15.6") 1366 x 768 pixels Touchscreen Black
Specifications
42 specifications in 12 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 39.6 cm (15.6") |
| Display resolution | 1366 x 768 pixels |
| Touchscreen | Yes |
| Display type | LCD |
| Aspect ratio | 16:9 |
| Touchscreen technology | Capacitive |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor generation | 4th gen Intel® Core™ i5 |
| Processor model | i5-4200U |
| Processor cores | 4 |
| Processor frequency | 1.7 GHz |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Internal memory type | DDR3-SDRAM |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 256 GB |
| Storage media | SSD |
| SSD interface | M-SATA |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |

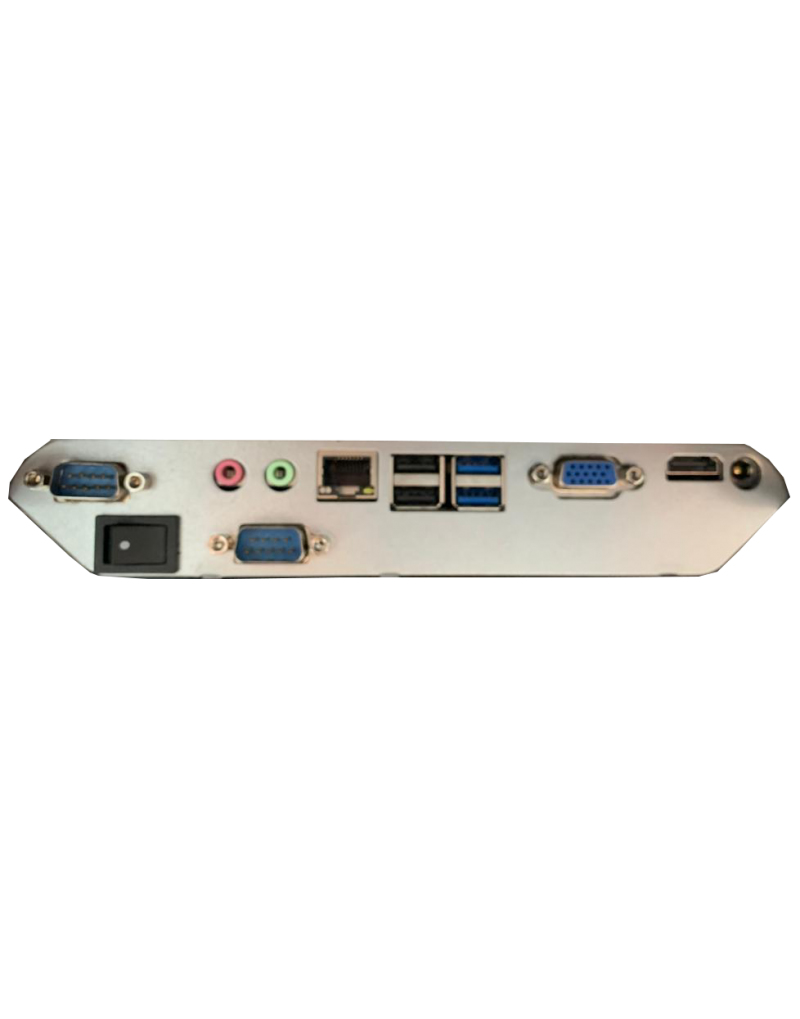

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 5 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Line-in | Yes |
| Line-out | Yes |
| Serial ports quantity | 2 |
| DC-in jack | Yes |
Design
| Specification | Value |
|---|---|
| Chassis type | All-in-One |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 LTSC Enterprise |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8 |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC adapter output voltage | 12 V |
| AC adapter output current | 5 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 460 mm |
| Depth | 265 mm |
| Height | 415 mm |
| Weight | 5.85 kg |
