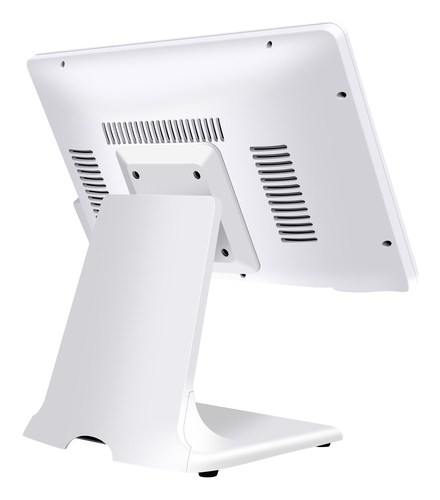

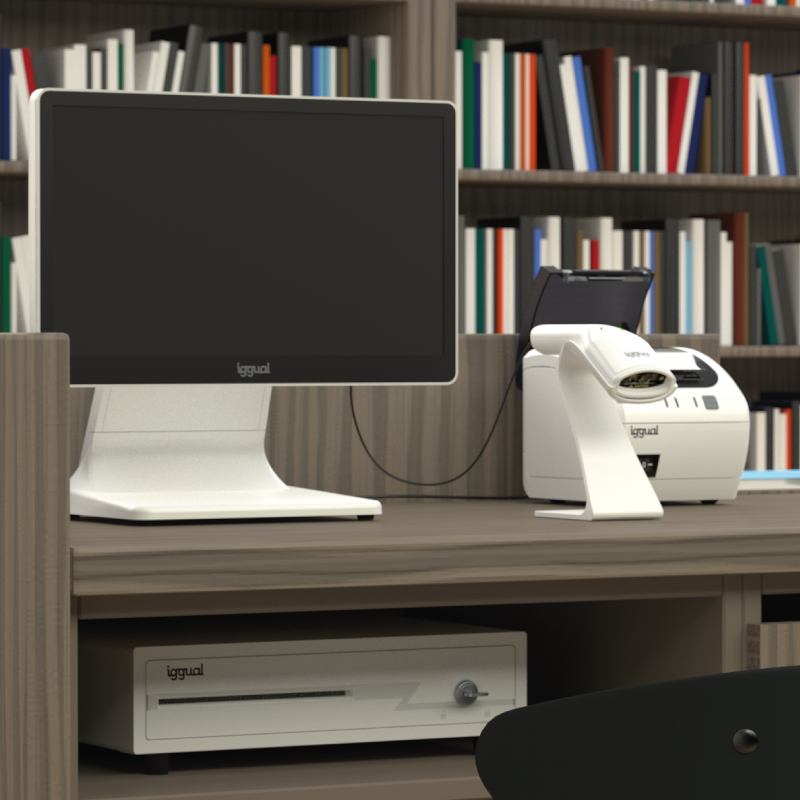

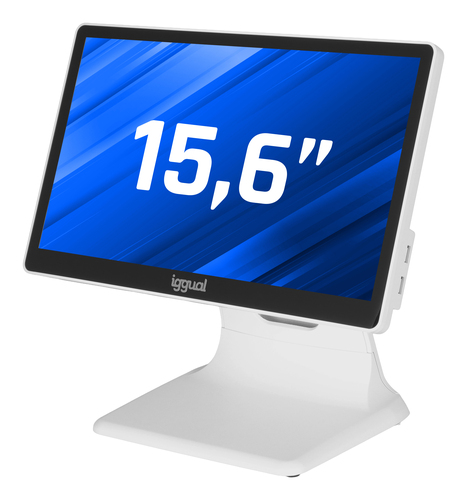

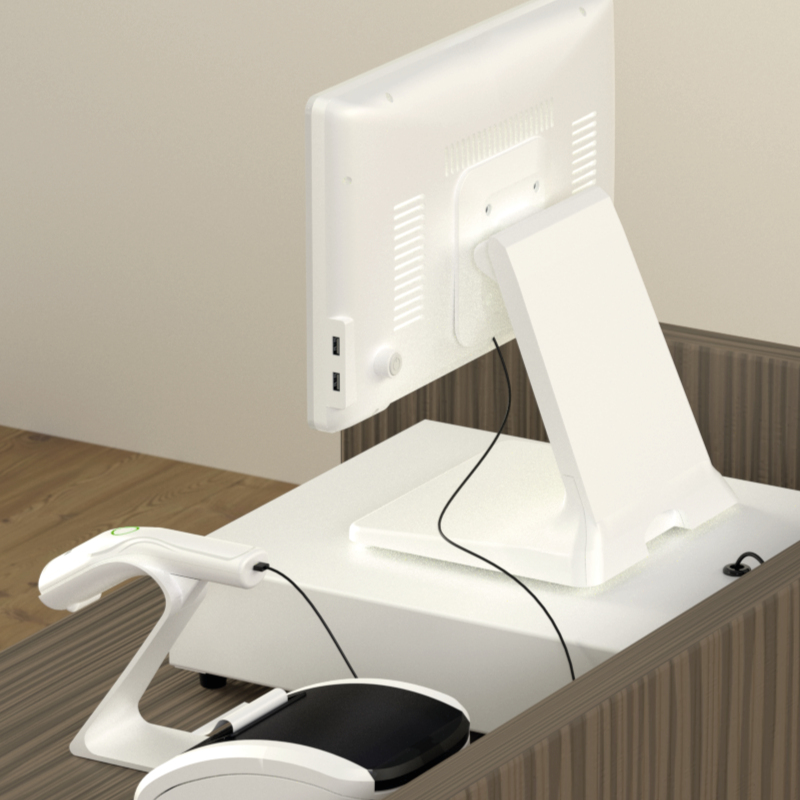

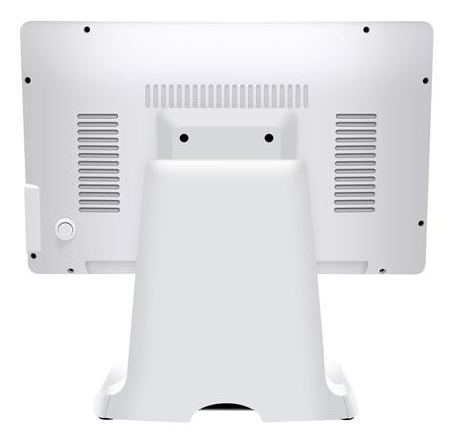

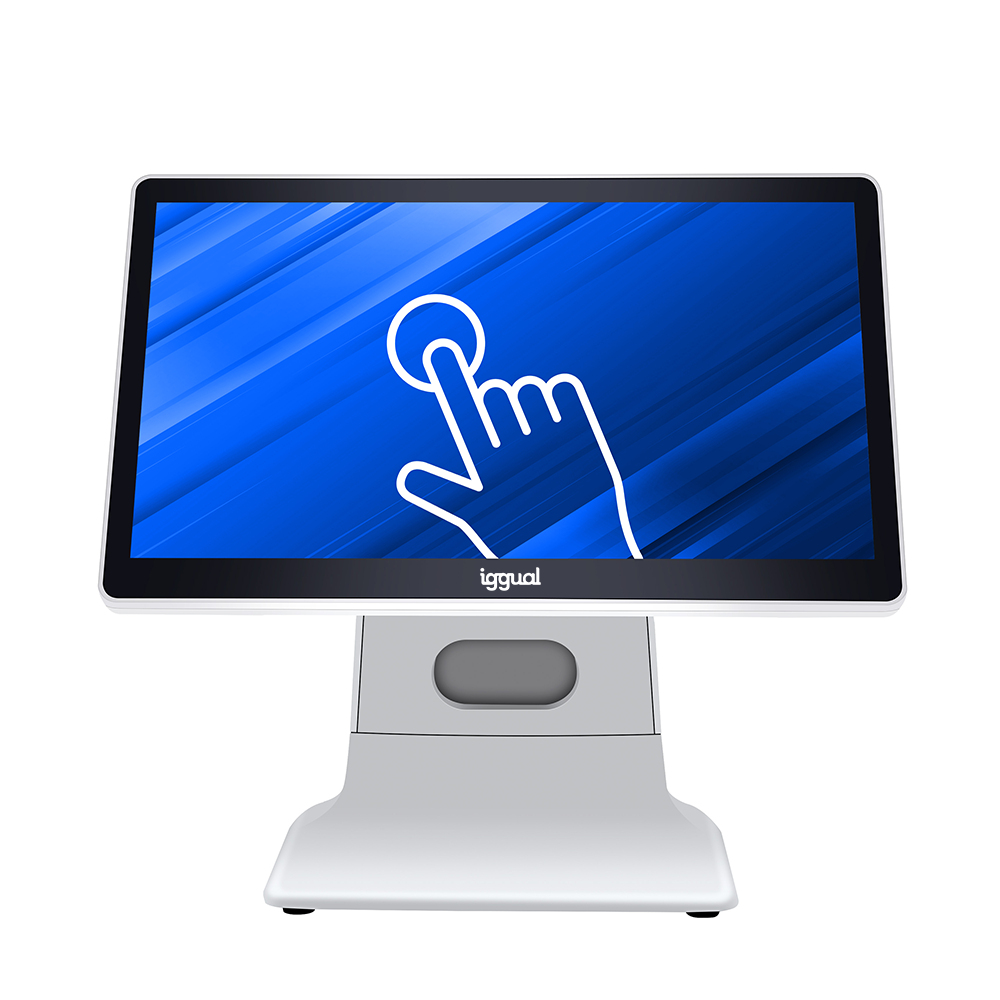

AIO W156.88.N100
Model AIO W156.88.N100Part no. IGG320174EAN 8435364320174
57 specifications
- Display39.6 cm (15.6")
- Resolution1920 x 1080 pixels
- ProcessorIntel® N
- Memory8 GB
- Storage256 GB
- OSWindows 11 Pro
Overview
- Display
- 39.6 cm (15.6")
- Resolution
- 1920 x 1080 pixels
- Processor
- Intel® N
- Memory
- 8 GB
- Storage
- 256 GB
- OS
- Windows 11 Pro
- Brand
- iggual
- Category
- POS System
- Model
- AIO W156.88.N100
- Part number
- IGG320174
- EAN / UPC
- 8435364320174
- Also known as
- iggual AIO W156.88.N100 3.4 GHz All-in-One 39.6 cm (15.6") 1920 x 1080 pixels Touchscreen White
Specifications
57 specifications in 14 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 39.6 cm (15.6") |
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | Yes |
| Display type | LCD |
| Aspect ratio | 16:9 |
| Contrast ratio (typical) | 1200:1 |
| Display brightness | 300 cd/m² |
| Response time | 5 ms |
| Touchscreen technology | Capacitive |
| Viewing angle, horizontal | 89° |
| Viewing angle, vertical | 89° |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® N |
| Processor model | N100 |
| Processor frequency | 3.4 GHz |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 3200 MHz |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 256 GB |
| Storage media | SSD |
| SSD interface | mSATA |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 1000 Mbit/s |
| Bluetooth | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Line-in | Yes |
| Line-out | Yes |
| RS-232 ports | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | All-in-One |
| Product colour | White |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 11 Pro |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| AC adapter output voltage | 12 V |
| AC adapter output current | 5 A |
| Power consumption (typical) | 60 W |
Ergonomics
| Specification | Value |
|---|---|
| Tilt angle range | -5 - 135° |
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 371 mm |
| Depth | 232 mm |
| Height | 343 mm |
| Weight | 5 kg |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 420 mm |
| Package depth | 275 mm |
| Package height | 435 mm |
| Package weight | 5.68 kg |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
