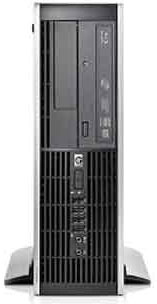

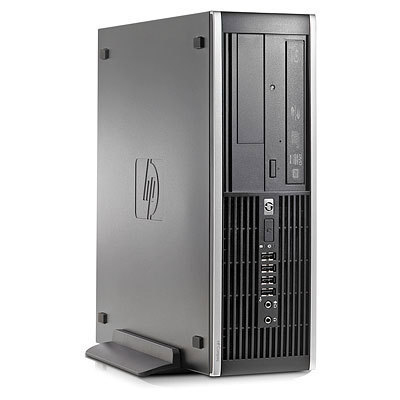

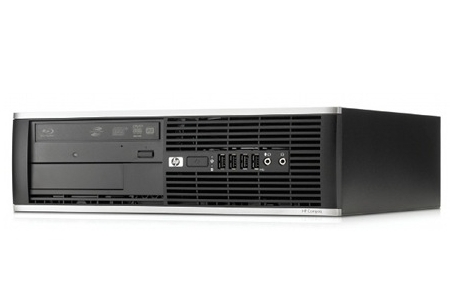

SignagePlayer mp8000r
Model SignagePlayer mp8000rPart no. BW835AWEAN 886111258161
34 specifications
- ProcessorE8400
- Memory2 GB
- Storage320 GB
- OSWindows Embedded Standard 2009
- Weight7.6 kg
- Graphics card manufacturerNVIDIA
Overview
- Processor
- E8400
- Memory
- 2 GB
- Storage
- 320 GB
- OS
- Windows Embedded Standard 2009
- Weight
- 7.6 kg
- Graphics card manufacturer
- NVIDIA
- Brand
- HP
- Category
- POS System
- Model
- SignagePlayer mp8000r
- Part numbers
- BW835AW, BW835AW#ABH
- EAN / UPC
- 886111258161, 885631782125, 885631782132, 885631782149 +8 more
- Also known as
- HP SignagePlayer mp8000r E8400 3 GHz SFF
Specifications
34 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor model | E8400 |
| Processor frequency | 3 GHz |
| Processor cache | 6 MB |
| Processor front side bus | 1333 MHz |
| Motherboard chipset | Intel® Q45 Express |
Memory
| Specification | Value |
|---|---|
| Internal memory | 2 GB |
| Internal memory type | DDR3 SDRAM |
| Maximum internal memory | 4 GB |
| Memory clock speed | 1333 MHz |
Storage
| Specification | Value |
|---|---|
| HDD capacity | 320 GB |
| HDD speed | 7200 RPM |
| Storage drive type | SATA |
Graphics
| Specification | Value |
|---|---|
| Graphics card manufacturer | NVIDIA |
| Graphics card | GeForce 310 |
Multimedia
| Specification | Value |
|---|---|
| Audio system | HD Audio |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 6 |
| VGA (D-Sub) ports quantity | 1 |
| RS-232 ports | 1 |
| PS/2 ports quantity | 2 |
| DC-in jack | Yes |
Design
| Specification | Value |
|---|---|
| Chassis type | SFF |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows Embedded Standard 2009 |
Power
| Specification | Value |
|---|---|
| Power supply | 240 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 10 - 35 °C |
| Operating temperature (T-T) | 50 - 95 °F |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 7.6 kg |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 338 x 378.5 x 100 mm |
| Memory slots | 4 DIMM |
| Networking features | Gigabit Ethernet |
| Size (imperial) | 33.8 cm (13.3") |
| I/O ports | 1 x DisplayPort |
