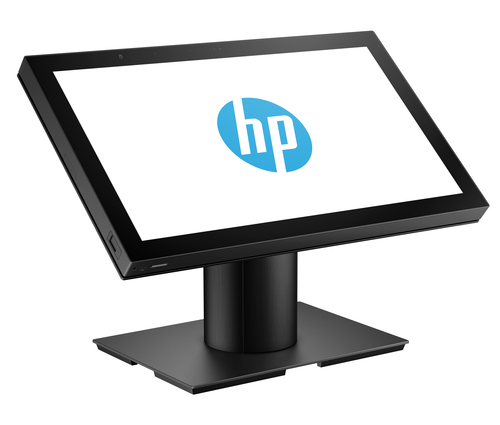

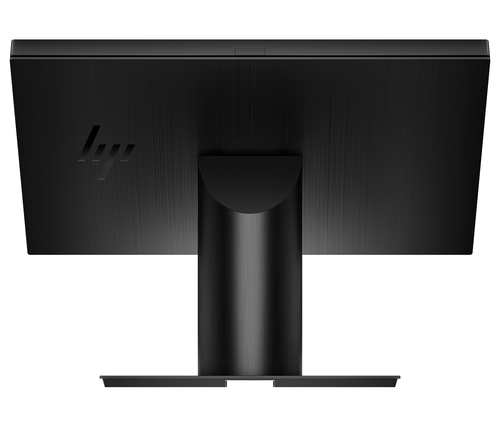

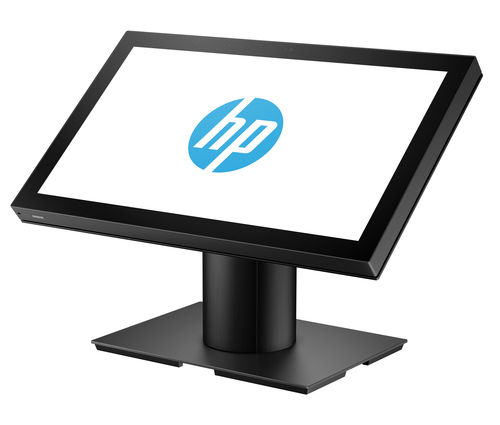

Engage One Pro G2 AiO System
Model Engage One Pro G2 AiO SystemPart no. CV3B9EC
51 specifications
- Display60.5 cm (23.8")
- Resolution1920 x 1080 pixels
- ProcessorIntel® Core™ i5
- Memory16 GB
- Storage512 GB
- OSWindows 11 Pro
Overview
- Display
- 60.5 cm (23.8")
- Resolution
- 1920 x 1080 pixels
- Processor
- Intel® Core™ i5
- Memory
- 16 GB
- Storage
- 512 GB
- OS
- Windows 11 Pro
- Brand
- HP
- Category
- POS System
- Model
- Engage One Pro G2 AiO System
- Part number
- CV3B9EC
- Also known as
- HP Engage One Pro G2 AiO System i5-14500T All-in-One 60.5 cm (23.8") 1920 x 1080 pixels Touchscreen Black
Specifications
51 specifications in 14 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 60.5 cm (23.8") |
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | Yes |
| Display type | IPS |
| Display brightness | 625 cd/m² |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor model | i5-14500T |
| Processor cores | 14 |
| Processor threads | 20 |
| Processor boost frequency | 4.8 GHz |
| Performance cores | 6 |
| Efficient cores | 8 |
| Performance-core Max Turbo Frequency | 4.8 GHz |
| Efficient-core Max Turbo Frequency | 3.4 GHz |
| Performance-core base frequency | 1.7 GHz |
| Efficient-core base frequency | 1.2 GHz |
| Processor cache | 24 MB |
| Motherboard chipset | Intel Q670E |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Internal memory type | DDR5-SDRAM |
| Maximum internal memory | 64 GB |
| Number of memory slots | 2 |
| Memory slots type | SO-DIMM |
| Memory clock speed | 5600 MHz |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 512 GB |
| Storage media | SSD |
| NVMe | Yes |
| SSD capacity | 512 GB |
| SSD interface | PCI Express |
| SSD form factor | M.2 |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Bluetooth | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 5 |
| Line-out | Yes |
Design
| Specification | Value |
|---|---|
| Chassis type | All-in-One |
| Product colour | Black |
Performance
| Specification | Value |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 11 Pro |
Power
| Specification | Value |
|---|---|
| Power supply | 230 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 20 - 85% |
| Operating temperature (T-T) | 10 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 570.4 mm |
| Depth | 29.4 mm |
| Height | 339.9 mm |
| Weight | 6.8 kg |
Security
| Specification | Value |
|---|---|
| Cable lock slot | Yes |
