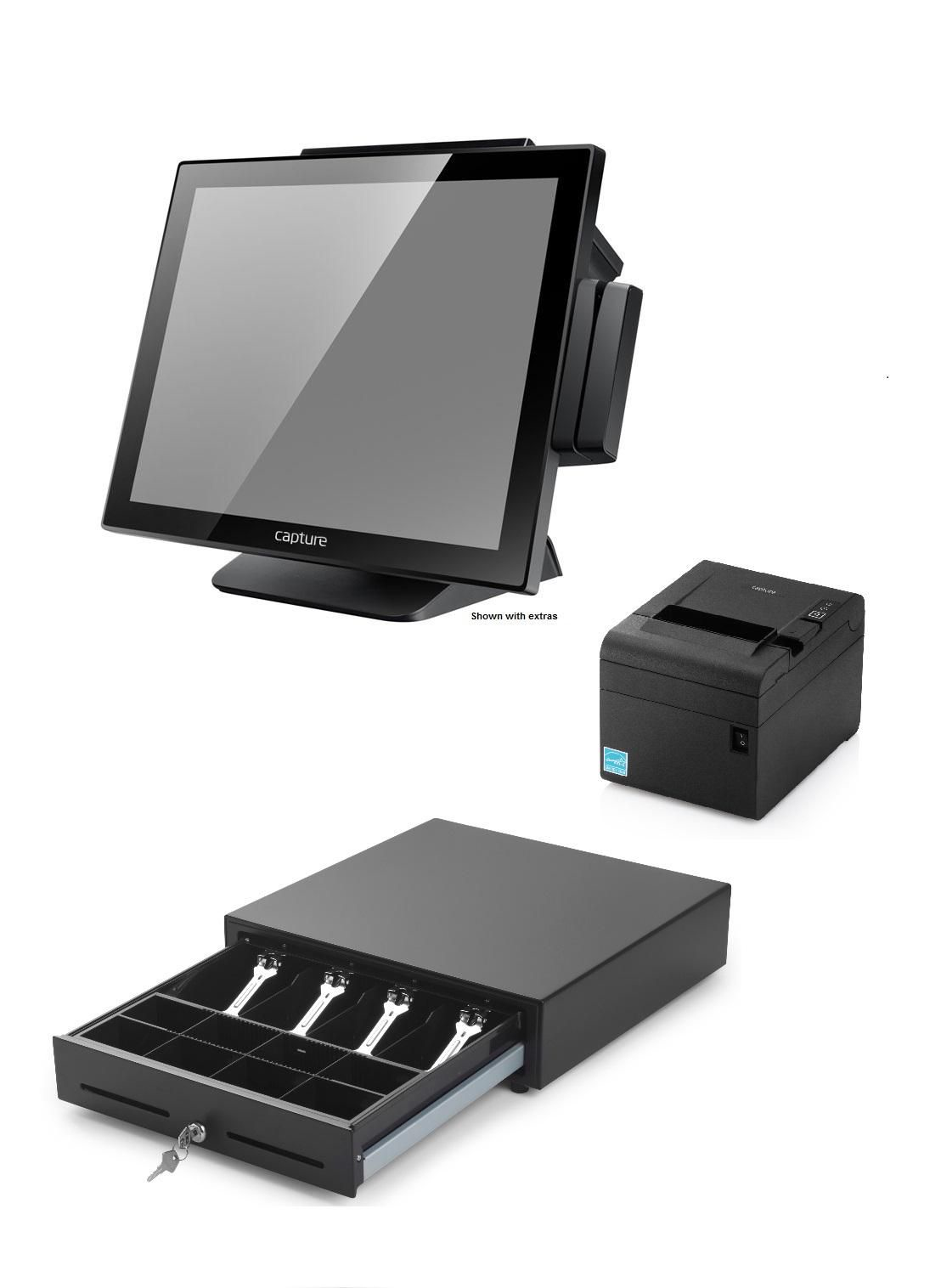

Capture CA-PIB-1 POS system J1900

CA-PIB-1 POS system J1900

2 GHz 38.1 cm (15") 1024 x 768 pixels Touchscreen Black

Model CA-PIB-1EAN 5706998760999

52 specifications

Display38.1 cm (15")
Resolution1024 x 768 pixels
ProcessorIntel® Celeron®
Memory8 GB
Storage128 GB
OSWindows 10 IoT

See all specifications

Overview

Display: 38.1 cm (15")
Resolution: 1024 x 768 pixels
Processor: Intel® Celeron®
Memory: 8 GB
Storage: 128 GB
OS: Windows 10 IoT

Brand: Capture
Category: POS System
Model: CA-PIB-1
Part number: CA-PIB-1
EAN / UPC: 5706998760999
Also known as: Capture CA-PIB-1 POS system J1900 2 GHz 38.1 cm (15") 1024 x 768 pixels Touchscreen Black

Specifications

52 specifications in 16 groups

Display

Specification	Value
Display diagonal	38.1 cm (15")
Display resolution	1024 x 768 pixels
Touchscreen	Yes
Display type	LCD
Display brightness	300 cd/m²
Touchscreen technology	Projected capacitive system

Processor

Specification	Value
Processor family	Intel® Celeron®
Processor model	J1900
Processor frequency	2 GHz
Processor cache	2 MB

Memory

Specification	Value
Internal memory	8 GB
Internal memory type	DDR3L-SDRAM
Memory slots type	SO-DIMM
Memory clock speed	1333 MHz

Storage

Specification	Value
Total storage capacity	128 GB
Storage media type	SSD

Graphics

Specification	Value
Graphics card manufacturer	Intel
Graphics card	HD Graphics

Features

Specification	Value
Certification	CE, FCC, WEEE, RoHS

Multimedia

Specification	Value
Built-in speaker(s)	Yes

Network

Specification	Value
Ethernet LAN	Yes

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	5
VGA (D-Sub) ports quantity	1
Serial ports quantity	6
Parallel ports quantity	1
RJ-11 ports quantity	1

Design

Specification	Value
Product colour	Black
Built-in cash drawer	Yes
Number of bill trays	4 pc(s)
Number of coin trays	8 pc(s)

Software

Specification	Value
Operating system installed	Windows 10 IoT
Operating system architecture	64-bit

Ergonomics

Specification	Value
Tilt angle range	15 - 85°

Printing

Specification	Value
Print technology	Direct thermal
Print speed	220 mm/sec
Print resolution	180 x 180 DPI
Autocutter	Yes

Weight & dimensions

Specification	Value
Width	510 mm
Depth	650 mm
Height	510 mm
Weight	16.3 kg
Printer dimensions (W x D x H)	125 x 132 x 182 mm
Printer weight	1.3 kg
Cash drawer width	41 cm
Cash drawer depth	41.5 cm
Cash drawer height	10 cm

Packaging data

Specification	Value
Package width	510 mm
Package depth	650 mm
Package height	510 mm
Package weight	16.7 kg

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR
