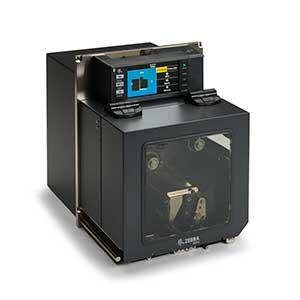

ZE511 203 x 203 DPI Wired Thermal transfer POS printer
Model ZE511Part no. ZE51142-L010000ZEAN 5704174950301
33 specifications
- Memory512 MB
- ConnectivityWired
- TypePOS printer
- Weight14.7 kg
- ColourBlack
- Print technologyThermal transfer
Overview
- Memory
- 512 MB
- Connectivity
- Wired
- Type
- POS printer
- Weight
- 14.7 kg
- Colour
- Black
- Print technology
- Thermal transfer
- Brand
- Zebra
- Category
- POS Printer
- Model
- ZE511
- Part numbers
- ZE51142-L010000Z, ZE51143-L0100A0Z, ZE51143-R010000Z, ZE51143-L0E0000Z, ZE51143-R0E0000Z, ZE51142-R0E0000Z +9 more
- EAN / UPC
- 5704174950301
- Also known as
- Zebra ZE511 203 x 203 DPI Wired Thermal transfer POS printer
Specifications
33 specifications in 9 groups
Printing
| Specification | Value |
|---|---|
| Print technology | Thermal transfer |
| Type | POS printer |
| Maximum resolution | 203 x 203 DPI |
| Number of printable dots | 8 dot |
| Print speed | 457 mm/sec |
Paper handling
| Specification | Value |
|---|---|
| Maximum printing width | 11.4 cm |
| Printing media thickness | 135 - 256 µm |
| Roll core diameter (max) | 2.54 cm |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| USB port | Yes |
| Serial interface | Yes |
| Serial interface type | RS-232 |
| Bluetooth | Yes |
| Bluetooth version | 4.1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
Features
| Specification | Value |
|---|---|
| Built-in barcodes | Code 93, QR Code, Code 11, EAN128, MaxiCode, Code 128 (A/B/C), UPC-A, PDF417, UPC-E |
| Internal memory | 512 MB |
| Storage media | Flash |
| Flash memory | 512 MB |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Built-in display | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| AC input voltage | 90 - 264 V |
| AC input frequency | 47 - 63 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 20 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -40 - 71 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 245 mm |
| Depth | 379 mm |
| Height | 300 mm |
| Weight | 14.7 kg |
