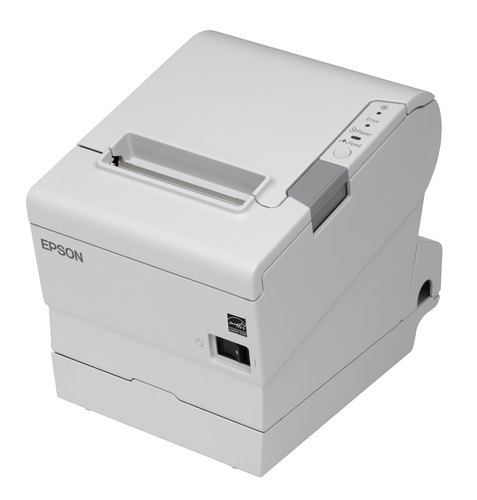

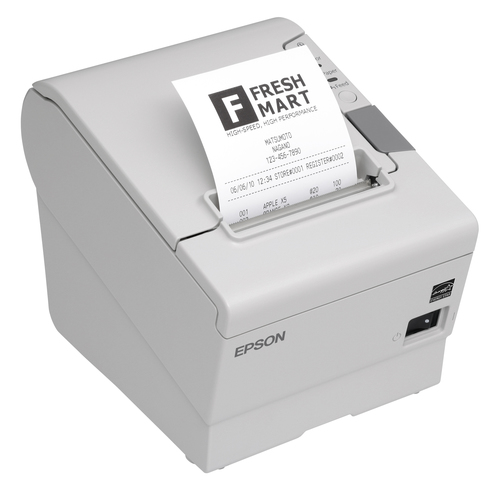

TM-T88V (034)
Model TM-T88V (034)Part no. C31CA85034EAN 8715946638324
68 specifications
- ConnectivityWired
- TypePOS printer
- Weight1.6 kg
- ColourWhite
- Print technologyDirect thermal
- Maximum printing width8 cm
Overview
- Connectivity
- Wired
- Type
- POS printer
- Weight
- 1.6 kg
- Colour
- White
- Print technology
- Direct thermal
- Maximum printing width
- 8 cm
- Brand
- Epson
- Category
- POS Printer
- Model
- TM-T88V (034)
- Part number
- C31CA85034
- EAN / UPC
- 8715946638324
- Also known as
- Epson TM-T88V (034): Serial, w/o PS, ECW
Specifications
68 specifications in 14 groups
Printing
| Specification | Value |
|---|---|
| Print technology | Direct thermal |
| Type | POS printer |
| Maximum resolution | 180 x 180 DPI |
| Print speed | 300 mm/sec |
Paper handling
| Specification | Value |
|---|---|
| Maximum printing width | 8 cm |
| Maximum roll diameter | 8.3 cm |
| Supported paper width | 80 mm |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| USB connector | USB Type-B |
| Serial interface | Yes |
| Serial interface type | RS-232 |
| Interface | USB 2.0, RS-232, Drawer kick-out |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Wi-Fi | No |
Features
| Specification | Value |
|---|---|
| Sound pressure level (printing) | 55 dB |
| Mean time between failures (MTBF) | 360000 h |
| Cutter | Yes |
| Half-cutter | Yes |
| Autocutter durability | 2 million cuts |
| Country of origin | China |
| Mounting position | Horizontal/Vertical |
| Print head life | 150 km |
| Wall mountable | Yes |
| Built-in sensors details | Paper End Sensor, Paper Near End Sensor, Cover Open Sensor |
| Safety | TÜV, GOST-R |
| Certification | CE |
Design
| Specification | Value |
|---|---|
| Product colour | White |
Power
| Specification | Value |
|---|---|
| AC input voltage | 24 V |
| Power consumption | 1800 mA |
| Power consumption (standby) | 100 mA |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 5 - 45 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -10 - 50 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 145 mm |
| Depth | 195 mm |
| Height | 148 mm |
| Weight | 1.6 kg |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 195 mm |
| Package depth | 240 mm |
| Package height | 235 mm |
| Package weight | 1.93 kg |
Print technology
| Specification | Value |
|---|---|
| Column capacity | 56/42 |
Logistics data
| Specification | Value |
|---|---|
| Pallet weight (UK) | 0 g |
| Products per master (outer) case | 4 pc(s) |
| Master (outer) case width | 400 mm |
| Master (outer) case length | 490 mm |
| Master (outer) case height | 255 mm |
| Master (outer) case gross weight | 0 g |
| Products per pallet | 128 pc(s) |
| Products per pallet layer | 16 pc(s) |
| Pallet gross width | 80 cm |
| Pallet gross length | 120 cm |
| Pallet gross height | 15 cm |
| Pallet gross weight | 0 g |
| Products per pallet (UK) | 192 pc(s) |
| Products per pallet layer (UK) | 24 pc(s) |
| Pallet width (UK) | 100 cm |
| Pallet length (UK) | 120 cm |
| Pallet height (UK) | 15 cm |
Technical details
| Specification | Value |
|---|---|
| Box contents | 58-mm width paper guide plate, Connector Cover, Main unit, Power switch cover, Thermal roll paper, User manual |
| Changeable interface | Yes |
| Lifetime | 20000000 lines |
Other features
| Specification | Value |
|---|---|
| Mean cycles between failures (MCBF) | 70000000 |
| Print head life | 150.000.000 Impulse |
