TM-S9000MJ (122)
Model TM-S9000MJ (122)Part no. A41A267122EAN 8715946521374
71 specifications
- ConnectivityWired
- TypePOS printer
- Weight5 kg
- ColourNo
- Print technologyInkjet
- Maximum media length23.5 cm
Overview
- Connectivity
- Wired
- Type
- POS printer
- Weight
- 5 kg
- Colour
- No
- Print technology
- Inkjet
- Maximum media length
- 23.5 cm
- Brand
- Epson
- Category
- POS Printer
- Model
- TM-S9000MJ (122)
- Part number
- A41A267122
- EAN / UPC
- 8715946521374
- Also known as
- Epson TM-S9000MJ (122): 200DPM, 1Pocket, USB HUB, MSR
Specifications
71 specifications in 15 groups
Printing
| Specification | Value |
|---|---|
| Print technology | Inkjet |
| Type | POS printer |
| Colour | No |
| Maximum resolution | 180 x 180 DPI |
| Print speed | 800 mm/sec |
| Print speed (receipt) | 300 mm/sec |
| Character size | 1.41 x 3.39 mm |
| Character structure | Font A: 12 x 24, Font B: 9 x 17 |
| Characters per line | Font A: 59 - 126, Font B: 78 - 169 (Depends on the paper length) |
| Paper size check | 60 mm - 120 mm (H) x 120 mm - 235 mm (L) |
Paper handling
| Specification | Value |
|---|---|
| Maximum media length | 23.5 cm |
| Maximum printing width | 21.5 cm |
| Supported paper width | 80, 42 / 56 mm |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| USB port | Yes |
| USB 2.0 ports quantity | 3 |
| USB connector | USB Type-A / USB Type-B |
| Interface | USB 2.0, USB 2.0-A (2x) |
| Standard interfaces | USB 2.0 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Wi-Fi | No |
Features
| Specification | Value |
|---|---|
| Autocutter durability | 2 million cuts |
| Country of origin | China |
| Sensor type | CIS |
| Printer receipt unit life | 20000000 lines |
| Safety | TÜV |
| Certification | CE |
Design
| Specification | Value |
|---|---|
| Product colour | Dark Grey |
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source type | USB |
| USB powered | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 20 - 80% |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage relative humidity (H-H) | 5 - 85% |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 250 mm |
| Depth | 264 mm |
| Height | 177 mm |
| Weight | 5 kg |
Packaging data
| Specification | Value |
|---|---|
| Cables included | DC |
| Quantity per pack | 1 pc(s) |
| Package width | 361 mm |
| Package depth | 391 mm |
| Package height | 285 mm |
| Package weight | 7 kg |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
Print quality
| Specification | Value |
|---|---|
| Maximum print height | 5.08 cm |
Logistics data
| Specification | Value |
|---|---|
| Products per pallet | 42 pc(s) |
| Products per pallet layer | 6 pc(s) |
| Pallet gross width | 80 cm |
| Pallet gross length | 120 cm |
| Pallet gross height | 25.5 cm |
| Products per pallet (UK) | 42 pc(s) |
| Products per pallet layer (UK) | 6 pc(s) |
| Pallet width (UK) | 100 cm |
| Pallet length (UK) | 120 cm |
| Pallet height (UK) | 25.5 cm |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE |
| Connector(s) | D.K.D. function (2 drivers) |
| Media weight (tray 1) | 60 g/m2 - 120 g/m2 |
| Voltage | 24 V |

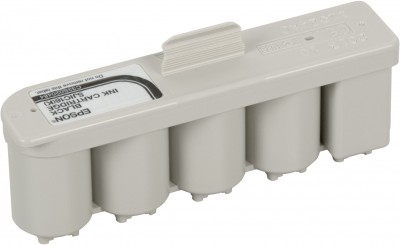

| Box contents | 2 x Ink cartridge, AC adapter, J, Power cable, Thermal roll paper, USB cable, User manual |
| Data format | Grey scale: TIFF, JPEG, BMP, Raster, Black and White: TIFF, BMP, 24-bit colour: TIFF, JPEG, BMP, IR (infrared ray): Same as Black and White, Greyscale |
| Document size | 120 mm - 235 mm (L) x 60 mm - 120 mm (H) |
| Paper size roll paper | 79.50 ± 0.50 (W) mm x dia 83.00 mm |
Other features
| Specification | Value |
|---|---|
| Endorsement printing | Yes |
| LED indicators | Yes |
| Mean cycles between failures (MCBF) | 96000000 |
| Media types supported | Normal paper, Check cards, ID cards |
| Pocket capacities | ASF:100 Sheets, Main pocket:100 Sheets |
| Print head life (receipt unit) | 150 km - 150,000,000 pulses |
