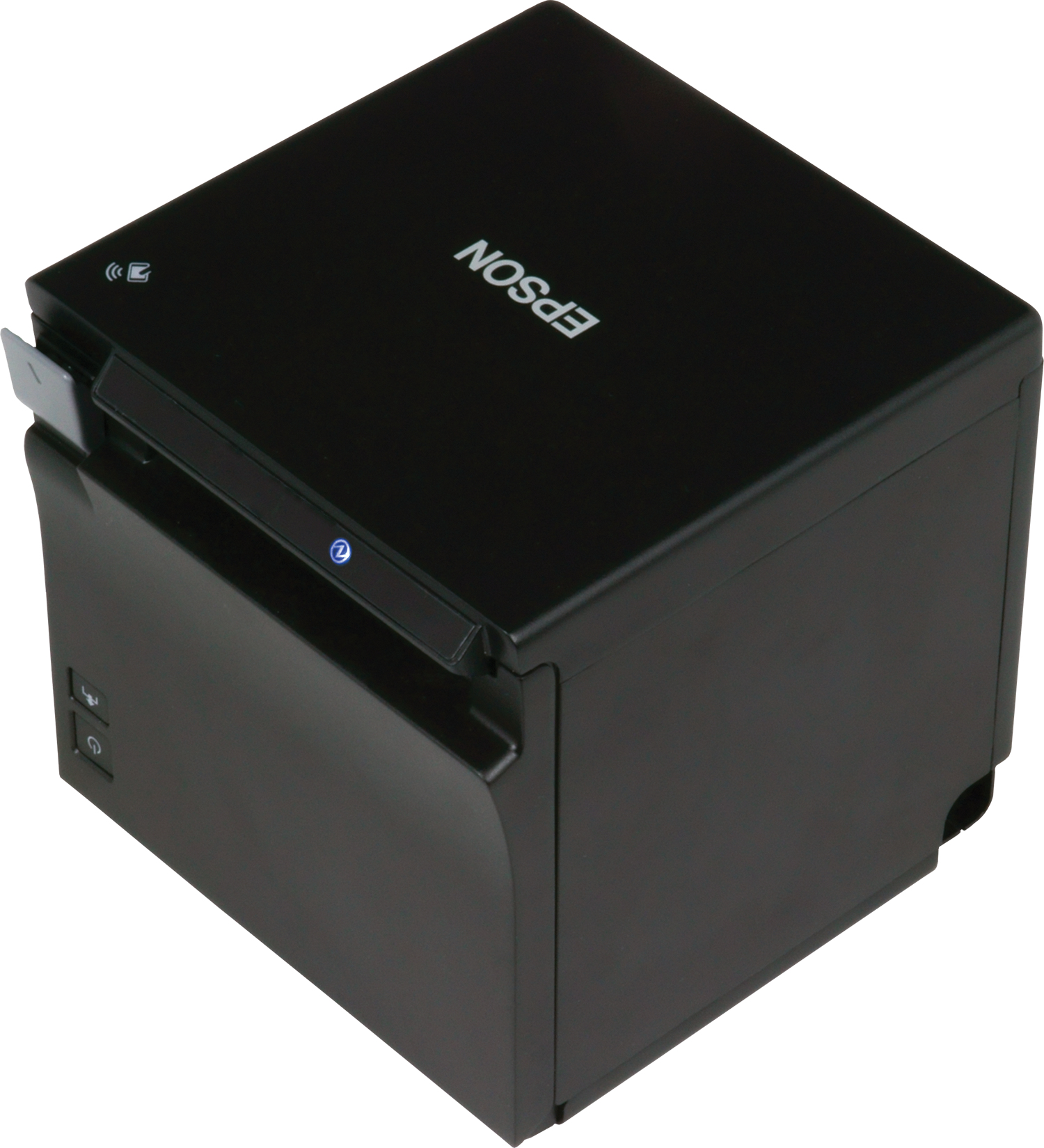

TM-m30II (112)
Model TM-m30II (112)Part no. C31CJ27112EAN 8715946685069
68 specifications
- ConnectivityWired & Wireless
- TypePOS printer
- Weight1.3 kg
- ColourWhite
- Print technologyThermal
- Maximum media length7.95 cm
Overview
- Connectivity
- Wired & Wireless
- Type
- POS printer
- Weight
- 1.3 kg
- Colour
- White
- Print technology
- Thermal
- Maximum media length
- 7.95 cm
- Brand
- Epson
- Category
- POS Printer
- Model
- TM-m30II (112)
- Part number
- C31CJ27112
- EAN / UPC
- 8715946685069
- Also known as
- Epson TM-m30II (112): USB + Ethernet + NES + BT, Black, PS, EU
Specifications
68 specifications in 16 groups
Printing
| Specification | Value |
|---|---|
| Print technology | Thermal |
| Type | POS printer |
| Maximum resolution | 203 x 203 DPI |
| Print speed | 250 mm/sec |
| Print speed (receipt) | 250 mm/sec |
| Printing characters | Text, Graphic, Barcode |
| Character sets | ANK |
Paper handling
| Specification | Value |
|---|---|
| Maximum media length | 7.95 cm |
| Maximum roll diameter | 8.3 cm |
| Supported paper width | 80, 48 / 57 mm |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired & Wireless |
| USB port | Yes |
| USB 2.0 ports quantity | 2 |
| USB connector | USB Type-A / USB Type-B |
| Bluetooth | Yes |
| Near Field Communication (NFC) | Yes |
| Interface | Ethernet interface (100 Base-TX / 10 Base-T), Bluetooth, USB 2.0, USB 2.0-A, Drawer kick-out, USB 1.0 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Wi-Fi | No |
Features
| Specification | Value |
|---|---|
| Sound pressure level (printing) | 55 dB |
| Mean time between failures (MTBF) | 350000 h |
| Cutter | Yes |
| Half-cutter | Yes |
| Autocutter durability | 1.5 million cuts |
| Country of origin | Philippines |
| Mounting position | Horizontal/Vertical |
| Print head life | 150 km |
| Wall mountable | Yes |
| Built-in sensors details | Paper End Sensor, Paper Near End Sensor, Paper sensor |
Design
| Specification | Value |
|---|---|
| Product colour | White |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| Power plug type | Type C |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 5 - 45 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -20 - 60 °C |
System requirements
| Specification | Value |
|---|---|
| Pre-installed software | Server Direct Print, ePOS-Device®, ePOS-Display, ePOS-Print® |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 127 mm |
| Depth | 127 mm |
| Height | 127 mm |
| Weight | 1.3 kg |
Packaging data
| Specification | Value |
|---|---|
| Cables included | AC |
| Quantity per pack | 1 pc(s) |
| Package width | 195 mm |
| Package depth | 235 mm |
| Package height | 235 mm |
| Package weight | 2.3 kg |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
Print technology
| Specification | Value |
|---|---|
| Column capacity | 48/57 |
Logistics data
| Specification | Value |
|---|---|
| Pallet weight (UK) | 0 g |
| Harmonized System (HS) code | 84433210 |
| Products per master (outer) case | 4 pc(s) |
| Master (outer) case width | 400 mm |
| Master (outer) case length | 490 mm |
| Master (outer) case height | 255 mm |
| Master (outer) case gross weight | 0 g |
| Products per pallet | 128 pc(s) |
| Pallet gross weight | 0 g |
| Products per pallet (UK) | 192 pc(s) |
Technical details
| Specification | Value |
|---|---|
| Technology | Thermal Line |
| Font styles | ANK |
| Box contents | AC adapter, C1, AC cable, Cable fixation saddle, Main unit, Paper spacer, Power switch cover, Roll paper, Setup guide, Warranty document |
| Lifetime | 17000000 lines |
| Paper size roll paper | 57.50 ± 0.50 (W) mm x dia 18.00 mm,<br>57.50 ± 0.50 (W) mm x dia 83.00 mm,<br>79.50 ± 0.50 (W) mm x dia 18.00 mm,<br>79.50 ± 0.50 (W) mm x dia 83.00 mm |
Other features
| Specification | Value |
|---|---|
| Buffer size | 12 KB |
| Mean cycles between failures (MCBF) | 65000000 |
| Print head life | 150.000.000 Impulse |
