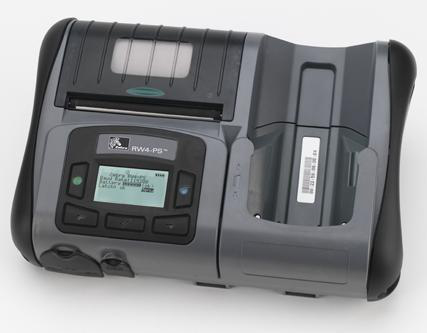

RW 420 Print Station
Model RW 420 Print StationPart no. R4P-6UBA0000-00
32 specifications
- Memory0.016 GB
- ConnectivityWired & Wireless
- TypeMobile printer
- Weight1.47 kg
- ColourBlack, Grey
- Print technologyDirect thermal
Overview
- Memory
- 0.016 GB
- Connectivity
- Wired & Wireless
- Type
- Mobile printer
- Weight
- 1.47 kg
- Colour
- Black, Grey
- Print technology
- Direct thermal
- Brand
- Zebra
- Category
- POS Printer
- Model
- RW 420 Print Station
- Part numbers
- R4P-6UBA0000-00, R4P-6U0A0000-00, R4P-6U0A0100-00, R4P-6UBA0100-00
- Also known as
- Zebra RW 420 Print Station 203 x 203 DPI Wired & Wireless Direct thermal Mobile printer
Specifications
32 specifications in 11 groups
Printing
| Specification | Value |
|---|---|
| Print technology | Direct thermal |
| Type | Mobile printer |
| Maximum resolution | 203 x 203 DPI |
| Print speed | 76 mm/sec |
Paper handling
| Specification | Value |
|---|---|
| Maximum printing width | 10.4 cm |
| Maximum roll diameter | 5.7 cm |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired & Wireless |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| Bluetooth | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Parallel ports quantity | 1 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
Features
| Specification | Value |
|---|---|
| Built-in barcodes | CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 93, EAN128, EAN13, EAN8, Interleaved 2/5, MaxiCode, PDF417, POSTNET, QR Code |
| Flash memory | 8 MB |
| Built-in processor | 32-bit |
| RAM capacity | 0.016 GB |
| Certification | FCC, VCCI, NOM/NYCE, C-Tick |
Design
| Specification | Value |
|---|---|
| Product colour | Black, Grey |
| Built-in display | Yes |
| Display | LCD |
Power
| Specification | Value |
|---|---|
| Power source type | Battery |
| Battery voltage | 7.4 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 80% |
| Operating temperature (T-T) | -20 - 55 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -30 - 65 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.47 kg |
Battery
| Specification | Value |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
Other features
| Specification | Value |
|---|---|
| Maximum print size | 104 x 914 mm |
