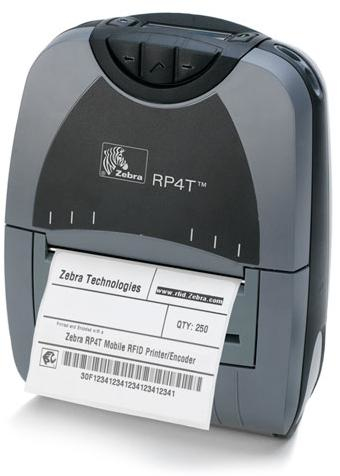

RP4T 203 x 203 DPI Wired & Wireless Direct thermal Mobile printer
Model RP4TPart no. P4D-1UG0E001-00
31 specifications
- Memory16384 KB
- ConnectivityWired & Wireless
- TypeMobile printer
- Weight1.32 kg
- ColourBlack, Grey
- Print technologyDirect thermal
Overview
- Memory
- 16384 KB
- Connectivity
- Wired & Wireless
- Type
- Mobile printer
- Weight
- 1.32 kg
- Colour
- Black, Grey
- Print technology
- Direct thermal
- Brand
- Zebra
- Category
- POS Printer
- Model
- RP4T
- Part numbers
- P4D-1UG0E001-00, P4D-1UG1E001-00, P4D-1U11E001-00
- Also known as
- Zebra RP4T 203 x 203 DPI Wired & Wireless Direct thermal Mobile printer
Specifications
31 specifications in 11 groups
Printing
| Specification | Value |
|---|---|
| Print technology | Direct thermal |
| Type | Mobile printer |
| Maximum resolution | 203 x 203 DPI |
| Print speed | 38 mm/sec |
Paper handling
| Specification | Value |
|---|---|
| Maximum printing width | 10.4 cm |
| Maximum roll diameter | 6.6 cm |
| Printing media thickness | 0.08 - 0.22 µm |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired & Wireless |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| Bluetooth | Yes |
| Bluetooth version | 2.0+EDR |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b, 802.11g |
Features
| Specification | Value |
|---|---|
| Built-in barcodes | CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 93, EAN128, EAN13, EAN8, Interleaved 2/5, MaxiCode, PDF417, QR Code, UPC-A, UPC-E |
| Flash memory | 8 MB |
| RAM capacity | 16384 KB |
| Certification | FCC, NRTL, EMC, LVD, R&TTE |
Design
| Specification | Value |
|---|---|
| Product colour | Black, Grey |
Power
| Specification | Value |
|---|---|
| Power source type | Battery |
| Battery voltage | 7.4 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -20 - 50 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -30 - 65 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.32 kg |
Battery
| Specification | Value |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 177.8 x 76.2 x 218.4 mm |
| Maximum print size | 104 x 914 mm |
