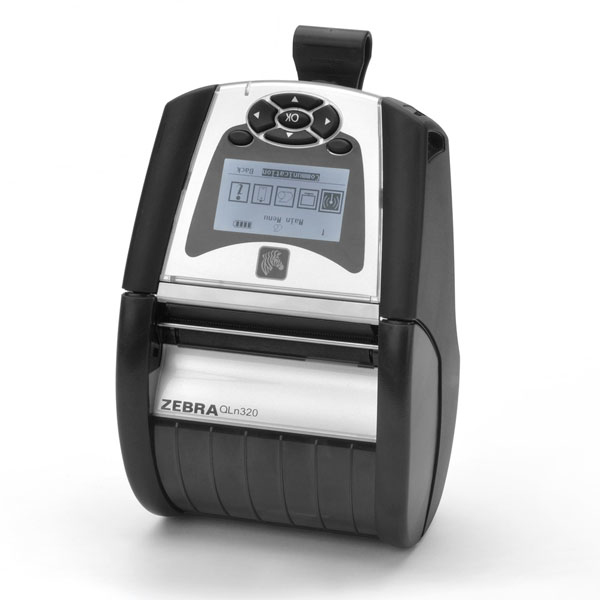

QLn320 203 x 203 DPI Wired Direct thermal / Thermal transfer Mobile printer
Model QLn320Part no. QN3-AUGBEE11-00EAN 3609740033513
32 specifications
- Resolution240 x 128 pixels
- Memory0.125 GB
- ConnectivityWired
- TypeMobile printer
- Weight720 g
- ColourBlack, Silver
Overview
- Resolution
- 240 x 128 pixels
- Memory
- 0.125 GB
- Connectivity
- Wired
- Type
- Mobile printer
- Weight
- 720 g
- Colour
- Black, Silver
- Brand
- Zebra
- Category
- POS Printer
- Model
- QLn320
- Part numbers
- QN3-AUGBEE11-00, QN3-AUCAEE11-00, QN3-AUG1EE10-00, QH3-AUNAEM00-00, QN3-AUNAEM11-00, QN3-AUCAEM11-00 +17 more
- EAN / UPC
- 3609740033513, 5053785165032, 5052184668892, 5712505704684 +7 more
- Also known as
- Zebra QLn320 203 x 203 DPI Wired Direct thermal / Thermal transfer Mobile printer
Specifications
32 specifications in 11 groups
Printing
| Specification | Value |
|---|---|
| Print technology | Direct thermal / Thermal transfer |
| Type | Mobile printer |
| Maximum resolution | 203 x 203 DPI |
| Print speed | 4 ips |
Paper handling
| Specification | Value |
|---|---|
| Maximum roll diameter | 6.6 cm |
| Supported paper width | 72 mm |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| Serial interface | Yes |
| Bluetooth | No |
| Serial ports quantity | 1 |
| Standard interfaces | USB 2.0, Serial |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
Features
| Specification | Value |
|---|---|
| Built-in barcodes | 2D, CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 93, EAN13, EAN8, Interleaved 2/5, MaxiCode, PDF417, QR Code, TLC39, UPC-A, UPC-E |
| Flash memory | 256 MB |
| Built-in processor | 400 MHz 32-bit ARM |
| RAM capacity | 0.125 GB |
| Certification | FCC, EN, VCCI, CE, UL, TUV, CSA |
Design
| Specification | Value |
|---|---|
| Product colour | Black, Silver |
| Built-in display | Yes |
| Display | LCD |
| Display resolution | 240 x 128 pixels |
Power
| Specification | Value |
|---|---|
| Power source type | Battery |
| Battery voltage | 7.4 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -20 - 50 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -25 - 65 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 720 g |
Battery
| Specification | Value |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 117 x 173 x 84 mm |
