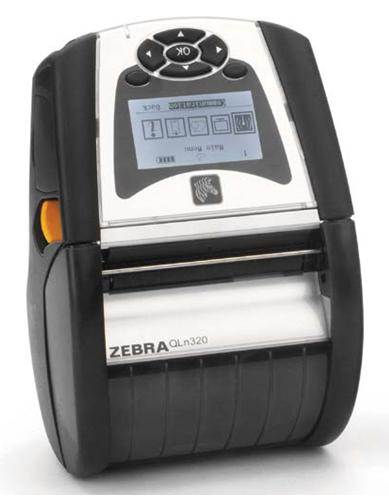

QLn 320
Model QLn 320Part no. QN3-AUNB0E00-00
32 specifications
- Resolution240 x 128 pixels
- Memory128 MB
- ConnectivityWired & Wireless
- TypeMobile printer
- Weight720 g
- Print technologyDirect thermal
Overview
- Resolution
- 240 x 128 pixels
- Memory
- 128 MB
- Connectivity
- Wired & Wireless
- Type
- Mobile printer
- Weight
- 720 g
- Print technology
- Direct thermal
- Brand
- Zebra
- Category
- POS Printer
- Model
- QLn 320
- Part numbers
- QN3-AUNB0E00-00, QN3-AUGA0000-00, QN3-AU1A0000-00, QN3-AUBA0000-00, QN3-AUNA0E00-00, QN3-AUN10E00-00 +2 more
- Also known as
- Zebra QLn 320 203 x 203 DPI Wired & Wireless Direct thermal Mobile printer
Specifications
32 specifications in 11 groups
Printing
| Specification | Value |
|---|---|
| Print technology | Direct thermal |
| Type | Mobile printer |
| Maximum resolution | 203 x 203 DPI |
| Print speed | 100 mm/sec |
| Print speed | 4 ips |
Paper handling
| Specification | Value |
|---|---|
| Maximum roll diameter | 6.6 cm |
| Supported paper width | 25 - 79 mm |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired & Wireless |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b, 802.11g |
Features
| Specification | Value |
|---|---|
| Built-in barcodes | 1D, 2D, CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 93, EAN128, EAN13, EAN8, Interleaved 2/5, MaxiCode, PDF417, QR Code, TLC39, UPC-A, UPC-E |
| Internal memory | 128 MB |
| Flash memory | 256 MB |
| Built-in processor | 400 MHz 32-bit ARM |
| Certification | FCC 15, B, EN55022 B, EN60950, EN55024, VCCI B, EN55024, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, CE, UL, TUV, CSA |
Design
| Specification | Value |
|---|---|
| Built-in display | Yes |
| Display | LCD |
| Display resolution | 240 x 128 pixels |
Power
| Specification | Value |
|---|---|
| Battery voltage | 7.4 V |
| Power supply type | DC |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -20 - 50 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -25 - 65 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 720 g |
Battery
| Specification | Value |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 117 x 173 x 84 mm |
| Maximum print size | 72 x 813 mm |
