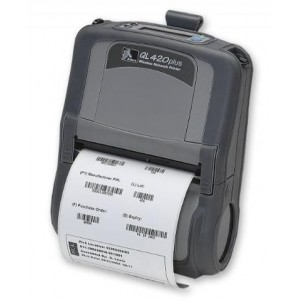

QL 420 Plus
Model QL 420 PlusPart no. Q4D-LU1DE011-00
27 specifications
- Memory16 GB
- ConnectivityWired
- TypeMobile printer
- Weight907 g
- ColourBlack
- Maximum printing width10.4 cm
Overview
- Memory
- 16 GB
- Connectivity
- Wired
- Type
- Mobile printer
- Weight
- 907 g
- Colour
- Black
- Maximum printing width
- 10.4 cm
- Brand
- Zebra
- Category
- POS Printer
- Model
- QL 420 Plus
- Part number
- Q4D-LU1DE011-00
- Also known as
- Zebra QL 420 Plus 203 x 203 DPI Wired Direct thermal / Thermal transfer Mobile printer
Specifications
27 specifications in 11 groups
Printing
| Specification | Value |
|---|---|
| Print technology | Direct thermal / Thermal transfer |
| Type | Mobile printer |
| Maximum resolution | 203 x 203 DPI |
| Print speed | 76 mm/sec |
Paper handling
| Specification | Value |
|---|---|
| Maximum printing width | 10.4 cm |
| Maximum roll diameter | 6.67 cm |
| Supported paper width | 103.9 mm |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Serial interface | Yes |
| Serial interface type | RS-232 |
| Serial ports quantity | 1 |
| Standard interfaces | RS-232 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
Features
| Specification | Value |
|---|---|
| Built-in barcodes | Code 128 (A/B/C), Code 39, Code 93, EAN128, EAN13, EAN8, Interleaved 2/5, MaxiCode, PDF417, POSTNET, QR Code, UPC-A, UPC-E |
| Flash memory | 8 MB |
| RAM capacity | 16 GB |
| Certification | FCC, CE, CSA, CB, NOM, C-tick |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| Power source type | Battery |
| Battery voltage | 7.2 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 80% |
| Operating temperature (T-T) | -15 - 50 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -25 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 907 g |
Battery
| Specification | Value |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 152.4 x 76.2 x 190.5 mm |
