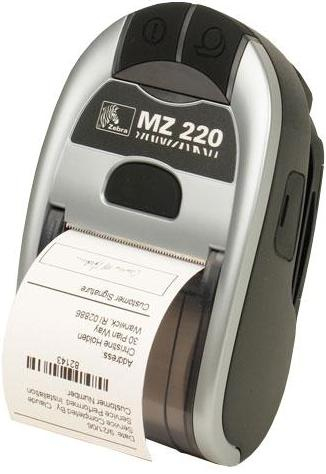

MZ 220
Model MZ 220Part no. M2E-0U10E020-00
28 specifications
- Memory8192 KB
- ConnectivityWired & Wireless
- TypeMobile printer
- Weight320 g
- ColourGrey, Silver
- Print technologyDirect thermal
Overview
- Memory
- 8192 KB
- Connectivity
- Wired & Wireless
- Type
- Mobile printer
- Weight
- 320 g
- Colour
- Grey, Silver
- Print technology
- Direct thermal
- Brand
- Zebra
- Category
- POS Printer
- Model
- MZ 220
- Part numbers
- M2E-0U10E020-00, M2F-0UG0E020-00, M2E-0UG0E020-00
- Also known as
- Zebra MZ 220 203 x 203 DPI Wired & Wireless Direct thermal Mobile printer
Specifications
28 specifications in 12 groups
Printing
| Specification | Value |
|---|---|
| Print technology | Direct thermal |
| Type | Mobile printer |
| Maximum resolution | 203 x 203 DPI |
| Print speed | 76 mm/sec |
Paper handling
| Specification | Value |
|---|---|
| Maximum printing width | 4.83 cm |
| Maximum roll diameter | 4.78 cm |
| Printing media thickness | 2 - 4 µm |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired & Wireless |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| Standard interfaces | IrDA |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
Features
| Specification | Value |
|---|---|
| Built-in barcodes | CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 93, EAN128, EAN8, Interleaved 2/5, MaxiCode, PDF417, POSTNET, QR Code, UPC-A, UPC-E |
| Flash memory | 4 MB |
| RAM capacity | 8192 KB |
| Certification | FCC, CSA, ICS, NOM, C-tick, VCCI, S-Mark |
Design
| Specification | Value |
|---|---|
| Product colour | Grey, Silver |
Power
| Specification | Value |
|---|---|
| Power source type | Battery |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -10 - 50 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -20 - 60 °C |
System requirements
| Specification | Value |
|---|---|
| Compatible operating systems | Windows Mobile 2002 Windows Mobile 2003 SE Windows XP Windows 2000 Windows NT |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 320 g |
Battery
| Specification | Value |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 80.8 x 57.4 x 135.6 mm |
| LED indicators | Power, Status |
| Maximum print size | 48 x 914 mm |
