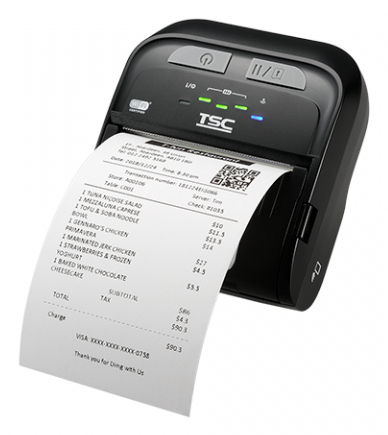

TDM-30 203 x 203 DPI Wired & Wireless Direct thermal Mobile printer
Model TDM-30Part no. 99-083A401-0353
46 specifications
- Memory32 MB
- Battery3080 mAh
- ConnectivityWired & Wireless
- TypeMobile printer
- Weight375 g
- ColourNo
Overview
- Memory
- 32 MB
- Battery
- 3080 mAh
- Connectivity
- Wired & Wireless
- Type
- Mobile printer
- Weight
- 375 g
- Colour
- No
- Brand
- TSC
- Category
- POS Printer
- Model
- TDM-30
- Part numbers
- 99-083A401-0353, 99-083A001-0011, 99-083A601-1313, 99-083A601-1352, 99-083A501-4013, 99-083A501-1312 +34 more
- Also known as
- TSC TDM-30 203 x 203 DPI Wired & Wireless Direct thermal Mobile printer
Specifications
46 specifications in 13 groups
Printing
| Specification | Value |
|---|---|
| Print technology | Direct thermal |
| Type | Mobile printer |
| Colour | No |
| Maximum resolution | 203 x 203 DPI |
| Print speed | 102 mm/sec |
Paper handling
| Specification | Value |
|---|---|
| Maximum media length | 2.79 m |
| Maximum printing width | 7.2 cm |
| Maximum roll diameter | 4 cm |
| Printing media thickness | 60 - 160 µm |
| Supported paper width | 80 mm |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired & Wireless |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Wi-Fi | Yes |
Features
| Specification | Value |
|---|---|
| Built-in barcodes | 1D, 2D, AZTECCODE, Code 128 (A/B/C), Code 39, Code 93, EAN128, EAN13, EAN8, MaxiCode, QR Code, UPC-A, UPC-E |
| Page description languages | CPCL-native, DPL, EPL2, ESC/POS, TSPL-EZ, ZPL II |
| Internal memory | 32 MB |
| Storage media | Flash |
| Flash memory | 16 MB |
| Built-in processor | Yes |
| Certification | RoHS, WEEE, REACH |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| Power source type | Battery |
| Battery voltage | 7.4 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -15 - 50 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -30 - 70 °C |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac compatibility | Yes |
| Mac operating systems supported | Yes |
| Mobile operating systems supported | Android, Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 105 mm |
| Depth | 49.5 mm |
| Height | 116 mm |
| Weight | 375 g |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
Battery
| Specification | Value |
|---|---|
| Battery capacity | 3080 mAh |
| Battery technology | Lithium-Ion (Li-Ion) |
Other features
| Specification | Value |
|---|---|
| International Protection (IP) code | IP42 |
| LED indicators | Status |
| Rechargeable | Yes |
| Storage media type | Flash |
