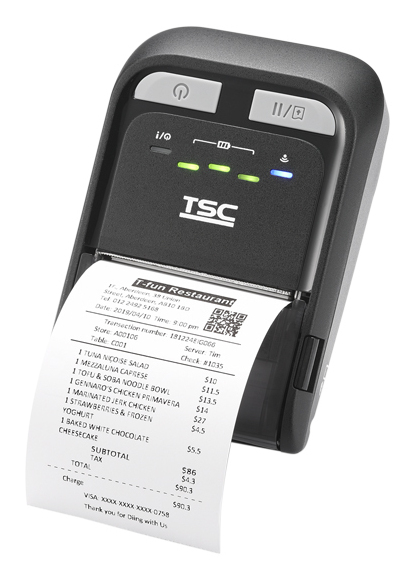

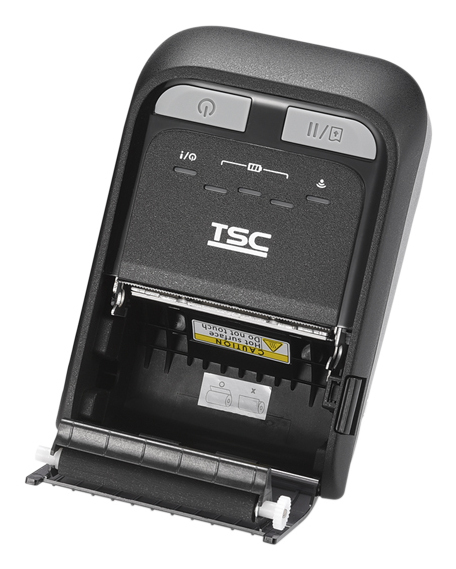

TDM-20 Wired & Wireless Direct thermal Mobile printer
Model TDM-20Part no. 99-082A201-1001
48 specifications
- Memory0.032 GB
- Battery1130 mAh
- ConnectivityWired & Wireless
- TypeMobile printer
- Weight215 g
- ColourBlack
Overview
- Memory
- 0.032 GB
- Battery
- 1130 mAh
- Connectivity
- Wired & Wireless
- Type
- Mobile printer
- Weight
- 215 g
- Colour
- Black
- Brand
- TSC
- Category
- POS Printer
- Model
- TDM-20
- Part numbers
- 99-082A201-1001, 99-082A201-1013, 99-082A001-1002, 99-082A201-0003, 99-082A001-1012, 99-082A001-0012 +22 more
- Also known as
- TSC TDM-20 Wired & Wireless Direct thermal Mobile printer
Specifications
48 specifications in 13 groups
Printing
| Specification | Value |
|---|---|
| Print technology | Direct thermal |
| Type | Mobile printer |
Paper handling
| Specification | Value |
|---|---|
| Maximum media length | 2.79 m |
| Maximum printing width | 4.8 cm |
| Maximum roll diameter | 3 cm |
| Printing media thickness | 60 - 100 µm |
| Supported paper width | 58 mm |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired & Wireless |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| Bluetooth | Yes |
| Bluetooth version | 4.2 |
| Standard interfaces | Bluetooth, USB 2.0, Wireless LAN |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
Features
| Specification | Value |
|---|---|
| Built-in barcodes | 1D, 2D, AZTECCODE, Code 128 (A/B/C), Code 39, Code 93, EAN128, EAN13, EAN8, MaxiCode, QR Code, UPC-A, UPC-E |
| Page description languages | CPCL-native, DPL, EPL2, ESC/POS, ZPL II |
| Storage media | Flash |
| Flash memory | 16 MB |
| Built-in processor | Yes |
| RAM capacity | 0.032 GB |
| Certification | RoHS, WEEE, REACH |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source type | Battery |
| Battery voltage | 7.4 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -15 - 50 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -30 - 70 °C |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac compatibility | Yes |
| Mac operating systems supported | Yes |
| Mobile operating systems supported | Android, iOS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 79 mm |
| Depth | 36.5 mm |
| Height | 116 mm |
| Weight | 215 g |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Quick start guide | Yes |
Battery
| Specification | Value |
|---|---|
| Battery capacity | 1130 mAh |
| Battery technology | Lithium-Ion (Li-Ion) |
Other features
| Specification | Value |
|---|---|
| International Protection (IP) code | IP42 |
| LED indicators | Status |
| Media types supported | Receipt paper, bline receipt paper (black mark in printing side) & selected label |
| Rechargeable | Yes |
| Storage media type | Flash |
