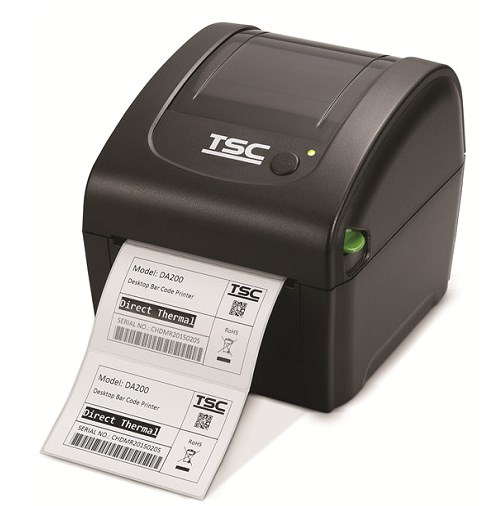

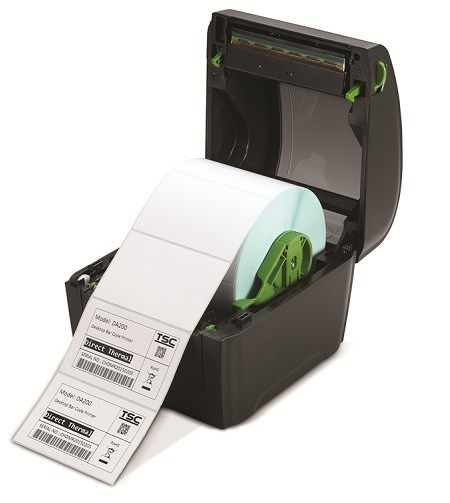

DA210 203 x 203 DPI Wired Direct thermal POS printer
Model DA210Part no. 99-158A001-00LFEAN 4016139144047
51 specifications
- Memory16 MB
- ConnectivityWired
- TypePOS printer
- Weight1.5 kg
- ColourBlack
- Print technologyDirect thermal
Overview
- Memory
- 16 MB
- Connectivity
- Wired
- Type
- POS printer
- Weight
- 1.5 kg
- Colour
- Black
- Print technology
- Direct thermal
- Brand
- TSC
- Category
- POS Printer
- Model
- DA210
- Part number
- 99-158A001-00LF
- EAN / UPC
- 4016139144047
- Also known as
- TSC DA210 203 x 203 DPI Wired Direct thermal POS printer
Specifications
51 specifications in 14 groups
Printing
| Specification | Value |
|---|---|
| Print technology | Direct thermal |
| Type | POS printer |
| Maximum resolution | 203 x 203 DPI |
| Print speed | 152.4 ips |
| Print speed | 6 lps |
Paper handling
| Specification | Value |
|---|---|
| Maximum media length | 2.79 m |
| Maximum printing width | 10.8 cm |
| Printing media thickness | 0.055 - 0.19 µm |
| Supported paper width | 19 - 114 mm |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| Standard interfaces | USB 2.0 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Wi-Fi | No |
Features
| Specification | Value |
|---|---|
| Built-in barcodes | 1D, 2D, AZTECCODE, CODABAR (NW-7), Code 11, Code 128 (A/B/C), Code 39, Code 93, EAN128, EAN13, EAN8, GS1 DataBar, Interleaved 2/5, MaxiCode, MicroPDF417, PDF417, POSTNET, QR Code, UPC-A, UPC-E |
| Page description languages | DPL, EPL, ZPL, ZPL II |
| Internal memory | 16 MB |
| Flash memory | 8 MB |
| Card reader integrated | Yes |
| Built-in processor | Yes |
| Print head life | 25 km |
| Built-in sensors details | Transmissive gap, Black mark reflective, Head open (locally for English) |
| Safety | FCC Class A, CE Class A, RCM, CB, CCC, KC, BIS, UL, EAC |
| Certification | WEEE, RoHS |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| DC output voltage | 24 V |
| Power supply | 60 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 25 - 85% |
| Operating temperature (T-T) | 5 - 40 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 60 °C |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac compatibility | Yes |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 172 mm |
| Depth | 195 mm |
| Height | 165 mm |
| Weight | 1.5 kg |
Packaging data
| Specification | Value |
|---|---|
| Cables included | AC, USB |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Drivers included | Yes |
| Quick start guide | Yes |
Technical details
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Other features
| Specification | Value |
|---|---|
| LED indicators | Yes |
| Print head life | 1 million characters |
| Storage media type | Memory card |
