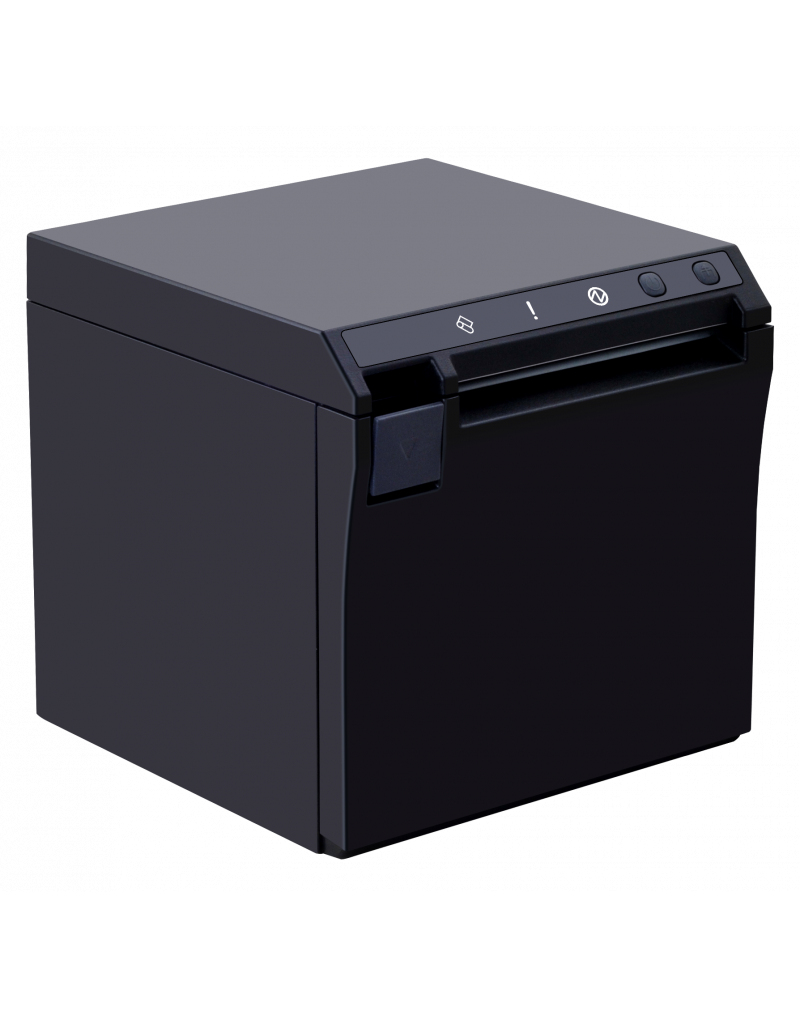

ITP-Front Wired Direct thermal POS printer
Model ITP-FrontPart no. 1265EAN 8437019184223
38 specifications
- ConnectivityWired
- TypePOS printer
- Weight1.11 kg
- ColourBlack
- Print technologyDirect thermal
- Maximum printing width8 cm
Overview
- Connectivity
- Wired
- Type
- POS printer
- Weight
- 1.11 kg
- Colour
- Black
- Print technology
- Direct thermal
- Maximum printing width
- 8 cm
- Brand
- Premier
- Category
- POS Printer
- Model
- ITP-Front
- Part numbers
- 1265, TIP80300UL
- EAN / UPC
- 8437019184223
- Also known as
- Premier ITP-Front Wired Direct thermal POS printer
Specifications
38 specifications in 12 groups
Printing
| Specification | Value |
|---|---|
| Print technology | Direct thermal |
| Type | POS printer |
| Print columns | 576 dots/line |
| Print speed | 300 mm/sec |
| Character size | 1.5 x 3 mm |
| Character sets | 852, 866, Katakana, PC437, PC850, PC858, PC860, PC863, PC865, WPC1252 |
| Line spacing | 3.75 mm |
Paper handling
| Specification | Value |
|---|---|
| Maximum printing width | 8 cm |
| Maximum roll diameter | 8.3 cm |
| Media thickness | 0.06 - 0.08 mm |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
Features
| Specification | Value |
|---|---|
| Built-in barcodes | CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 93, EAN13, EAN8, UPC-A, UPC-E |
| Flash memory | 0.256 MB |
| Cutter | Yes |
| Autocutter durability | 1.5 million cuts |
| Print head life | 150 km |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| AC input voltage | 110/220 V |
| AC input frequency | 50 - 60 Hz |
| DC output voltage | 24 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 80% |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage relative humidity (H-H) | 10 - 80% |
| Storage temperature (T-T) | -10 - 60 °C |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 126 mm |
| Depth | 133 mm |
| Height | 130 mm |
| Weight | 1.11 kg |
Print technology
| Specification | Value |
|---|---|
| Column capacity | 576 dots/line |
Other features
| Specification | Value |
|---|---|
| Buffer size | 64 KB |
