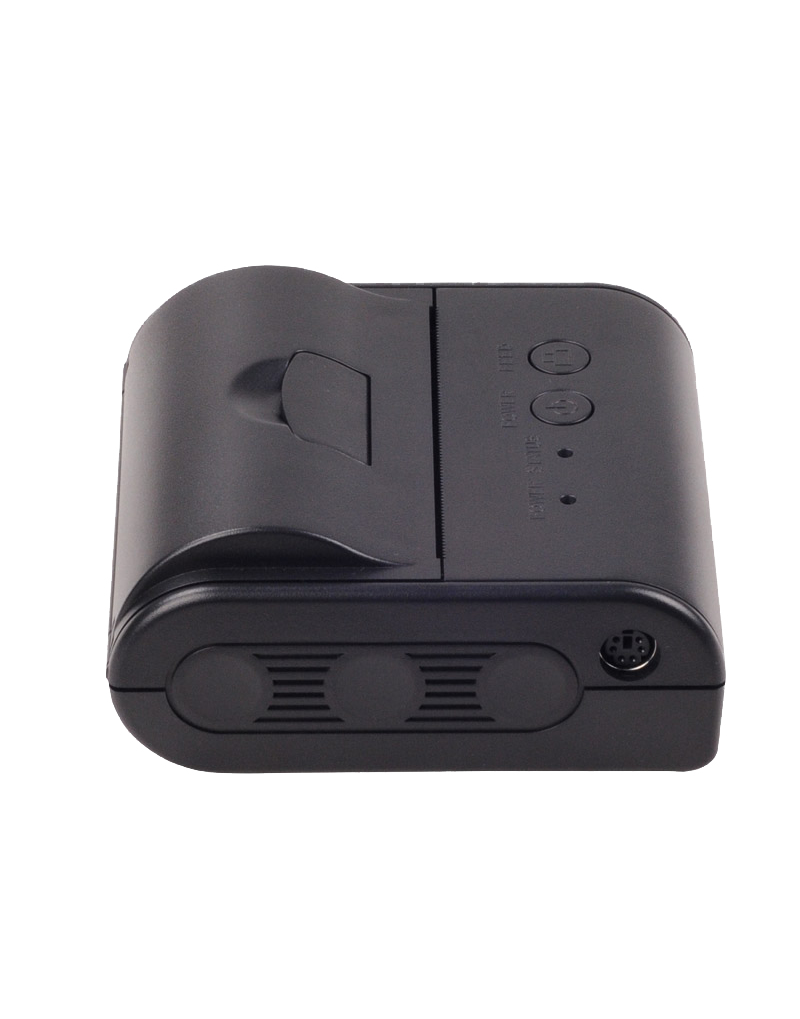

ITP-80 BT
Model ITP-80 BTPart no. 821
39 specifications
- ConnectivityWired & Wireless
- TypeMobile printer
- Weight260 g
- ColourNo
- Print technologyDirect thermal
- Maximum printing width8 cm
Overview
- Connectivity
- Wired & Wireless
- Type
- Mobile printer
- Weight
- 260 g
- Colour
- No
- Print technology
- Direct thermal
- Maximum printing width
- 8 cm
- Brand
- Premier
- Category
- POS Printer
- Model
- ITP-80 BT
- Part number
- 821
- Also known as
- Premier ITP-80 BT Wired & Wireless Direct thermal Mobile printer
Specifications
39 specifications in 12 groups
Printing
| Specification | Value |
|---|---|
| Print technology | Direct thermal |
| Type | Mobile printer |
| Colour | No |
| Print columns | 576 dots/line |
| Print speed | 50 mm/sec |
| Character size | 1.5 x 3 mm |
| Character sets | 852, 866, Katakana, PC437, PC850, PC858, PC860, PC863, PC865, WPC1252 |
| Line spacing | 3.75 mm |
Paper handling
| Specification | Value |
|---|---|
| Maximum printing width | 8 cm |
| Maximum roll diameter | 4 cm |
| Media thickness | 0.06 - 0.08 mm |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired & Wireless |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| Bluetooth | Yes |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Wi-Fi | No |
Features
| Specification | Value |
|---|---|
| Built-in barcodes | 1D, 2D, CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 93, EAN13, EAN8, ITF, PDF417, QR Code, UPC-A, UPC-E |
| Flash memory | 0.064 MB |
| Print head life | 50 km |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| AC input voltage | 110/240 V |
| AC input frequency | 50 - 60 Hz |
| DC output voltage | 9 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -10 - 60 °C |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mobile operating systems supported | Android, iOS |
| Linux operating systems supported | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 105 mm |
| Depth | 108.5 mm |
| Height | 48 mm |
| Weight | 260 g |
Print technology
| Specification | Value |
|---|---|
| Column capacity | 576 dots/line |
Other features
| Specification | Value |
|---|---|
| Buffer size | 32 KB |
