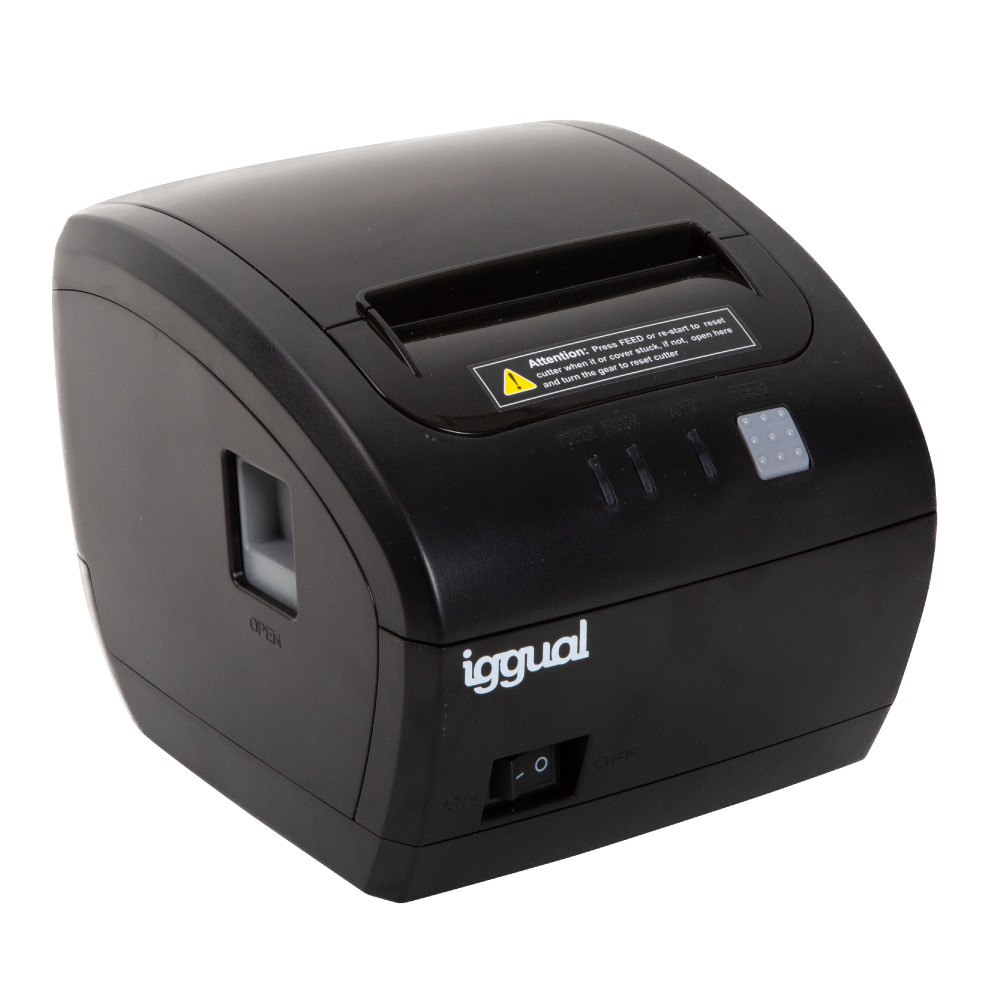

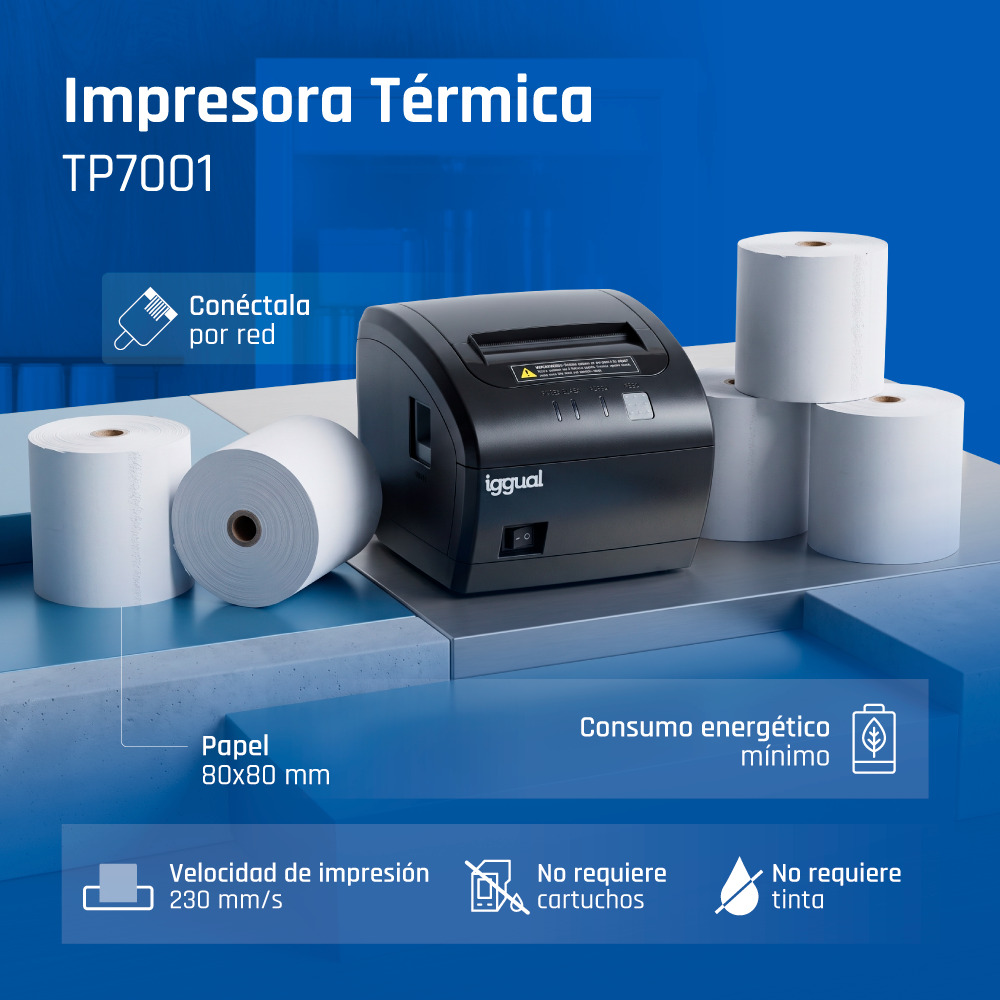

TP7001 203 x 203 DPI Wired Thermal transfer POS printer
Model TP7001Part no. IGG318232EAN 8435364318232
45 specifications
- Memory0.128 MB
- ConnectivityWired
- TypePOS printer
- Weight1 kg
- ColourNo
- Print technologyThermal transfer
Overview
- Memory
- 0.128 MB
- Connectivity
- Wired
- Type
- POS printer
- Weight
- 1 kg
- Colour
- No
- Print technology
- Thermal transfer
- Brand
- iggual
- Category
- POS Printer
- Model
- TP7001
- Part number
- IGG318232
- EAN / UPC
- 8435364318232
- Also known as
- iggual TP7001 203 x 203 DPI Wired Thermal transfer POS printer
Specifications
45 specifications in 12 groups
Printing
| Specification | Value |
|---|---|
| Print technology | Thermal transfer |
| Type | POS printer |
| Colour | No |
| Maximum resolution | 203 x 203 DPI |
| Print columns | 576 dots/line |
| Print speed | 230 mm/sec |
| Line spacing | 3.75 mm |

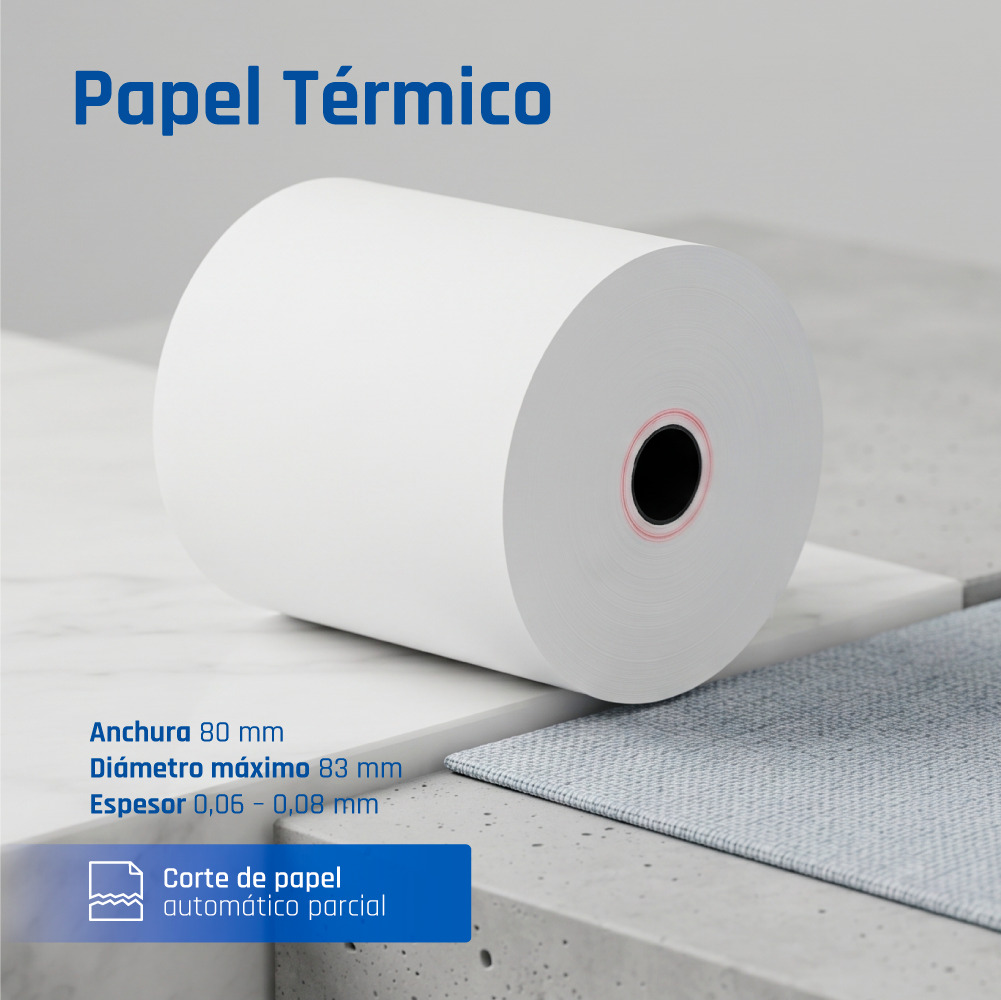

Paper handling
| Specification | Value |
|---|---|
| Maximum printing width | 7.2 cm |
| Maximum roll diameter | 8.3 cm |
| Media thickness | 0.06 - 0.08 mm |
| Supported paper width | 80 mm |

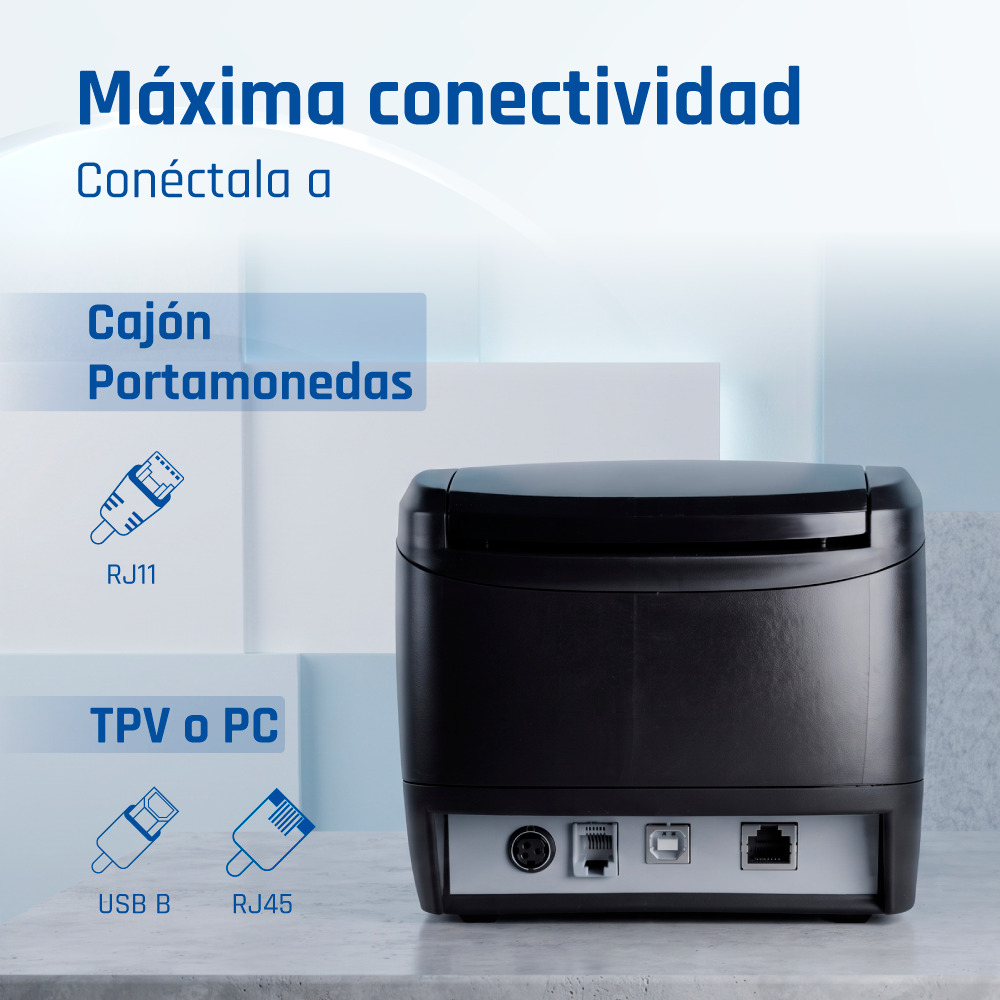

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| USB connector | USB Type-B |
| Serial interface | No |
| Serial interface type | RJ-11 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
Features
| Specification | Value |
|---|---|
| Built-in barcodes | 1D, 2D, CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code-128 Codabar Library, EAN13, EAN8, ITF, UPC-A, UPC-E |
| Internal memory | 0.128 MB |
| Flash memory | 0.256 MB |
| Cutter | Yes |
| Receive buffer | 128 KB |
| Wall mountable | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | White |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| AC input voltage | 110 - 220 V |
| AC input frequency | 50 - 60 Hz |
| DC output voltage | 24 V |
| Power consumption | 2.5 mA |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac compatibility | Yes |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |

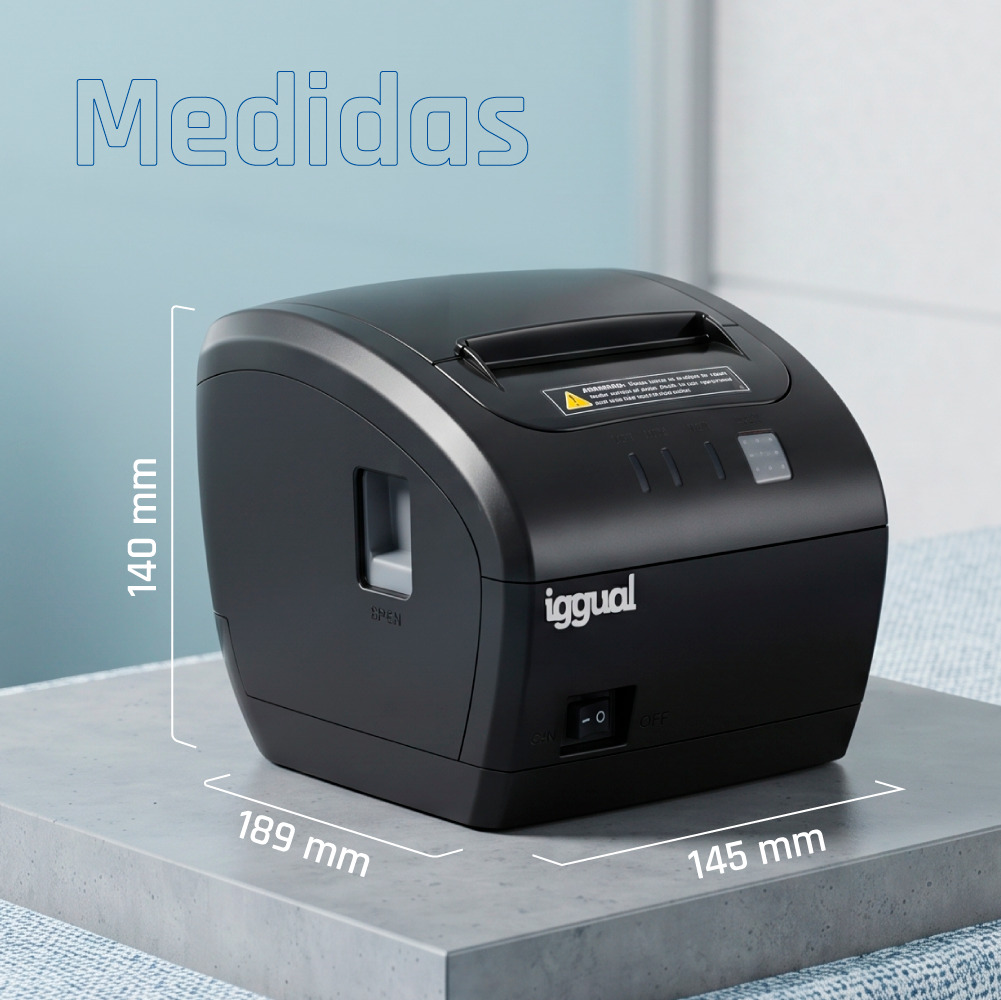

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 145 mm |
| Depth | 189 mm |
| Height | 140 mm |
| Weight | 1 kg |
Packaging data
| Specification | Value |
|---|---|
| Cables included | USB |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Drivers included | Yes |
| Quick start guide | Yes |
Technical details
| Specification | Value |
|---|---|
| Font size | 5x3 mm / 1.1x2.1 mm |
| Font styles | A/B |
