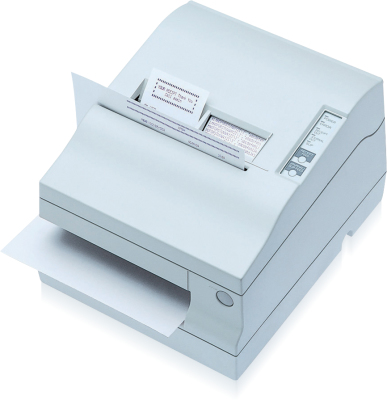

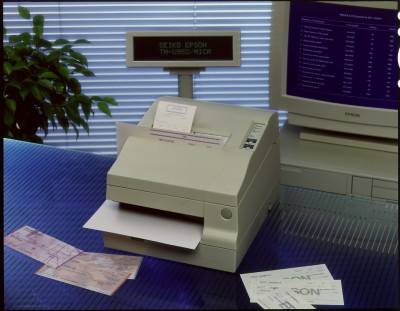

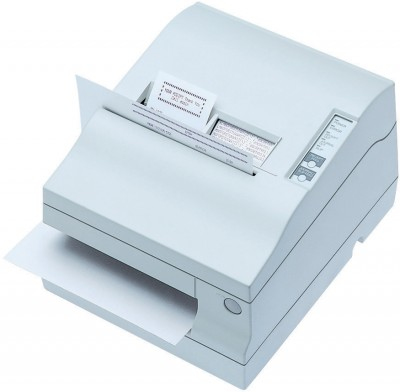

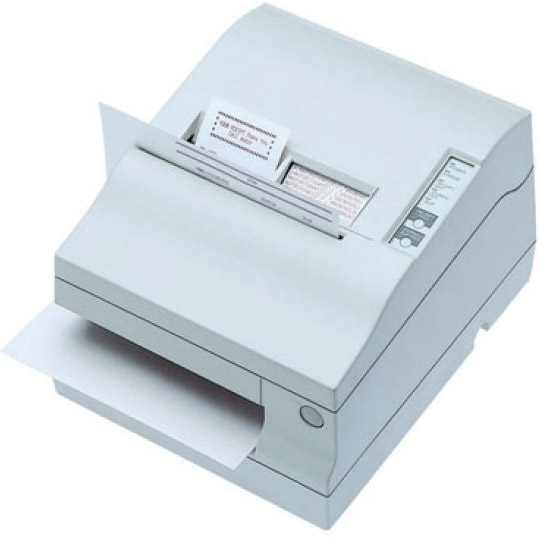

TM-U950P (252): Parallel, w/o PS, ECW
Model TM-U950PPart no. C31C176253EAN 8715946481791
41 specifications
- ConnectivityWired
- TypePOS printer
- Weight5.6 kg
- ColourWhite
- Sound pressure level (printing)63 dB
- Operating relative humidity (H-H)30 - 80%
Overview
- Connectivity
- Wired
- Type
- POS printer
- Weight
- 5.6 kg
- Colour
- White
- Sound pressure level (printing)
- 63 dB
- Operating relative humidity (H-H)
- 30 - 80%
- Brand
- Epson
- Category
- POS Printer
- Model
- TM-U950P
- Part numbers
- C31C176253, C31C176252
- EAN / UPC
- 8715946481791, 682017451381, 778889992036, 4054318565863 +4 more
- Also known as
- Epson TM-U950P (252): Parallel, w/o PS, ECW
Specifications
41 specifications in 11 groups
Printing
| Specification | Value |
|---|---|
| Type | POS printer |
| Character size | 1.3 x 3.1 mm |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Interface | Drawer kick-out, Bidirectional parallel |
| Parallel ports quantity | 1 |
Features
| Specification | Value |
|---|---|
| Sound pressure level (printing) | 63 dB |
| Mean time between failures (MTBF) | 180000 h |
| Country of origin | China |
| Ribbon life | 7 million characters |
Design
| Specification | Value |
|---|---|
| Product colour | White |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 30 - 80% |
| Operating temperature (T-T) | 5 - 40 °C |
| Storage relative humidity (H-H) | 30 - 90% |
| Storage temperature (T-T) | -10 - 50 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 251 mm |
| Depth | 298 mm |
| Height | 195 mm |
| Weight | 5.6 kg |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 355 mm |
| Package depth | 420 mm |
| Package height | 320 mm |
| Package weight | 6.42 kg |
Print technology
| Specification | Value |
|---|---|
| Column capacity | 40/30, 88/60 |
Logistics data
| Specification | Value |
|---|---|
| Products per master (outer) case | 2 pc(s) |
| Master (outer) case width | 445 mm |
| Master (outer) case length | 735 mm |
| Master (outer) case height | 345 mm |
| Products per pallet | 24 pc(s) |
| Products per pallet layer | 4 pc(s) |
| Pallet gross width | 80 cm |
| Pallet gross length | 120 cm |
| Pallet gross height | 6.33 m |
| Products per pallet (UK) | 36 pc(s) |
| Products per pallet layer (UK) | 6 pc(s) |
| Pallet width (UK) | 100 cm |
| Pallet length (UK) | 120 cm |
| Pallet height (UK) | 6.33 m |
Technical details
| Specification | Value |
|---|---|
| Box contents | Main unit, Paper roll take-up reel, Power switch cover, Ribbon, Roll paper, User manual |
Other features
| Specification | Value |
|---|---|
| Buffer size | 2 KB |
| Dimensions (WxDxH) | 251 x 298 x 194.5 mm |
