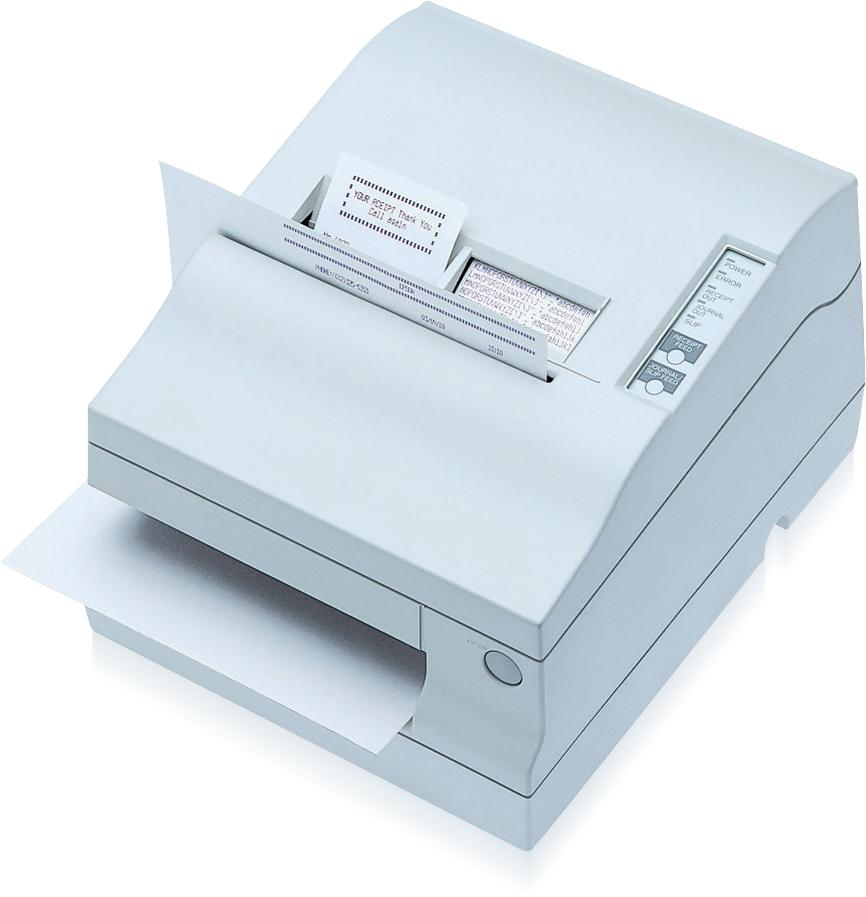

TM-U950 (385)
Model TM-U950 (385)Part no. C31C151385EAN 8715946622729
43 specifications
- ConnectivityWired
- TypePOS printer
- Weight5.6 kg
- ColourWhite
- Print technologyDot matrix
- Sound pressure level (printing)63 dB
Overview
- Connectivity
- Wired
- Type
- POS printer
- Weight
- 5.6 kg
- Colour
- White
- Print technology
- Dot matrix
- Sound pressure level (printing)
- 63 dB
- Brand
- Epson
- Category
- POS Printer
- Model
- TM-U950 (385)
- Part number
- C31C151385
- EAN / UPC
- 8715946622729
- Also known as
- Epson TM-U950 (385): USB, w/o PS, ECW
Specifications
43 specifications in 10 groups
Printing
| Specification | Value |
|---|---|
| Print technology | Dot matrix |
| Type | POS printer |
| Character density | 16.7 cpi |
| Character size | 1.6 x 3.1 mm |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| USB connector | USB Type-B |
| Serial interface | No |
| Interface | Drawer kick-out, Customer Display, USB 2.0 |
Features
| Specification | Value |
|---|---|
| Sound pressure level (printing) | 63 dB |
| Mean time between failures (MTBF) | 180000 h |
| Cutter | Yes |
| Printer slip unit life | 7500000 lines |
| Ribbon life (slip) | 4.5 million characters |
| Built-in sensors details | Cover Open Sensor, Slip eject sensor, Journal near-end sensor, Receipt near-end sensor, Journal paper sensor, Receipt paper sensor, Slip insertion sensor |
Design
| Specification | Value |
|---|---|
| Product colour | White |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| AC input voltage | 24 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 30 - 80% |
| Operating temperature (T-T) | 5 - 40 °C |
| Storage relative humidity (H-H) | 30 - 90% |
| Storage temperature (T-T) | -10 - 50 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 251 mm |
| Depth | 298 mm |
| Height | 195 mm |
| Weight | 5.6 kg |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 360 mm |
| Package depth | 425 mm |
| Package height | 325 mm |
| Package weight | 6.37 kg |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84433210 |
| Products per pallet | 24 pc(s) |
| Products per pallet layer | 4 pc(s) |
| Pallet gross width | 80 cm |
| Pallet gross length | 120 cm |
| Pallet gross height | 2.1 m |
| Products per pallet (UK) | 36 pc(s) |
| Products per pallet layer (UK) | 6 pc(s) |
| Pallet length (UK) | 120 cm |
| Pallet height (UK) | 2.1 m |
Technical details
| Specification | Value |
|---|---|
| Box contents | Main unit, Paper roll take-up reel, Power switch cover, Ribbon, Roll paper, User manual |
