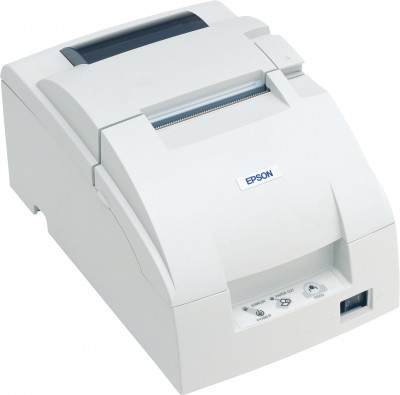

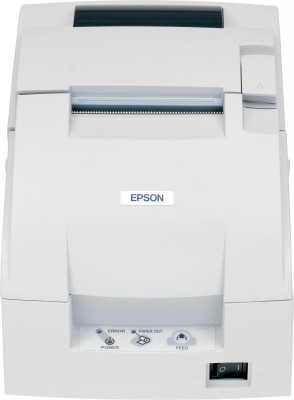

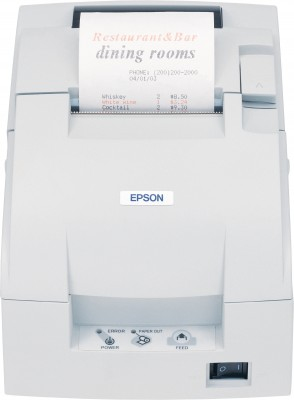

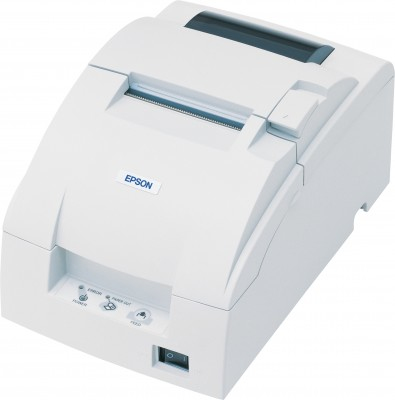

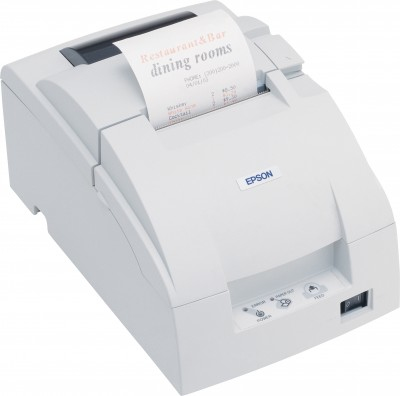

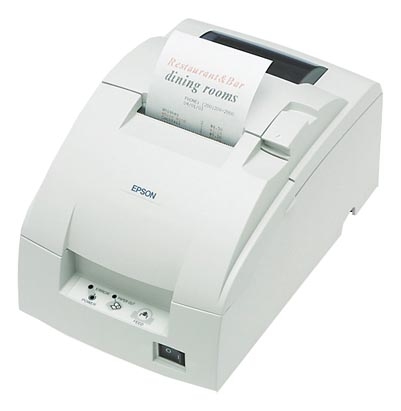

TM-U220PD (002): Parallel, PS, ECW
Model TM-U220PDPart no. C31C518052EAN 8715946190976
39 specifications
- ConnectivityWired
- Weight2.3 kg
- ColourNo
- Printing media thickness0.06/0.085 µm
- Sound pressure level (printing)64 dB
- Product colourWhite
Overview
- Connectivity
- Wired
- Weight
- 2.3 kg
- Colour
- No
- Printing media thickness
- 0.06/0.085 µm
- Sound pressure level (printing)
- 64 dB
- Product colour
- White
- Brand
- Epson
- Category
- POS Printer
- Model
- TM-U220PD
- Part numbers
- C31C518052, C31C518002
- EAN / UPC
- 8715946190976, 3609740021404, 5052883305845, 5054484046707 +9 more
- Also known as
- Epson TM-U220PD (002): Parallel, PS, ECW
Specifications
39 specifications in 12 groups
Printing
| Specification | Value |
|---|---|
| Colour | No |
Paper handling
| Specification | Value |
|---|---|
| Printing media thickness | 0.06/0.085 µm |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Interface | Drawer kick-out, Bidirectional parallel |
Features
| Specification | Value |
|---|---|
| Sound pressure level (printing) | 64 dB |
| Mean time between failures (MTBF) | 180000 h |
| Country of origin | China |
| Maximum number of copies | 1 copies |
| Ribbon life | 3 million characters |
| Safety | UL, CSA, TÜV (EN60950) |
| Standard media sizes | 63 / 57 /47 mm |
Design
| Specification | Value |
|---|---|
| Product colour | White |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -10 - 50 °C |
System requirements
| Specification | Value |
|---|---|
| Compatible operating systems | Windows 2000, XP, Vista |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 160 mm |
| Depth | 248 mm |
| Height | 139 mm |
| Weight | 2.3 kg |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 250 mm |
| Package depth | 400 mm |
| Package height | 242 mm |
| Package weight | 5.06 kg |
Logistics data
| Specification | Value |
|---|---|
| Products per pallet | 72 pc(s) |
| Products per pallet layer | 8 pc(s) |
| Pallet gross width | 80 cm |
| Pallet gross length | 120 cm |
| Pallet gross height | 185 cm |
| Products per pallet (UK) | 108 pc(s) |
| Products per pallet layer (UK) | 12 pc(s) |
| Pallet width (UK) | 100 cm |
| Pallet length (UK) | 120 cm |
| Pallet height (UK) | 2.25 m |
Technical details
| Specification | Value |
|---|---|

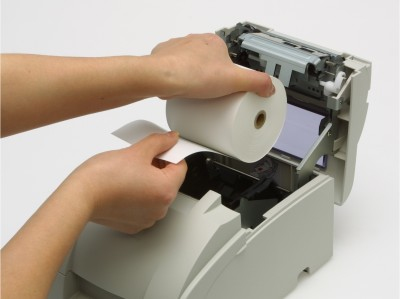

| Box contents | AC adapter, C, Main unit, Ribbon, Roll paper, User manual |
Other features
| Specification | Value |
|---|---|
| Buffer size | 4 KB |
| Dimensions (WxDxH) | 160 x 248 x 138.5 mm |
| Electromagnetic compatibility | VCCI class A, FCC class A, CE marking, AS / NZS 3548 class B |
