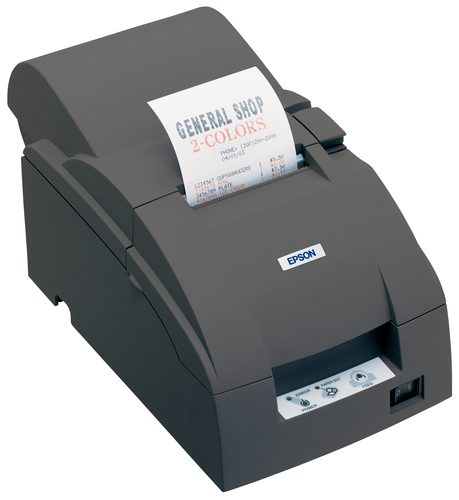

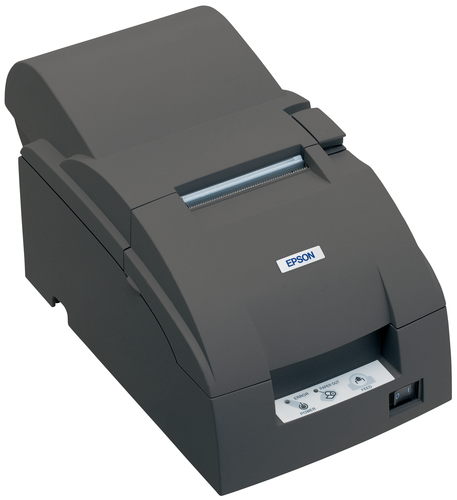

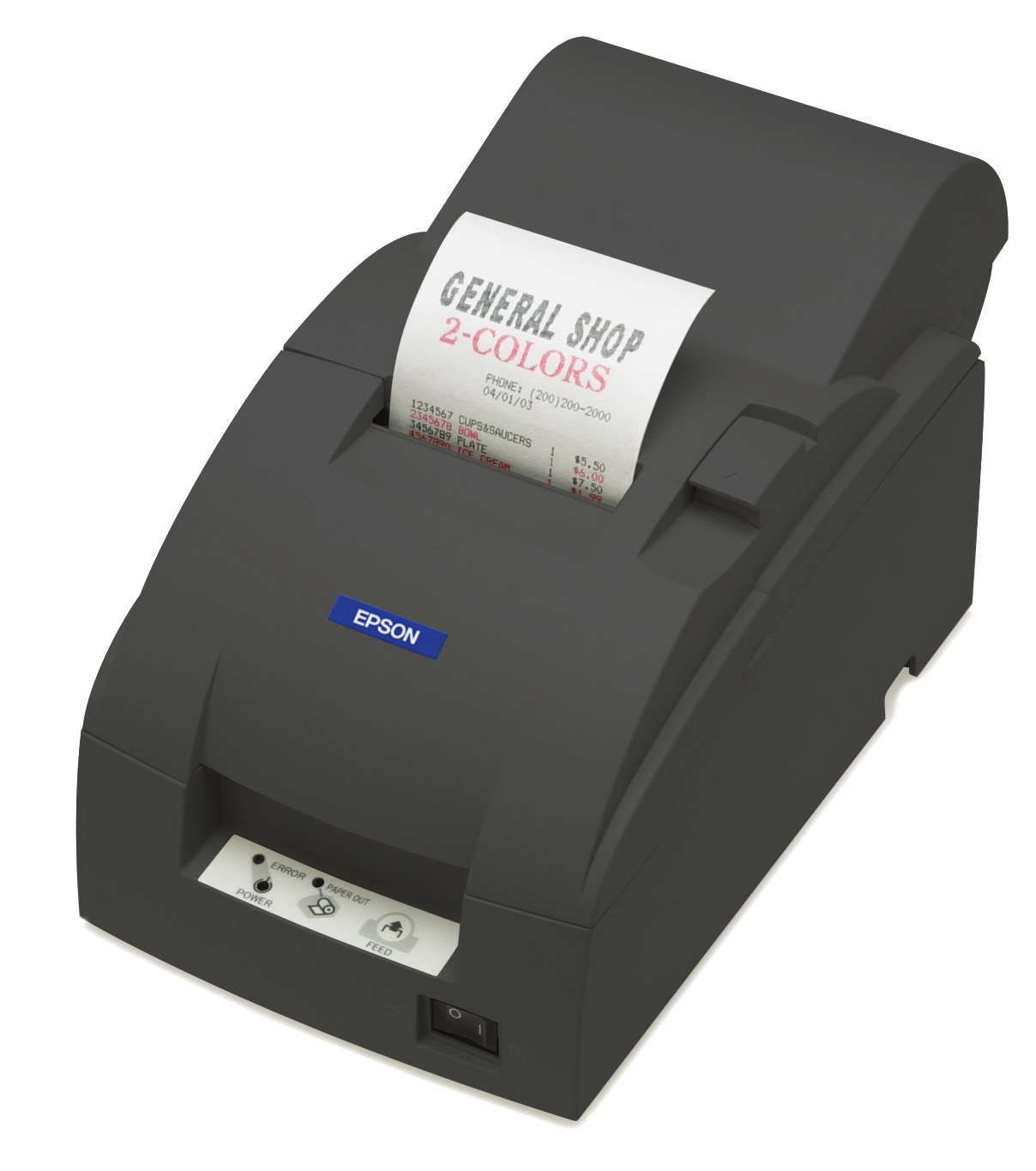

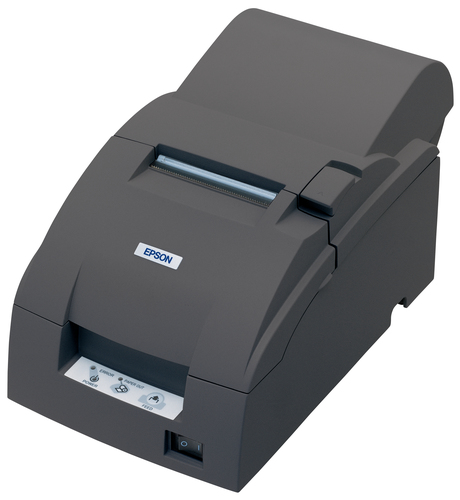

TM-U220A (057S1)
Model TM-U220A (057S1)Part no. C31C513057S1EAN 8715946656977
27 specifications
- ConnectivityWired
- TypePOS printer
- Weight2.7 kg
- Print technologyDot matrix
- Maximum printing width7.6 cm
- Sound pressure level (printing)64 dB
Overview
- Connectivity
- Wired
- Type
- POS printer
- Weight
- 2.7 kg
- Print technology
- Dot matrix
- Maximum printing width
- 7.6 cm
- Sound pressure level (printing)
- 64 dB
- Brand
- Epson
- Category
- POS Printer
- Model
- TM-U220A (057S1)
- Part number
- C31C513057S1
- EAN / UPC
- 8715946656977
- Also known as
- Epson TM-U220A (057S1) Wired Dot matrix POS printer
Specifications
27 specifications in 7 groups
Printing
| Specification | Value |
|---|---|
| Print technology | Dot matrix |
| Type | POS printer |
| Print speed | 4.7 lps |
| Character density | 16 cpi |
| Character size | 1.6 x 3.1 mm |
Paper handling
| Specification | Value |
|---|---|
| Maximum printing width | 7.6 cm |
| Maximum roll diameter | 8.3 cm |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| USB port | Yes |
| USB connector | USB Type-B |
| Serial interface | No |
Features
| Specification | Value |
|---|---|
| Sound pressure level (printing) | 64 dB |
| Mean time between failures (MTBF) | 180000 h |
| Cutter | Yes |
| Autocutter durability | 0.8 million cuts |
| Ribbon life | 7.5 million characters |
| Safety | TÜV |
| Certification | CE |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| AC input voltage | 24 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -10 - 50 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 160 mm |
| Depth | 248 mm |
| Height | 139 mm |
| Weight | 2.7 kg |
