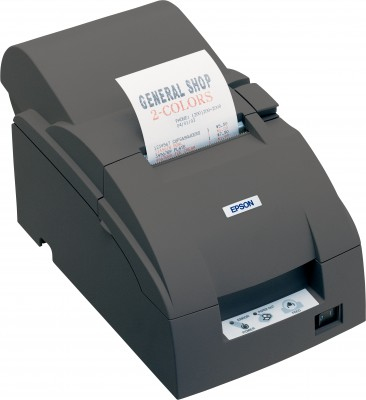

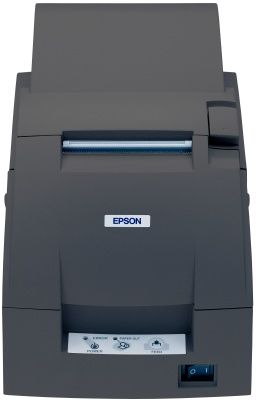

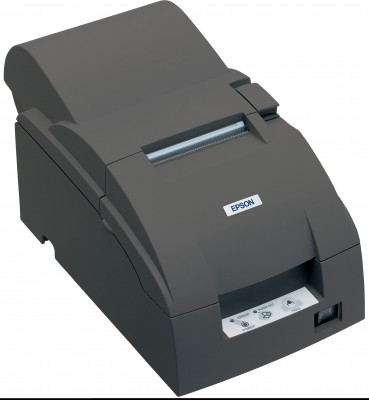

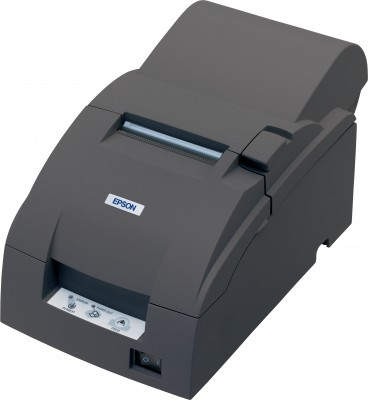

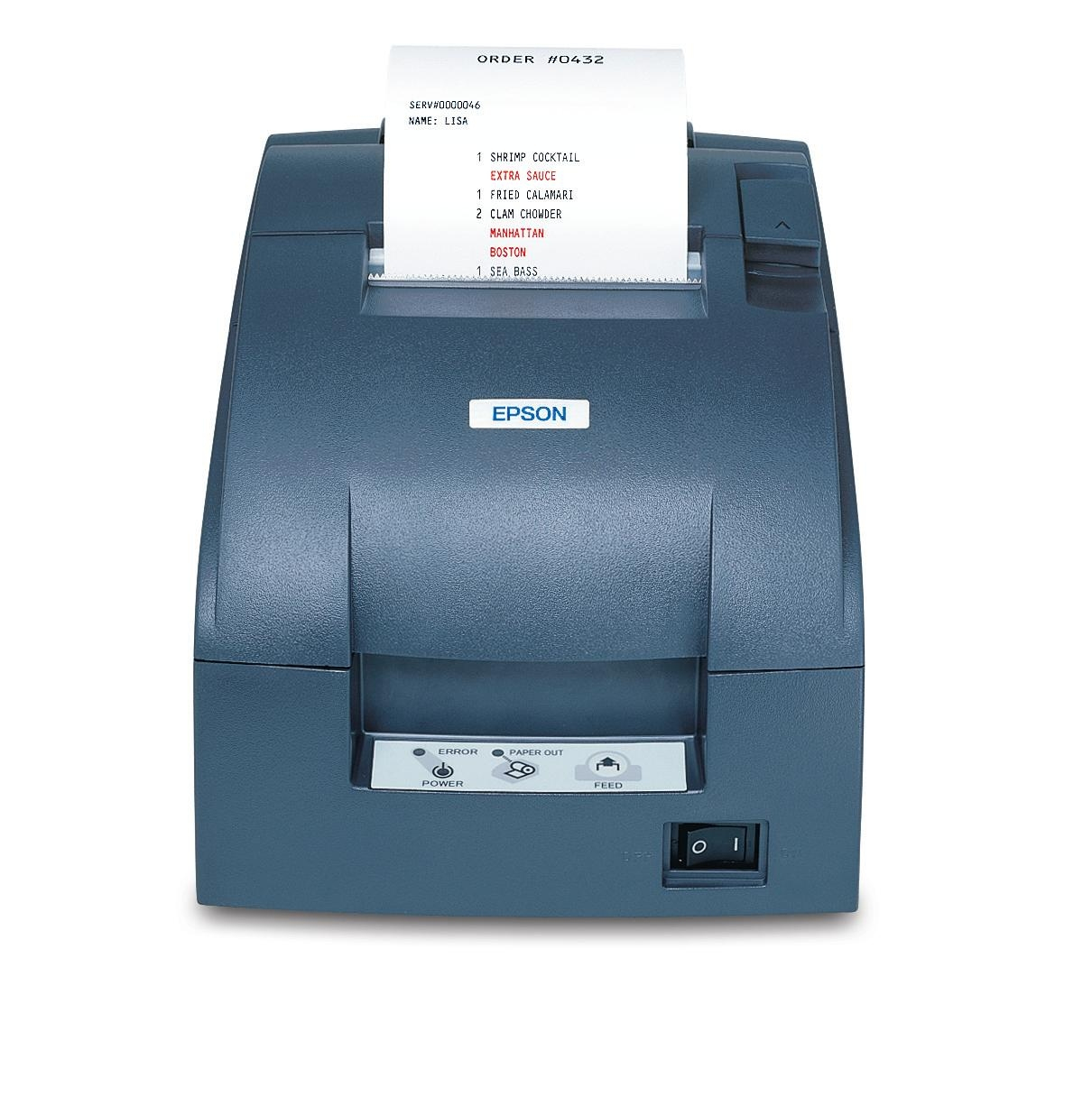

TM-U220A (057): Serial, PS, EDG
Model TM-U220APart no. C31C513103EAN 9009760013016
43 specifications
- ConnectivityWired
- TypePOS printer
- Weight2.7 kg
- ColourNo
- Print technologyDot matrix
- Maximum printing width4.2 cm
Overview
- Connectivity
- Wired
- Type
- POS printer
- Weight
- 2.7 kg
- Colour
- No
- Print technology
- Dot matrix
- Maximum printing width
- 4.2 cm
- Brand
- Epson
- Category
- POS Printer
- Model
- TM-U220A
- Part numbers
- C31C513103, TMU220A, C31C513A8901, C31C513057E, C31C513057WR, C31C516007E +11 more
- EAN / UPC
- 9009760013016, 4054318720774, 4058154268063, 5052883404074 +5 more
- Also known as
- Epson TM-U220A (057): Serial, PS, EDG
Specifications
43 specifications in 14 groups
Printing
| Specification | Value |
|---|---|
| Print technology | Dot matrix |
| Type | POS printer |
| Colour | No |
Paper handling
| Specification | Value |
|---|---|
| Maximum printing width | 4.2 cm |
| Printing media thickness | 0.06/0.085 µm |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Interface | RS-232, Drawer kick-out |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Wi-Fi | No |
Features
| Specification | Value |
|---|---|
| Sound pressure level (printing) | 64 dB |
| Mean time between failures (MTBF) | 180000 h |
| Country of origin | China |
| Ribbon life | 3 million characters |
| Safety | UL, CSA, TÜV (EN60950) |
| Standard media sizes | 63 / 57 /47 mm |
Design
| Specification | Value |
|---|---|
| Product colour | Dark Grey |
Power
| Specification | Value |
|---|---|
| Power consumption (printing) | 31 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -10 - 50 °C |
System requirements
| Specification | Value |
|---|---|
| Compatible operating systems | Windows 2000, XP, Vista |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 160 mm |
| Depth | 248 mm |
| Height | 139 mm |
| Weight | 2.7 kg |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 250 mm |
| Package depth | 390 mm |
| Package height | 250 mm |
| Package weight | 4.2 kg |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84433210 |
| Products per pallet | 56 pc(s) |
| Products per pallet layer | 8 pc(s) |
| Pallet gross width | 120 cm |
| Pallet gross height | 100 cm |
| Products per pallet (UK) | 84 pc(s) |
| Products per pallet layer (UK) | 12 pc(s) |
| Pallet length (UK) | 120 cm |
| Pallet height (UK) | 2.25 m |
Technical details
| Specification | Value |
|---|---|
| Box contents | AC adapter, C, Main unit, Ribbon, Roll paper, User manual |
Other features
| Specification | Value |
|---|---|
| Buffer size | 4 KB |
| Dimensions (WxDxH) | 160 x 286 x 157.5 mm |
| Electromagnetic compatibility | VCCI class A, FCC class A, CE marking, AS / NZS 3548 class B |
