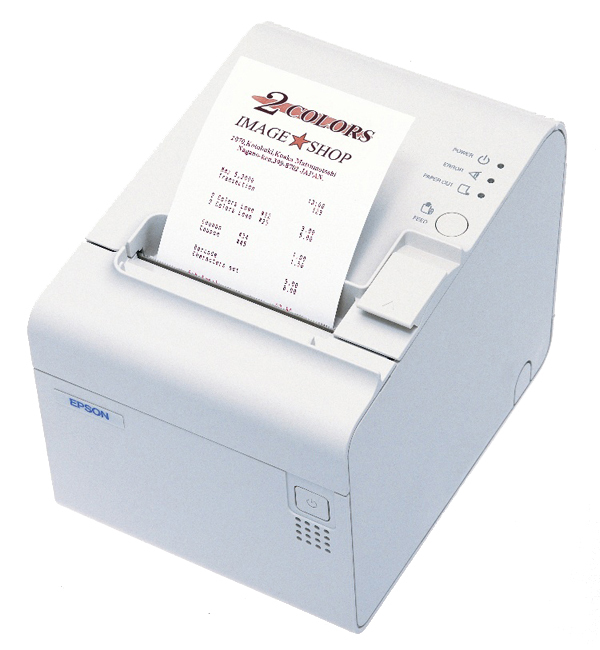

TM-T90 180 x 180 DPI Wired Thermal
Model TM-T90Part no. C402011EAN 8715946403656
22 specifications
- ConnectivityWired
- Weight1.8 kg
- ColourWhite
- Print technologyThermal
- Maximum roll diameter10.2 cm
- Built-in barcodesPDF417, UPC-A, UPC-E
Overview
- Connectivity
- Wired
- Weight
- 1.8 kg
- Colour
- White
- Print technology
- Thermal
- Maximum roll diameter
- 10.2 cm
- Built-in barcodes
- PDF417, UPC-A, UPC-E
- Brand
- Epson
- Category
- POS Printer
- Model
- TM-T90
- Part numbers
- C402011, C31C390021A0, C390011, C31C390012BA
- EAN / UPC
- 8715946403656, 8715946290676
- Also known as
- Epson TM-T90 180 x 180 DPI Wired Thermal
Specifications
22 specifications in 8 groups
Printing
| Specification | Value |
|---|---|
| Print technology | Thermal |
| Maximum resolution | 180 x 180 DPI |
| Print speed | 170 mm/sec |
| Print speed | 53.5 lps |
| Print speed | 6.69 ips |
| Character density | 19.8 cpi |
| Character size | 1.4 x 3.39 mm |
Paper handling
| Specification | Value |
|---|---|
| Maximum roll diameter | 10.2 cm |
| Supported paper width | 58/60/80 mm |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Parallel ports quantity | 1 |
| Serial ports quantity | 1 |
Features
| Specification | Value |
|---|---|
| Built-in barcodes | PDF417, UPC-A, UPC-E |
| Mean time between failures (MTBF) | 360000 h |
| Autocutter durability | 2 million cuts |
| Safety | UL, CSA, TÜV |
| Certification | VCCI, FCC, CE, EMI, AS/NZS 3548 |
Design
| Specification | Value |
|---|---|
| Product colour | White |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.8 kg |
Print technology
| Specification | Value |
|---|---|
| Column capacity | 56/42 |
Other features
| Specification | Value |
|---|---|
| Buffer size | 4 KB |
| Dimensions (WxDxH) | 148 x 140 x 201 mm |
