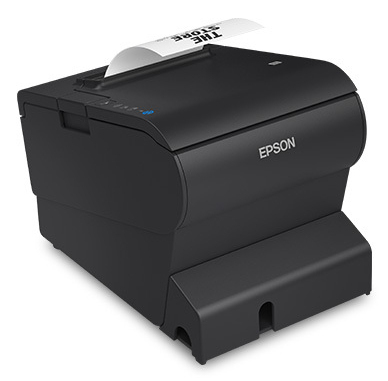

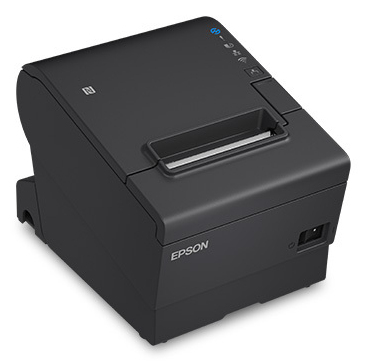

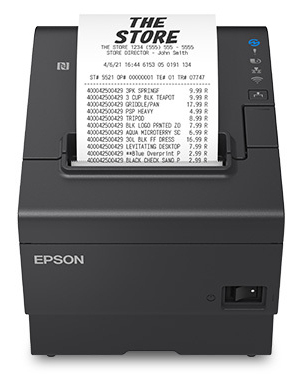

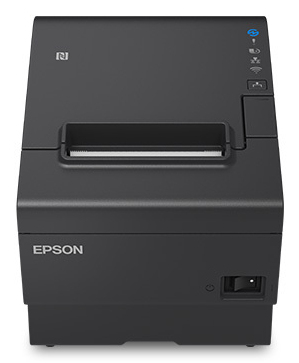

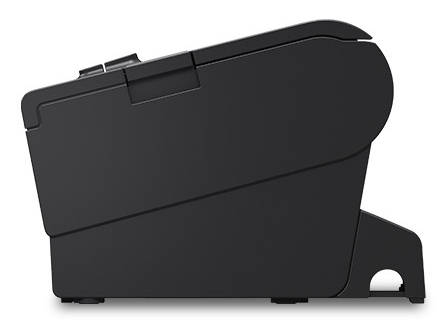

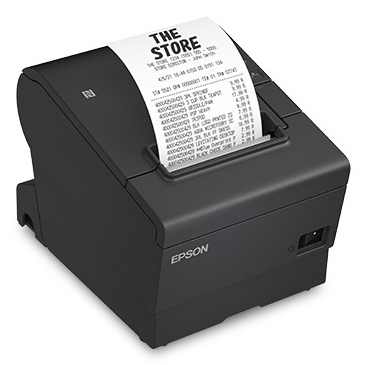

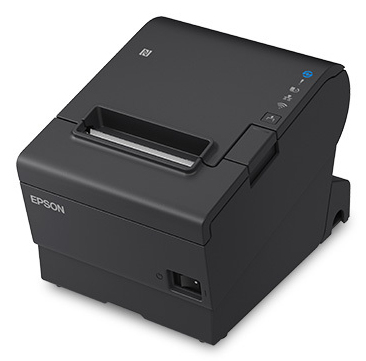

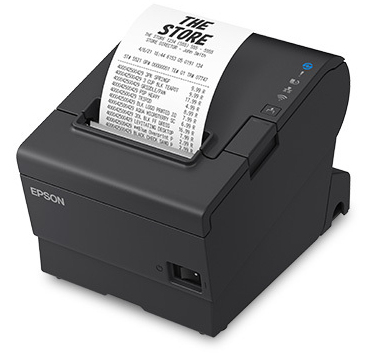

TM-T88VII (152): USB, Ethernet, Fixed Interface, PS, Black
Model TM-T88VIIPart no. C31CJ57622EAN 8715946697192
42 specifications
- ConnectivityWired & Wireless
- TypePOS printer
- Weight1.7 kg
- ColourBlack
- Print technologyThermal
- Maximum roll diameter8.3 cm
Overview
- Connectivity
- Wired & Wireless
- Type
- POS printer
- Weight
- 1.7 kg
- Colour
- Black
- Print technology
- Thermal
- Maximum roll diameter
- 8.3 cm
- Brand
- Epson
- Category
- POS Printer
- Model
- TM-T88VII
- Part numbers
- C31CJ57622, C31CJ57062, C31CJ57072, C31CJ57152
- EAN / UPC
- 8715946697192, 010343969742, 5704174816485, 5715063082355
- Also known as
- Epson TM-T88VII (152): USB, Ethernet, Fixed Interface, PS, Black
Specifications
42 specifications in 10 groups
Printing
| Specification | Value |
|---|---|
| Print technology | Thermal |
| Type | POS printer |
| Maximum resolution | 180 x 180 DPI |
| Print speed | 500 mm/sec |
| Printing characters | Text, Graphic, Barcode, 2D barcode |
| Character sets | ANK |
Paper handling
| Specification | Value |
|---|---|
| Maximum roll diameter | 8.3 cm |
| Supported paper width | 80 mm |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired & Wireless |
| USB port | Yes |
| USB connector | USB Type-A / USB Type-B |
| Serial interface | Yes |
| Parallel connector | No |
| Near Field Communication (NFC) | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
Features
| Specification | Value |
|---|---|
| Built-in barcodes | AZTECCODE, MaxiCode, GS1 DataBar, UPC-A, UPC-E, EAN8, EAN13 |
| Sound pressure level (printing) | 52 dB |
| Sound pressure level (standby) | 52 dB |
| Mean time between failures (MTBF) | 360000 h |
| Cutter | Yes |
| Autocutter durability | 3 million cuts |
| Paper save function | Yes |
| Country of origin | Philippines |
| Mounting position | Horizontal/Vertical |
| Print head life | 200 km |
| Wall mountable | Yes |
| Built-in sensors details | Paper End Sensor, Paper Near End Sensor, Cover Open Sensor, Receipt paper sensor |
| Certification | CE |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 5 - 45 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -10 - 50 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 145 mm |
| Depth | 195 mm |
| Height | 148 mm |
| Weight | 1.7 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 195 mm |
| Package depth | 235 mm |
| Package height | 260 mm |
| Package weight | 2.7 kg |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84433210 |
