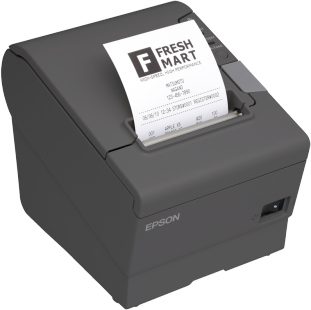

TM-T88V-i (777)
Model TM-T88V-i (777)Part no. C31CA85777EAN 5711045323485
52 specifications
- ConnectivityWired
- TypePOS printer
- Weight1.6 kg
- ColourDark Grey
- Print technologyThermal
- Maximum roll diameter8.3 cm
Overview
- Connectivity
- Wired
- Type
- POS printer
- Weight
- 1.6 kg
- Colour
- Dark Grey
- Print technology
- Thermal
- Maximum roll diameter
- 8.3 cm
- Brand
- Epson
- Category
- POS Printer
- Model
- TM-T88V-i (777)
- Part number
- C31CA85777
- EAN / UPC
- 5711045323485, 8715946504520
- Also known as
- Epson TM-T88V-i Intelligent Printer, EDG, UK
Specifications
52 specifications in 12 groups
Printing
| Specification | Value |
|---|---|
| Print technology | Thermal |
| Type | POS printer |
| Maximum resolution | 180 x 180 DPI |
| Print speed | 300 mm/sec |
| Character size | 0.99 x 2.4 mm |
Paper handling
| Specification | Value |
|---|---|
| Maximum roll diameter | 8.3 cm |
| Supported paper width | 80 mm |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| USB port | Yes |
| USB 2.0 ports quantity | 5 |
| USB connector | Micro-USB,USB Type-A |
| Bluetooth | No |
| Ethernet LAN (RJ-45) ports | 1 |
| Interface | USB 2.0-A (4x), Ethernet interface (100 Base-TX / 10 Base-T), USB 2.0 Micro-AB |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Wi-Fi | No |
Features
| Specification | Value |
|---|---|
| Sound pressure level (printing) | 55 dB |
| Mean time between failures (MTBF) | 180000 h |
| Autocutter durability | 2 million cuts |
| Country of origin | China |
| Certification | CE marking, TÜV |
Design
| Specification | Value |
|---|---|
| Product colour | Dark Grey |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 5 - 45 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -10 - 50 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 145 mm |
| Depth | 195 mm |
| Height | 148 mm |
| Weight | 1.6 kg |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 193 mm |
| Package depth | 242 mm |
| Package height | 283 mm |
| Package weight | 2.92 kg |
Logistics data
| Specification | Value |
|---|---|
| Products per master (outer) case | 4 pc(s) |
| Master (outer) case width | 400 mm |
| Master (outer) case length | 490 mm |
| Master (outer) case height | 295 mm |
| Products per pallet | 96 pc(s) |
| Products per pallet layer | 16 pc(s) |
| Pallet gross width | 80 cm |
| Pallet gross length | 120 cm |
| Pallet gross height | 2.59 m |
| Products per pallet (UK) | 144 pc(s) |
| Products per pallet layer (UK) | 24 pc(s) |
| Pallet width (UK) | 100 cm |
| Pallet length (UK) | 120 cm |
| Pallet height (UK) | 2.59 m |
Technical details
| Specification | Value |
|---|---|
| Box contents | AC adapter |
Other features
| Specification | Value |
|---|---|
| Buffer size | 4 KB |
