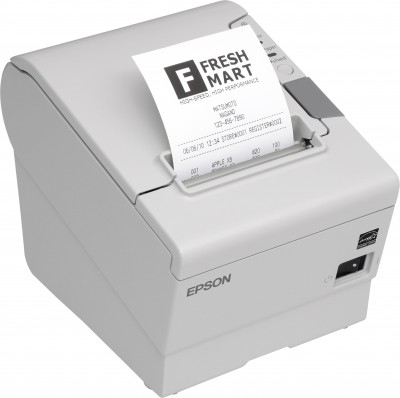

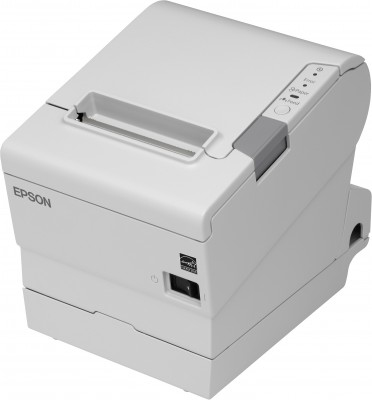

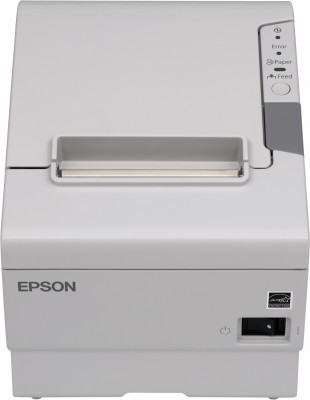

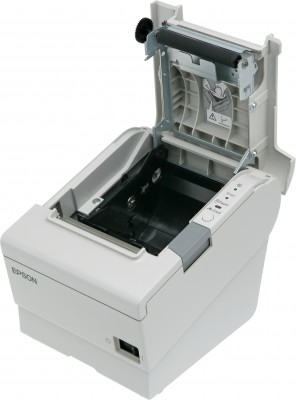

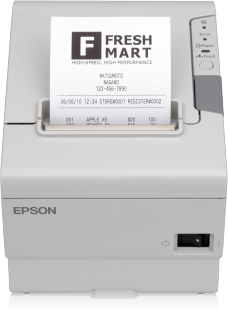

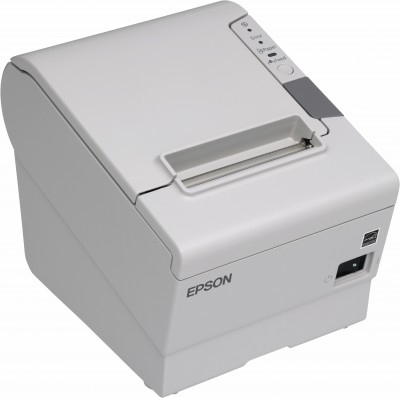

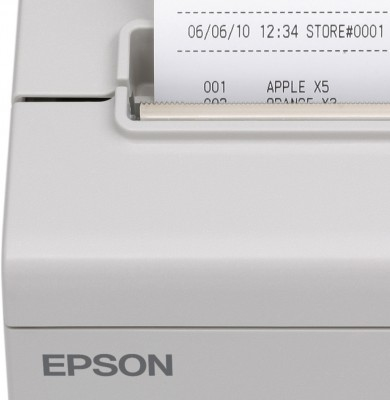

TM-T88V (012): Serial, PS, ECW, EU
Model TM-T88VPart no. C31CA85041EEAN 5901165700253
56 specifications
- ConnectivityWired
- TypePOS printer
- Weight1.6 kg
- ColourWhite
- Print technologyThermal
- Maximum roll diameter8.3 cm
Overview
- Connectivity
- Wired
- Type
- POS printer
- Weight
- 1.6 kg
- Colour
- White
- Print technology
- Thermal
- Maximum roll diameter
- 8.3 cm
- Brand
- Epson
- Category
- POS Printer
- Model
- TM-T88V
- Part numbers
- C31CA85041E, C31CA85012, C31CA85813, C31CA85833, C31CA85042, C31CA85653WB +34 more
- EAN / UPC
- 5901165700253, 3609740086939, 4058154268223, 5054484153023 +56 more
- Also known as
- Epson TM-T88V (012): Serial, PS, ECW, EU
Specifications
56 specifications in 13 groups
Printing
| Specification | Value |
|---|---|
| Print technology | Thermal |
| Type | POS printer |
| Maximum resolution | 180 x 180 DPI |
| Print speed | 300 mm/sec |
| Character density | 20 cpi |
| Character size | 0.99 x 2.4 mm |
Paper handling
| Specification | Value |
|---|---|

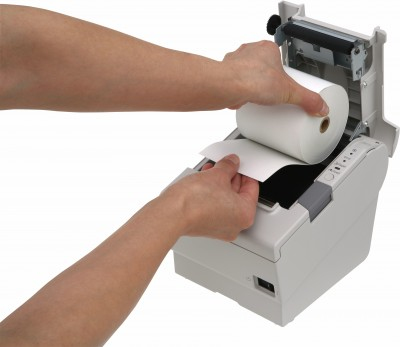

| Maximum roll diameter | 8.3 cm |
| Supported paper width | 80 mm |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| USB connector | USB Type-B |
| Serial interface | Yes |
| Serial interface type | RS-232 |
| Interface | USB 2.0, RS-232, Drawer kick-out |
| Serial ports quantity | 1 |
| Standard interfaces | RS-232, USB 2.0 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Wi-Fi | No |
Features
| Specification | Value |
|---|---|
| Sound pressure level (printing) | 55 dB |
| Mean time between failures (MTBF) | 360000 h |
| Autocutter durability | 2 million cuts |
| Country of origin | China |
Design
| Specification | Value |
|---|---|
| Product colour | White |
Power
| Specification | Value |
|---|---|
| Power consumption | 1800 mA |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 5 - 45 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -10 - 50 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 145 mm |
| Depth | 195 mm |
| Height | 148 mm |
| Weight | 1.6 kg |
Packaging data
| Specification | Value |
|---|---|
| Cables included | AC |
| Quantity per pack | 1 pc(s) |
| Package width | 200 mm |
| Package depth | 245 mm |
| Package height | 230 mm |
| Package weight | 2.56 kg |
Print technology
| Specification | Value |
|---|---|
| Column capacity | 56 / 42 |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84433210 |
| Products per master (outer) case | 4 pc(s) |
| Master (outer) case width | 400 mm |
| Master (outer) case length | 490 mm |
| Master (outer) case height | 255 mm |
| Products per pallet | 128 pc(s) |
| Products per pallet layer | 16 pc(s) |
| Pallet gross width | 80 cm |
| Pallet gross length | 100 cm |
| Pallet gross height | 2.04 m |
| Products per pallet (UK) | 192 pc(s) |
| Products per pallet layer (UK) | 24 pc(s) |
| Pallet width (UK) | 100 cm |
| Pallet length (UK) | 120 cm |
| Pallet height (UK) | 2.04 m |
Technical details
| Specification | Value |
|---|---|
| Box contents | 58-mm width paper guide plate, Connector Cover, Main unit, PS-180 & AC cable, Power switch cover, Thermal roll paper, User manual |
