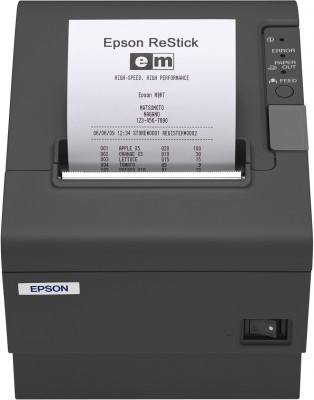

TM-T88IV ReStick
Model TM-T88IV ReStickPart no. C31C636345A2EAN 8715946459677
52 specifications
- ConnectivityWired
- TypePOS printer
- Weight1.8 kg
- ColourDark Grey
- Print technologyThermal
- Maximum roll diameter8.3 cm
Overview
- Connectivity
- Wired
- Type
- POS printer
- Weight
- 1.8 kg
- Colour
- Dark Grey
- Print technology
- Thermal
- Maximum roll diameter
- 8.3 cm
- Brand
- Epson
- Category
- POS Printer
- Model
- TM-T88IV ReStick
- Part numbers
- C31C636345A2, C31C636366, C31C636356, C31C636346A1
- EAN / UPC
- 8715946459677, 814556013748, 3540260055572, 4058154268216 +12 more
- Also known as
- Epson TM-T88IV ReStick (366): Serial, PS, EDG, Buzzer, EU
Specifications
52 specifications in 13 groups
Printing
| Specification | Value |
|---|---|
| Print technology | Thermal |
| Type | POS printer |
| Maximum resolution | 203 x 203 DPI |
| Print speed | 177 mm/sec |
| Print speed | 47.2 lps |
Paper handling
| Specification | Value |
|---|---|
| Maximum roll diameter | 8.3 cm |
| Supported paper width | 80, 58 mm |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Serial interface | Yes |
| Serial interface type | RS-232 |
| Interface | RS-232, Drawer kick-out |
| Serial ports quantity | 1 |
| Standard interfaces | RS-232 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Wi-Fi | No |
Features
| Specification | Value |
|---|---|
| Sound pressure level (printing) | 56 dB |
| Mean time between failures (MTBF) | 360000 h |
| Autocutter durability | 1.5 million cuts |
| Country of origin | Japan |
Design
| Specification | Value |
|---|---|
| Product colour | Dark Grey |
Power
| Specification | Value |
|---|---|
| Input current | 1.6 A |
| Power supply type | DC |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 5 - 45 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -10 - 50 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 145 mm |
| Depth | 195 mm |
| Height | 148 mm |
| Weight | 1.8 kg |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 193 mm |
| Package depth | 257 mm |
| Package height | 241 mm |
| Package weight | 2.83 kg |
Logistics data
| Specification | Value |
|---|---|
| Products per master (outer) case | 4 pc(s) |
| Master (outer) case width | 400 mm |
| Master (outer) case length | 490 mm |
| Master (outer) case height | 255 mm |
| Products per pallet | 128 pc(s) |
| Products per pallet layer | 16 pc(s) |
| Pallet gross width | 80 cm |
| Pallet gross length | 120 cm |
| Pallet gross height | 183.7 cm |
| Products per pallet (UK) | 192 pc(s) |
| Products per pallet layer (UK) | 24 pc(s) |
| Pallet width (UK) | 100 cm |
| Pallet length (UK) | 120 cm |
| Pallet height (UK) | 2.25 m |
Technical details
| Specification | Value |
|---|---|
| Box contents | Connector Cover, Main unit, PS-180 & AC cable, Power switch cover, Thermal roll paper, User manual |
Other features
| Specification | Value |
|---|---|
| Buffer size | 4 KB |
| Dimensions (WxDxH) | 145 x 195 x 148 mm |
