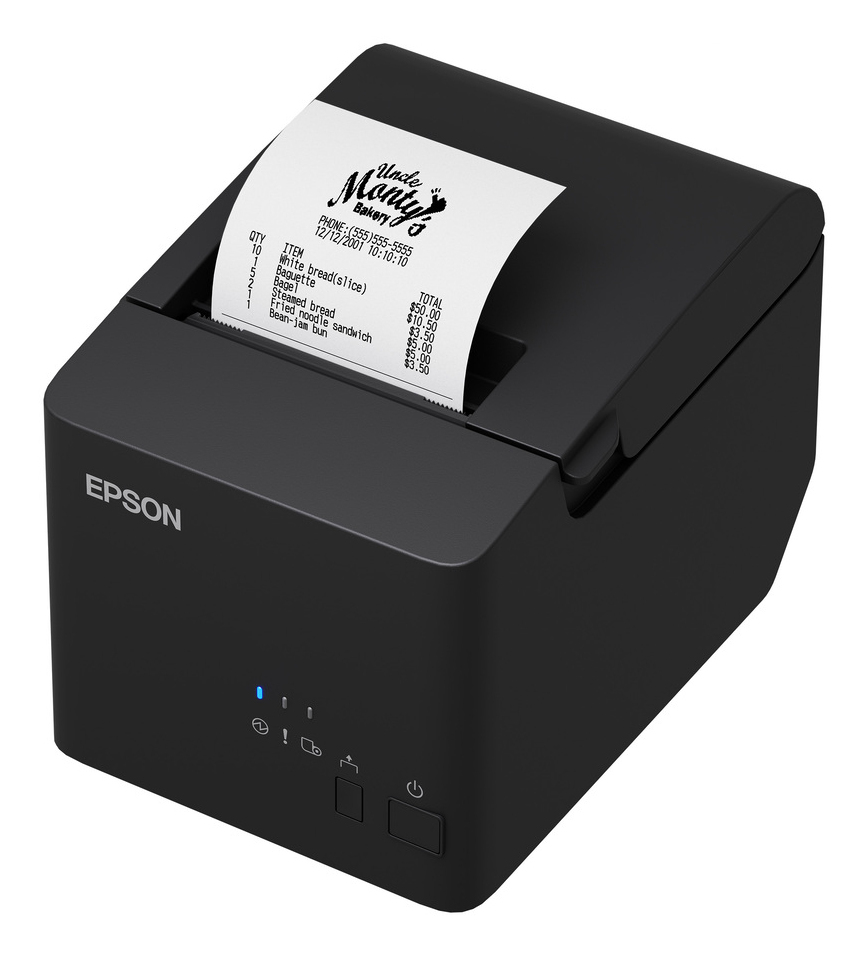

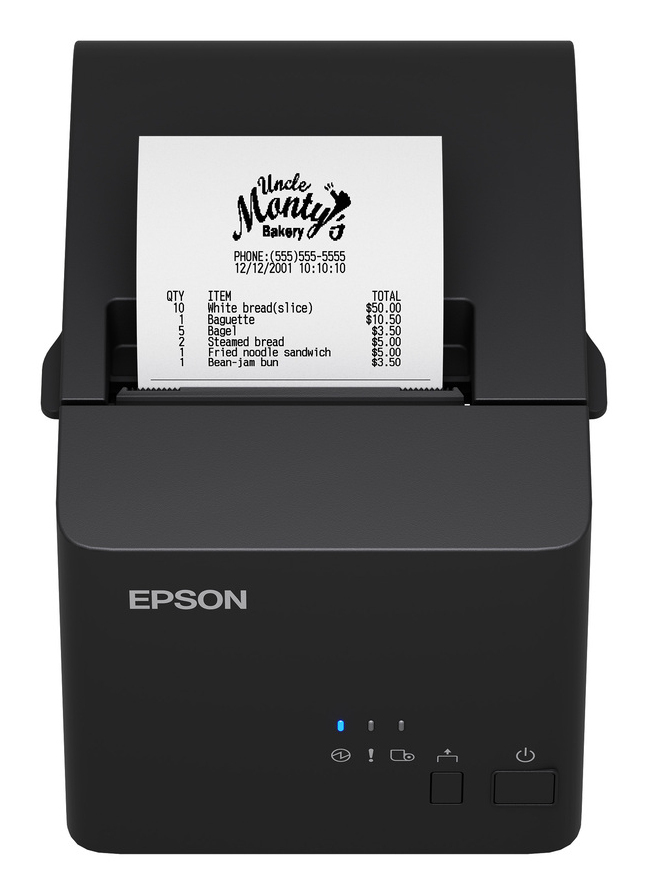

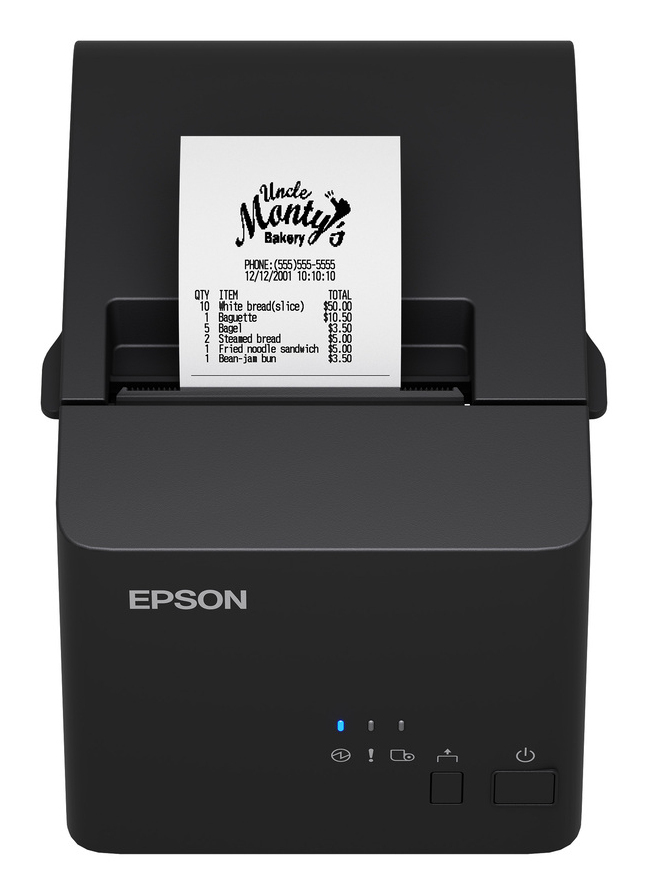

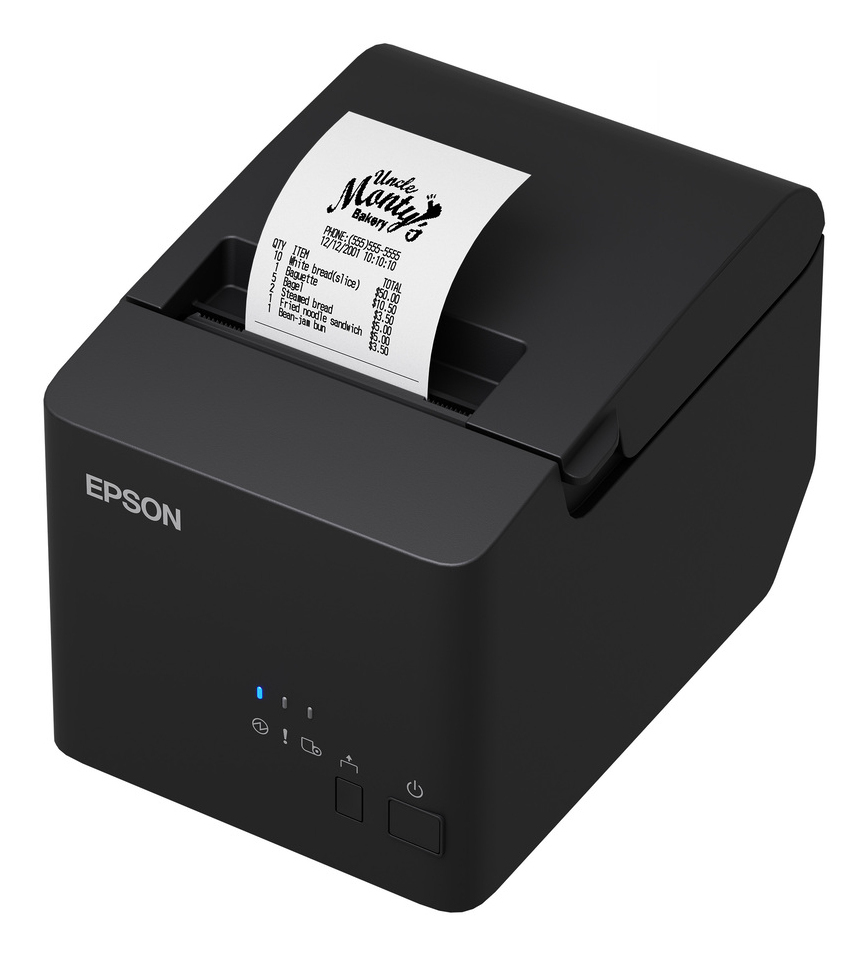

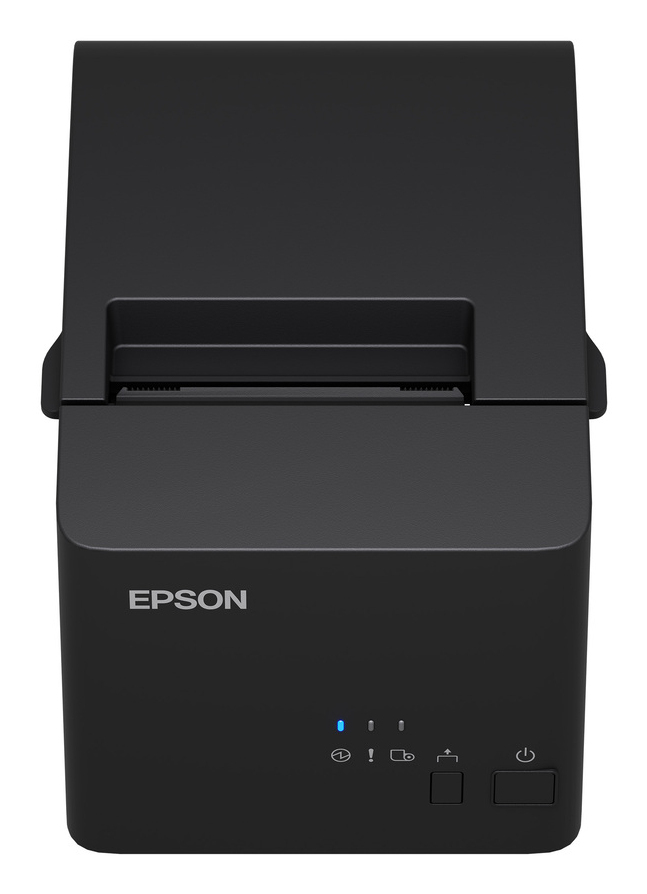

TM-T20IV(102):USB+Serial+Ether, PS, Blk, EU, RS-232
Model TM-T82X-IIPart no. C31CL45421
42 specifications
- ConnectivityWired
- TypePOS printer
- Weight1.5 kg
- ColourNo
- Print technologyThermal
- Maximum roll diameter8.3 cm
Overview
- Connectivity
- Wired
- Type
- POS printer
- Weight
- 1.5 kg
- Colour
- No
- Print technology
- Thermal
- Maximum roll diameter
- 8.3 cm
- Brand
- Epson
- Category
- POS Printer
- Model
- TM-T82X-II
- Part numbers
- C31CL45421, C31CL45422
- Also known as
- Epson TM-T20IV(102):USB+Serial+Ether, PS, Blk, EU, RS-232
Specifications
42 specifications in 13 groups
Printing
| Specification | Value |
|---|---|
| Print technology | Thermal |
| Type | POS printer |
| Colour | No |
| Maximum resolution | 203 x 203 DPI |
| Number of printable dots | 576 dot |
| Print speed | 250 mm/sec |
| Printing characters | Graphic |
Paper handling
| Specification | Value |
|---|---|
| Maximum roll diameter | 8.3 cm |
| Supported paper width | 79.5 mm |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| USB connector | USB Type-A |
| Serial interface | Yes |
Network
| Specification | Value |
|---|---|
| Wi-Fi | No |
Features
| Specification | Value |
|---|---|
| Built-in barcodes | CODABAR (NW-7), Code 39, Code 93, EAN13, EAN8, GS1 DataBar, GS1-128, ITF, UPC-A, UPC-E |
| Sound pressure level (printing) | 55 dB |
| Mean time between failures (MTBF) | 360000 h |
| Cutter | Yes |
| Half-cutter | Yes |
| Autocutter durability | 1.5 million cuts |
| Paper save function | Yes |
| Print head life | 100 km |
| Wall mountable | Yes |
| Built-in sensors details | Paper End Sensor |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| AC input voltage | 100 - 230 V |
| AC input frequency | 50/60 Hz |
| Power consumption (standby) | 0.96 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 5 - 45 °C |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mobile operating systems supported | Android, iOS |
| Linux operating systems supported | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 140 mm |
| Depth | 192 mm |
| Height | 137 mm |
| Weight | 1.5 kg |
Packaging data
| Specification | Value |
|---|---|
| Cables included | AC |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | Federal Communications Commission (FCC), ICES |
Other features
| Specification | Value |
|---|---|
| Mean cycles between failures (MCBF) | 60000000 |
