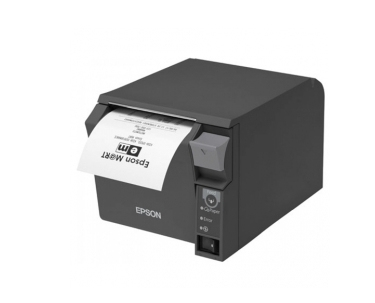

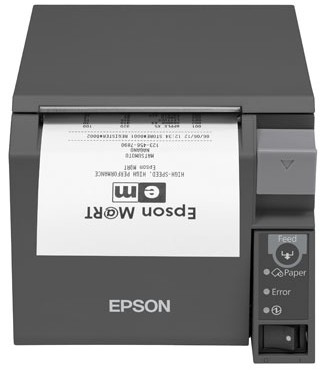

Epson TM-T70II (025C0)
Model TM-T70II (025C0)Part no. C31CD38025C0EAN 8715946620534
58 specifications
- ConnectivityWired
- TypePOS printer
- Weight2.17 kg
- ColourNo
- Print technologyThermal
- Maximum roll diameter8.3 cm
Overview
- Connectivity
- Wired
- Type
- POS printer
- Weight
- 2.17 kg
- Colour
- No
- Print technology
- Thermal
- Maximum roll diameter
- 8.3 cm
- Brand
- Epson
- Category
- POS Printer
- Model
- TM-T70II (025C0)
- Part number
- C31CD38025C0
- EAN / UPC
- 8715946620534
- Also known as
- Epson TM-T70II (025C0): UB-E04 + Built-in USB, PS, Black, EU
Specifications
58 specifications in 14 groups
Printing
| Specification | Value |
|---|---|
| Print technology | Thermal |
| Type | POS printer |
| Colour | No |
| Maximum resolution | 180 x 180 DPI |
| Print speed | 250 mm/sec |
| Print speed (receipt) | 250 mm/sec |
| Character density | 20 cpi |
| Character sets | ANK |
Paper handling
| Specification | Value |
|---|---|
| Maximum roll diameter | 8.3 cm |
| Supported paper width | 80, 42 / 56 mm |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| USB port | Yes |
| USB connector | USB Type-B |
| Serial interface | No |
| Interface | USB 2.0, Drawer kick-out, Ethernet interface (100 Base-TX / 10 Base-T), WLAN (optional) |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Wi-Fi | No |
Features
| Specification | Value |
|---|---|
| Sound pressure level (printing) | 55 dB |
| Mean time between failures (MTBF) | 360000 h |
| Cutter | Yes |
| Half-cutter | Yes |
| Autocutter durability | 1.7 million cuts |
| Country of origin | China |
| Print head life | 120 km |
| Built-in sensors details | Roll paper cover open sensor, Paper End Sensor, Paper Near End Sensor |
| Safety | DE, TÜV, GOST-R |
| Certification | CE, GOST-R, EN55022-Class A |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| AC input voltage | 24 V |
| Power plug type | Type C |
| Power consumption | 100 mA |
| Power supply type | AC |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 5 - 45 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -10 - 50 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 125 mm |
| Depth | 194 mm |
| Height | 114 mm |
| Weight | 2.17 kg |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 190 mm |
| Package depth | 250 mm |
| Package height | 235 mm |
| Package weight | 2.86 kg |
Print technology
| Specification | Value |
|---|---|
| Column capacity | 56/42 |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84433210 |
Technical details
| Specification | Value |
|---|---|
| Technology | Thermal Line |
| Voltage | 24 V |
| Font styles | ANK |
| Box contents | CD Manual, Main unit, PS-190 & AC cable, Power switch cover, Roll paper, Setup guide, Warranty Documents |
| Changeable interface | Yes |
| Power consumption | Standby:0.1 A, Mean:2 A |
Other features
| Specification | Value |
|---|---|
| Buffer size | 4 KB |
| Electromagnetic compatibility | CE marking, GOST-R, EN55022 Class A |
| Mean cycles between failures (MCBF) | 65000000 |
| Print head life | 120 km - 120.000.000 Impulse |
Compare Epson TM-T70II (025C0)
Compare any products- Epson TM-T70II (025C0) vsEpson TM-L90LF (662A0)Compare specs
- Epson TM-T70II (025C0) vsEpson TM-T70II (024C1)Compare specs
- Epson TM-T70II (025C0) vsEpson TM-T70II (023B2)Compare specs
- Epson TM-T70II (025C0) vsEpson TM-T70II (022A1)Compare specs

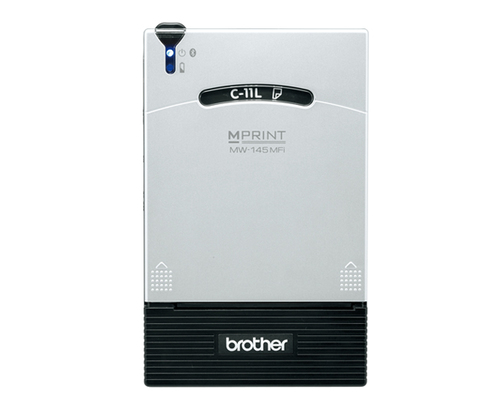

- Epson TM-T70II (025C0) vsBrother MW-145MFI POS printerCompare specs

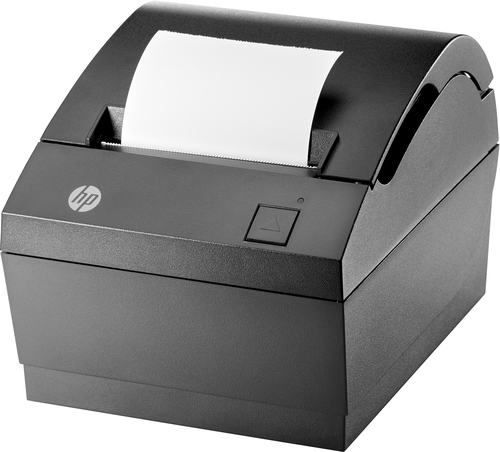

- Epson TM-T70II (025C0) vsHP Value Serial/USB Receipt Printer IICompare specs

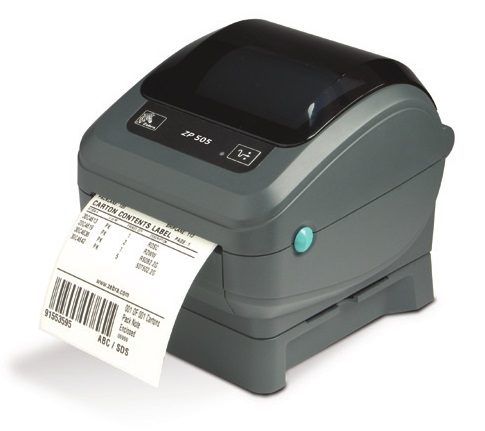

- Epson TM-T70II (025C0) vsZebra ZP 505Compare specs

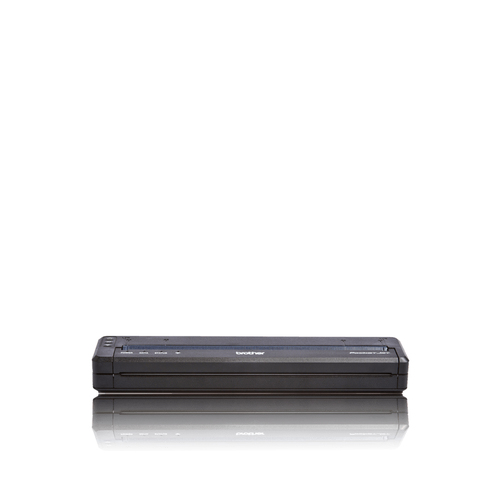

- Epson TM-T70II (025C0) vsBrother PJ-773 POS printerCompare specs
