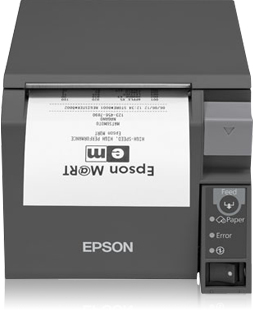

Epson TM-T70II (025A1)
Model TM-T70II (025A1)Part no. C31CD38025A1EAN 8715946546865
43 specifications
- ConnectivityWired
- TypePOS printer
- Weight2.17 kg
- ColourNo
- Print technologyThermal
- Supported paper width80, 42 / 56 mm
Overview
- Connectivity
- Wired
- Type
- POS printer
- Weight
- 2.17 kg
- Colour
- No
- Print technology
- Thermal
- Supported paper width
- 80, 42 / 56 mm
- Brand
- Epson
- Category
- POS Printer
- Model
- TM-T70II (025A1)
- Part number
- C31CD38025A1
- EAN / UPC
- 8715946546865
- Also known as
- Epson TM-T70II (025A1): Serial + Built-in USB, PS, Black, UK
Specifications
43 specifications in 13 groups
Printing
| Specification | Value |
|---|---|
| Print technology | Thermal |
| Type | POS printer |
| Colour | No |
| Maximum resolution | 180 x 180 DPI |
| Print speed | 250 mm/sec |
| Character density | 20 cpi |
Paper handling
| Specification | Value |
|---|---|
| Supported paper width | 80, 42 / 56 mm |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| USB connector | USB Type-B |
| Interface | USB 2.0, Drawer kick-out, RS-232 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Wi-Fi | No |
Features
| Specification | Value |
|---|---|
| Sound pressure level (printing) | 55 dB |
| Mean time between failures (MTBF) | 360000 h |
| Cutter | Yes |
| Autocutter durability | 1.7 million cuts |
| Country of origin | China |
| Print head life | 120 km |
| Built-in sensors details | Roll paper cover open sensor, Paper End Sensor, Paper Near End Sensor |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| Battery voltage | 24 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 5 - 45 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -10 - 50 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 125 mm |
| Depth | 194 mm |
| Height | 114 mm |
| Weight | 2.17 kg |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 190 mm |
| Package depth | 250 mm |
| Package height | 235 mm |
| Package weight | 2.7 kg |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84433210 |
Technical details
| Specification | Value |
|---|---|
| Technology | Thermal Line |
| Voltage | 24 V |
| Font styles | ANK |
| Box contents | CD Manual, Main unit, PS-190 & AC cable, Power switch cover, Roll paper, Setup guide, Warranty Documents |
| Power consumption | Standby:0.1 A, Mean:2 A |
Other features
| Specification | Value |
|---|---|
| Buffer size | 4 KB |
Compare Epson TM-T70II (025A1)

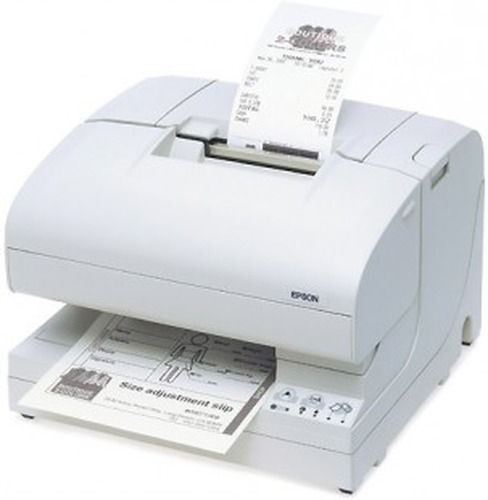

Compare any products- Epson TM-T70II (025A1) vsEpson TM-J7500 (361)Compare specs

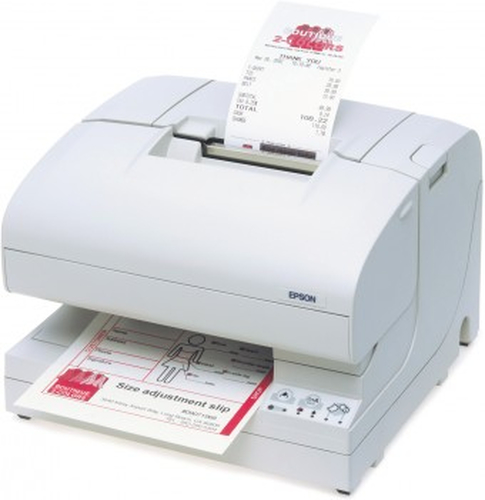

- Epson TM-T70II (025A1) vsEpson TM-J7500P (361)Compare specs

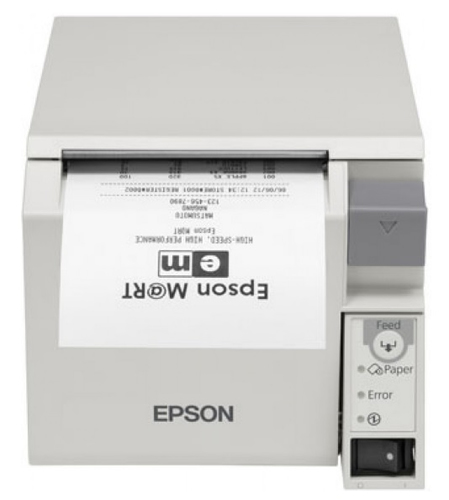

- Epson TM-T70II (025A1) vsEpson TM-T70II (971A0)Compare specs
- Epson TM-T70II (025A1) vsEpson TM-T70II (026B1)Compare specs

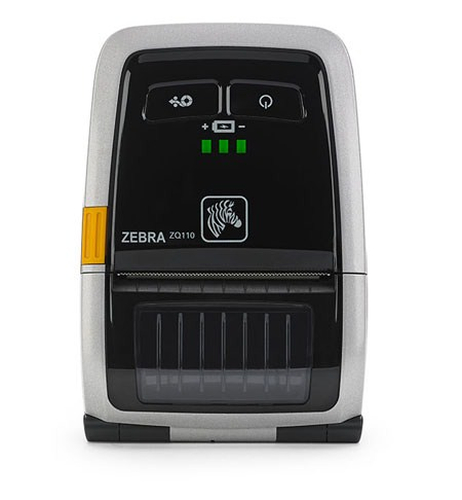

- Epson TM-T70II (025A1) vsZebra ZQ110 Wired & Wireless Direct thermal Mobile printerCompare specs

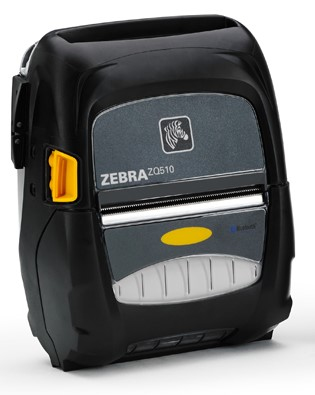

- Epson TM-T70II (025A1) vsZebra ZQ510 203 x 203 DPI Wired & Wireless Direct thermal Mobile printerCompare specs
