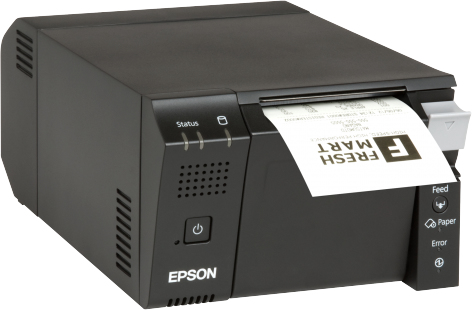

Epson TM-T70II (024A1): Ethernet + Built-in USB, PS, EDG, UK
Model TM-T70IIPart no. C31CD38A9801EAN 8715946545561
46 specifications
- ConnectivityWired
- TypePOS printer
- Weight1.7 kg
- ColourDark Grey
- Print technologyThermal
- Ethernet LANYes
Overview
- Connectivity
- Wired
- Type
- POS printer
- Weight
- 1.7 kg
- Colour
- Dark Grey
- Print technology
- Thermal
- Ethernet LAN
- Yes
- Brand
- Epson
- Category
- POS Printer
- Model
- TM-T70II
- Part numbers
- C31CD38A9801, C31CD38024A1, C31CD38032A0, C31CD38A9971, C31CD38A9991, C31CD3803P +17 more
- EAN / UPC
- 8715946545561, 5054533865761, 5712505931943, 8715946536668 +28 more
- Also known as
- Epson TM-T70II (024A1): Ethernet + Built-in USB, PS, EDG, UK
Specifications
46 specifications in 12 groups
Printing
| Specification | Value |
|---|---|
| Print technology | Thermal |
| Type | POS printer |
| Maximum resolution | 180 x 180 DPI |
| Print speed | 250 mm/sec |
| Character size | 128 x 43 mm |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| USB port | Yes |
| Parallel connector | Yes |
| Interface | USB 2.0, Ethernet interface (100 Base-TX / 10 Base-T), Drawer kick-out |
| Standard interfaces | Ethernet, Parallel, USB 2.0, Wireless LAN |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
Features
| Specification | Value |
|---|---|
| Built-in barcodes | 2D, CODABAR (NW-7), Code 39, Code 93, Code-128 Codabar Library, EAN13, GS1 DataBar, GS1-128, ITF, MaxiCode, PDF417, QR Code, UPC-A, UPC-E |
| Sound pressure level (printing) | 55 dB |
| Mean time between failures (MTBF) | 360000 h |
| Autocutter durability | 1.7 million cuts |
| Country of origin | China |
Design
| Specification | Value |
|---|---|
| Product colour | Dark Grey |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption | 2000 mA |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 5 - 45 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -10 - 50 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 125 mm |
| Depth | 194 mm |
| Height | 114 mm |
| Weight | 1.7 kg |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 190 mm |
| Package depth | 250 mm |
| Package height | 240 mm |
| Package weight | 2.64 kg |
Print technology
| Specification | Value |
|---|---|
| Column capacity | 80mm: 42/56 |
Logistics data
| Specification | Value |
|---|---|
| Products per pallet | 112 pc(s) |
| Products per pallet layer | 16 pc(s) |
| Pallet gross width | 80 cm |
| Pallet gross length | 120 cm |
| Pallet gross height | 181.6 cm |
| Products per pallet (UK) | 168 pc(s) |
| Products per pallet layer (UK) | 24 pc(s) |
| Pallet width (UK) | 100 cm |
| Pallet length (UK) | 120 cm |
| Pallet height (UK) | 181.6 cm |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 125 x 194 x 114 mm |
