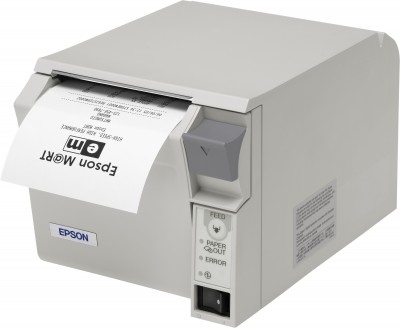

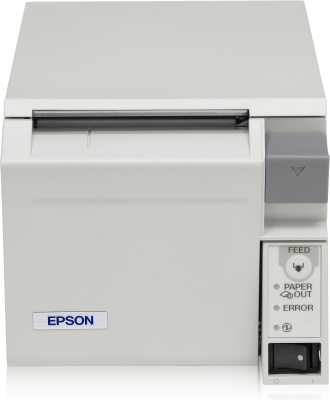

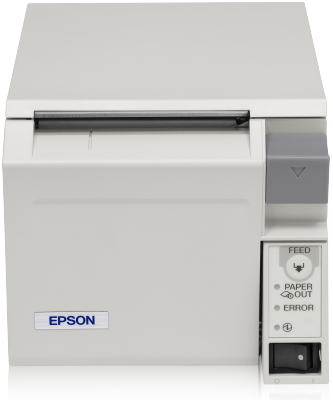

TM-T70-i (774)
Model TM-T70-i (774)Part no. C31C637774EAN 5712505016336
36 specifications
- ConnectivityWired
- TypePOS printer
- Weight1.8 kg
- ColourWhite
- Print technologyThermal
- Supported paper width80 mm
Overview
- Connectivity
- Wired
- Type
- POS printer
- Weight
- 1.8 kg
- Colour
- White
- Print technology
- Thermal
- Supported paper width
- 80 mm
- Brand
- Epson
- Category
- POS Printer
- Model
- TM-T70-i (774)
- Part number
- C31C637774
- EAN / UPC
- 5712505016336, 8715946504575
- Also known as
- Epson TM-T70-i Intelligent Printer, ECW, EU
Specifications
36 specifications in 11 groups
Printing
| Specification | Value |
|---|---|
| Print technology | Thermal |
| Type | POS printer |
| Maximum resolution | 180 x 180 DPI |
| Print speed | 170 mm/sec |
| Character size | 1.27 x 2.4 mm |
Paper handling
| Specification | Value |
|---|---|
| Supported paper width | 80 mm |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| USB port | Yes |
| USB 2.0 ports quantity | 5 |
| USB connector | Micro-USB,USB Type-A |
| Bluetooth | No |
| Ethernet LAN (RJ-45) ports | 1 |
| Interface | USB 2.0-A (4x), Ethernet interface (100 Base-TX / 10 Base-T), USB 2.0 Micro-AB |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Wi-Fi | No |
Features
| Specification | Value |
|---|---|
| Sound pressure level (printing) | 55 dB |
| Mean time between failures (MTBF) | 180000 h |
| Autocutter durability | 1.5 million cuts |
| Country of origin | China |
Design
| Specification | Value |
|---|---|
| Product colour | White |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 5 - 45 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -10 - 50 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 125 mm |
| Depth | 194 mm |
| Height | 114 mm |
| Weight | 1.8 kg |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 193 mm |
| Package depth | 257 mm |
| Package height | 273 mm |
| Package weight | 3.1 kg |
Technical details
| Specification | Value |
|---|---|
| Box contents | AC adapter |
Other features
| Specification | Value |
|---|---|
| Buffer size | 4 KB |
