TM-T20III (011A0)
Model TM-T20III (011A0)Part no. C31CH51011A0EAN 8715946680453
67 specifications
- ConnectivityWired
- TypePOS printer
- Weight1.7 kg
- ColourNo
- Print technologyDirect thermal
- Maximum roll diameter8.3 cm
Overview
- Connectivity
- Wired
- Type
- POS printer
- Weight
- 1.7 kg
- Colour
- No
- Print technology
- Direct thermal
- Maximum roll diameter
- 8.3 cm
- Brand
- Epson
- Category
- POS Printer
- Model
- TM-T20III (011A0)
- Part numbers
- C31CH51011A0, C31CH51011A0-4PACK
- EAN / UPC
- 8715946680453
- Also known as
- Epson TM-T20III (011A0): USB + Serial, PS, Blk, UK
Specifications
67 specifications in 14 groups
Printing
| Specification | Value |
|---|---|
| Print technology | Direct thermal |
| Type | POS printer |
| Colour | No |
| Maximum resolution | 203 x 203 DPI |
| Print speed | 250 mm/sec |
| Print speed (receipt) | 250 mm/sec |
| Character density | 22.6 cpi |
| Printing characters | Text, Graphic, Barcode |
| Character sets | ANK |
Paper handling
| Specification | Value |
|---|---|
| Maximum roll diameter | 8.3 cm |
| Supported paper width | 80 mm |

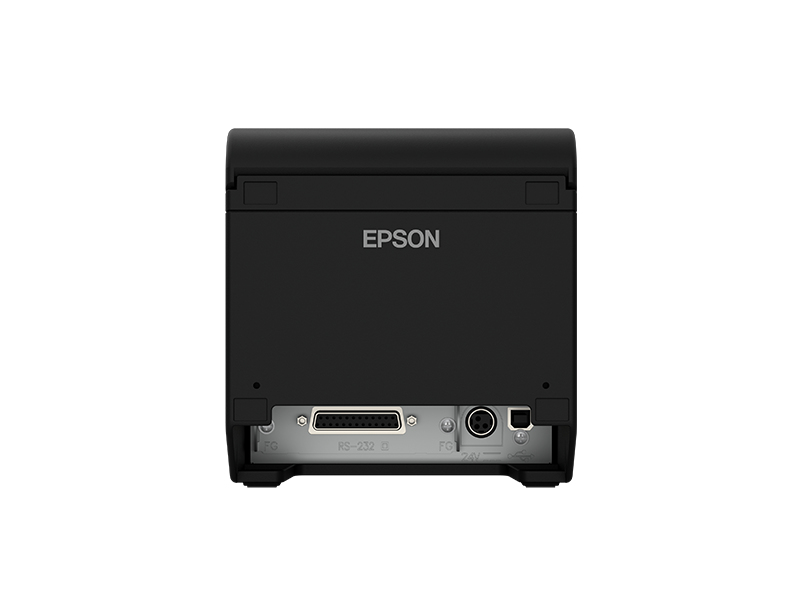

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| USB port | Yes |
| USB connector | USB Type-B |
| Serial interface | Yes |
| Serial interface type | RS-232 |
| Interface | RS-232, USB 2.0, Drawer kick-out |
| Standard interfaces | RS-232, USB 2.0 |
Features
| Specification | Value |
|---|---|
| Sound pressure level (printing) | 55 dB |
| Mean time between failures (MTBF) | 360000 h |
| Cutter | Yes |
| Half-cutter | Yes |
| Autocutter durability | 1.5 million cuts |
| Paper save function | Yes |
| Country of origin | Philippines |
| Mounting position | Horizontal/Vertical |
| Print head life | 150 km |
| Wall mountable | Yes |
| Built-in sensors details | Paper End Sensor, Paper Near End Sensor |
| Safety | UL, CSA, TÜV |
| Certification | FCC-Class A, CE, EN55022-Class A |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| AC input voltage | 24 V |
| Power consumption | 1800 mA |
| Power consumption (standby) | 100 mA |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 5 - 45 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -10 - 50 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 140 mm |
| Depth | 199 mm |
| Height | 146 mm |
| Weight | 1.7 kg |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 192 mm |
| Package depth | 335 mm |
| Package height | 280 mm |
| Package weight | 2.2 kg |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
Print technology
| Specification | Value |
|---|---|
| Column capacity | 48/64 |
Logistics data
| Specification | Value |
|---|---|
| Pallet weight (UK) | 0 g |
| Harmonized System (HS) code | 84433210 |
| Products per master (outer) case | 4 pc(s) |
| Master (outer) case width | 400 mm |
| Master (outer) case length | 490 mm |
| Master (outer) case height | 295 mm |
| Master (outer) case gross weight | 0 g |
| Products per pallet | 112 pc(s) |
| Products per pallet layer | 16 pc(s) |
| Pallet gross weight | 0 g |
| Products per pallet (UK) | 168 pc(s) |
| Products per pallet layer (UK) | 24 pc(s) |
Technical details
| Specification | Value |
|---|---|
| Box contents | AC adapter, C1, CD Manual, Main unit, Paper roll spacer, Power switch cover, Roll paper, Rubber feet, Setup guide, UK AC cable, USB cable, Wall hanging bracket, Warranty document |
| Lifetime | 15000000 lines |
Other features
| Specification | Value |
|---|---|
| Buffer size | 4 KB |
| Mean cycles between failures (MCBF) | 60000000 |
| Print head life | 150.000.000 Impulse |
