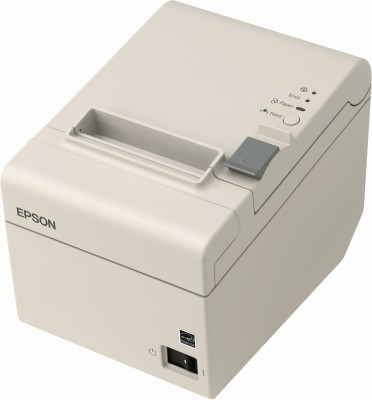

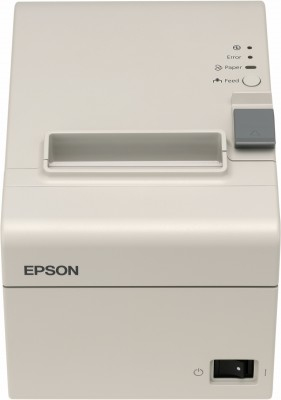

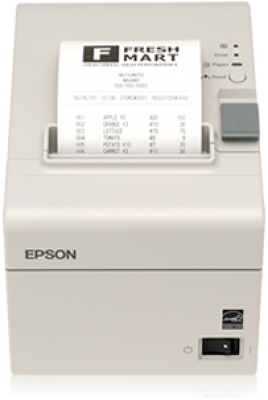

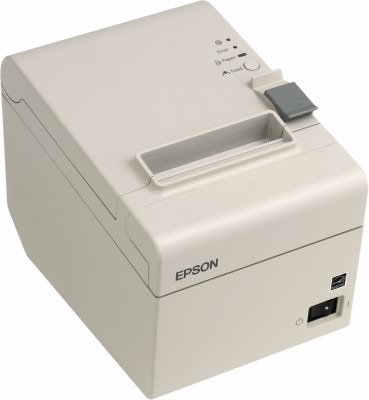

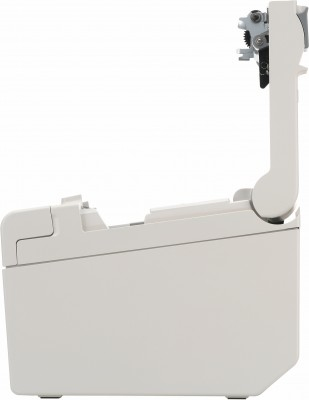

TM-T20 (101): USB, PS, ECW, EU
Model TM-T20Part no. C31CH26082EAN 8715946497310
54 specifications
- ConnectivityWired
- TypePOS printer
- Weight1.7 kg
- ColourWhite
- Print technologyThermal
- Maximum roll diameter8.3 cm
Overview
- Connectivity
- Wired
- Type
- POS printer
- Weight
- 1.7 kg
- Colour
- White
- Print technology
- Thermal
- Maximum roll diameter
- 8.3 cm
- Brand
- Epson
- Category
- POS Printer
- Model
- TM-T20
- Part numbers
- C31CH26082, C31CB10101, C31CB10002, C31CB10121, C31CB10103
- EAN / UPC
- 8715946497310, 3540260035819, 5711045554766, 8715946468167 +3 more
- Also known as
- Epson TM-T20 (101): USB, PS, ECW, EU
Specifications
54 specifications in 14 groups
Printing
| Specification | Value |
|---|---|
| Print technology | Thermal |
| Type | POS printer |
| Print speed | 150 mm/sec |
| Print speed | 6.9 ips |
| Character density | 22.6 cpi |
| Character size | 0.88 x 2.13 mm |
Paper handling
| Specification | Value |
|---|---|
| Maximum roll diameter | 8.3 cm |
| Supported paper width | 80, 58 mm |

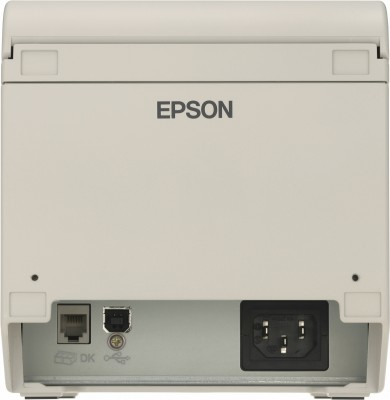

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| Interface | Drawer kick-out, USB 2.0 |
| Standard interfaces | USB 2.0 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Wi-Fi | No |
Features
| Specification | Value |
|---|---|
| Built-in barcodes | 2D, CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 93, EAN13, EAN8, ITF-14, MaxiCode, PDF417, QR Code, UPC-A, UPC-E |
| Sound pressure level (printing) | 55 dB |
| Mean time between failures (MTBF) | 360000 h |
| Autocutter durability | 1.5 million cuts |
| Country of origin | Japan |
| Safety | UL/CSA/EN/TUV/GOST-R |
| Certification | FCC, VCCI, CE, AS / NZS CISPR22, GOST-R |
Design
| Specification | Value |
|---|---|
| Product colour | White |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 1 A |
| Power supply type | AC |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 5 - 45 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -10 - 50 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 140 mm |
| Depth | 199 mm |
| Height | 146 mm |
| Weight | 1.7 kg |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 193 mm |
| Package depth | 242 mm |
| Package height | 236 mm |
| Package weight | 2.38 kg |
Print technology
| Specification | Value |
|---|---|
| Column capacity | 80mm: 48/64; 58mm: 35/46 |
Logistics data
| Specification | Value |
|---|---|
| Products per pallet | 128 pc(s) |
| Products per pallet layer | 16 pc(s) |
| Pallet gross width | 80 cm |
| Pallet gross length | 100 cm |
| Pallet gross height | 199 cm |
| Products per pallet (UK) | 192 pc(s) |
| Products per pallet layer (UK) | 24 pc(s) |
| Pallet width (UK) | 100 cm |
| Pallet length (UK) | 120 cm |
| Pallet height (UK) | 199 cm |
Technical details
| Specification | Value |
|---|---|

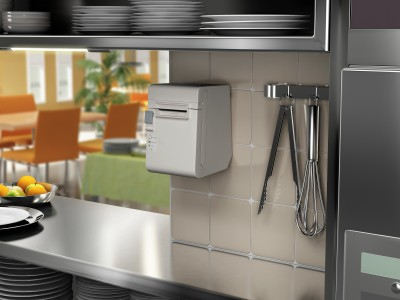

| Box contents | 58-mm width paper guide plate, Driver and utilities, Main unit, Power cable, Power switch cover, Rubber feet, Setup guide, Thermal roll paper, USB cable, User manual (CD), Wall hanging bracket |
Other features
| Specification | Value |
|---|---|
| Buffer size | 4 KB |
| Dimensions (WxDxH) | 140 x 199 x 146 mm |
