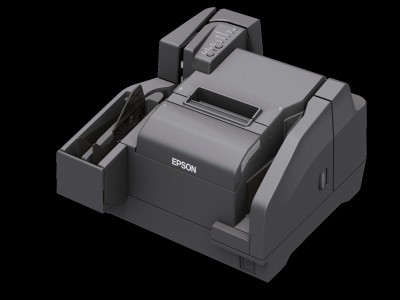

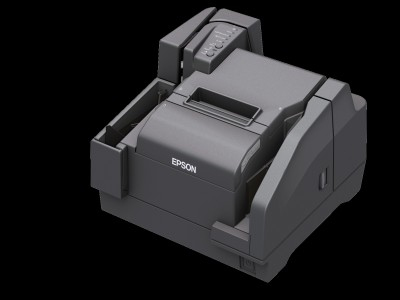

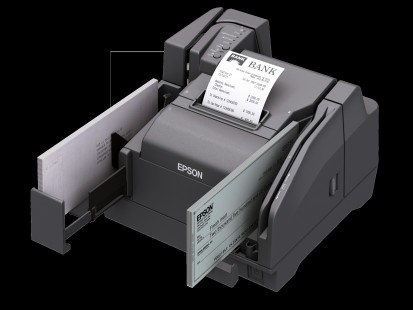

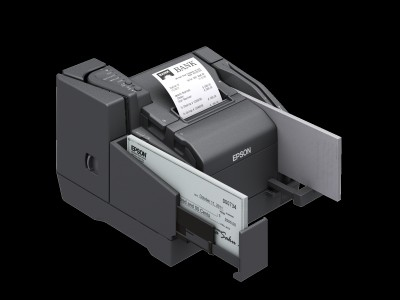

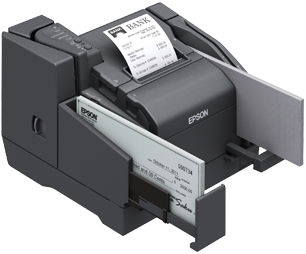

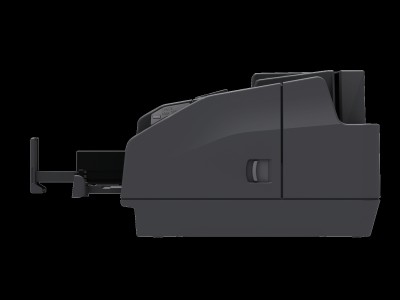

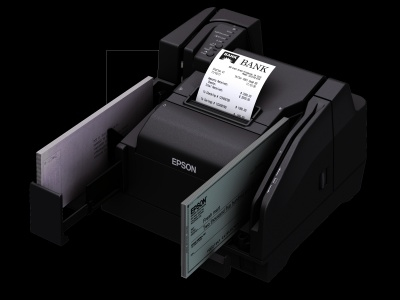

TM-S9000MJ (132)
Model TM-S9000MJ (132)Part no. A41A267132EAN 8715946521381
56 specifications
- ConnectivityWired
- TypePOS printer
- Weight5 kg
- ColourNo
- Print technologyInkjet
- Maximum printing width21.5 cm
Overview
- Connectivity
- Wired
- Type
- POS printer
- Weight
- 5 kg
- Colour
- No
- Print technology
- Inkjet
- Maximum printing width
- 21.5 cm
- Brand
- Epson
- Category
- POS Printer
- Model
- TM-S9000MJ (132)
- Part number
- A41A267132
- EAN / UPC
- 8715946521381
- Also known as
- Epson TM-S9000MJ (132): 200DPM, 1Pocket, USB, w/o MSR
Specifications
56 specifications in 13 groups
Printing
| Specification | Value |
|---|---|
| Print technology | Inkjet |
| Type | POS printer |
| Colour | No |
| Maximum resolution | 180 x 180 DPI |
| Print speed | 800 mm/sec |
| Print speed (receipt) | 300 mm/sec |
| Character size | 1.41 x 3.39 mm |
| Character structure | Font A: 12 x 24, Font B: 9 x 17 |
| Characters per line | Font A: 59 - 126, Font B: 78 - 169 (Depends on the paper length) |
| Paper size check | 60 mm - 120 mm (H) x 120 mm - 235 mm (L) |
Paper handling
| Specification | Value |
|---|---|
| Maximum printing width | 21.5 cm |
| Printing media thickness | 80 - 200 µm |
| Supported paper width | 80, 42 / 56 mm |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| USB port | Yes |
| USB connector | USB Type-B |
| Interface | USB 2.0 |
| Standard interfaces | USB 2.0 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
Features
| Specification | Value |
|---|---|
| Autocutter durability | 2 million cuts |
| Country of origin | China |
| Sensor type | CIS |
| Printer receipt unit life | 20000000 lines |
| Safety | TÜV |
Design
| Specification | Value |
|---|---|
| Product colour | Dark Grey |
Power
| Specification | Value |
|---|---|
| Power source type | USB |
| Power supply type | AC |
| USB powered | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 20 - 80% |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage relative humidity (H-H) | 5 - 85% |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 250 mm |
| Depth | 264 mm |
| Height | 177 mm |
| Weight | 5 kg |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 360 mm |
| Package depth | 400 mm |
| Package height | 290 mm |
| Package weight | 5.5 kg |
Print quality
| Specification | Value |
|---|---|
| Maximum print height | 5.08 cm |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE |
| Connector(s) | D.K.D. function (2 drivers) |
| Media weight (tray 1) | 60 g/m2 - 120 g/m2 |
| Voltage | 24 V |

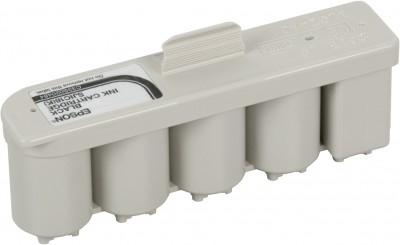

| Box contents | 2 x Ink cartridge, AC adapter, J, Power cable, Thermal roll paper, USB cable, User manual |
| Data format | Grey scale: TIFF, JPEG, BMP, Raster, Black and White: TIFF, BMP, 24-bit colour: TIFF, JPEG, BMP, IR (infrared ray): Same as Black and White, Greyscale |
| Document size | 120 mm - 235 mm (L) x 60 mm - 120 mm (H) |
| Paper size roll paper | 79.50 ± 0.50 (W) mm x dia 83.00 mm |
Other features
| Specification | Value |
|---|---|
| Endorsement printing | Yes |
| LED indicators | Yes |
| Mean cycles between failures (MCBF) | 96000000 |
| Media types supported | Normal paper, Check cards, ID cards |
| Pocket capacities | ASF:100 Sheets, Main pocket:100 Sheets |
| Print head life (receipt unit) | 150 km - 150,000,000 pulses |
