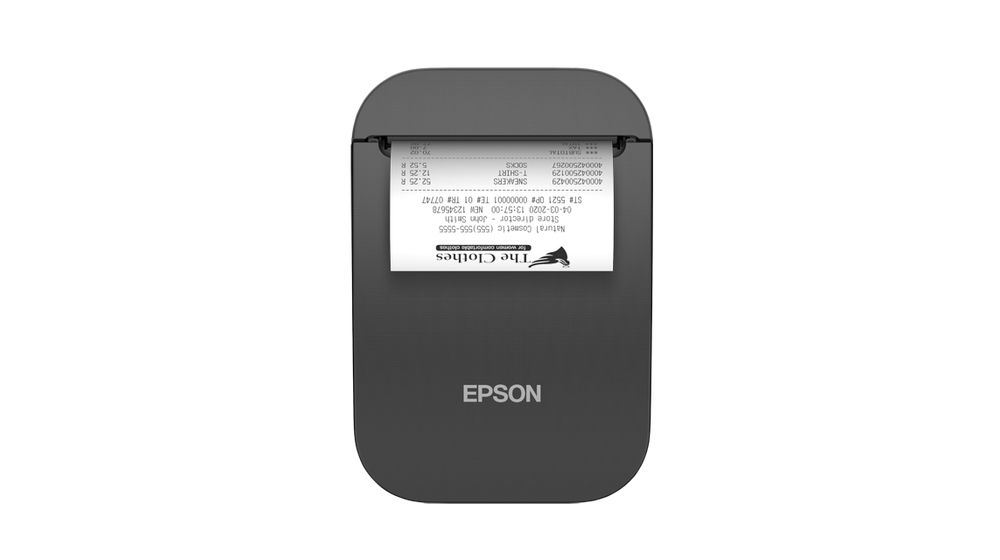

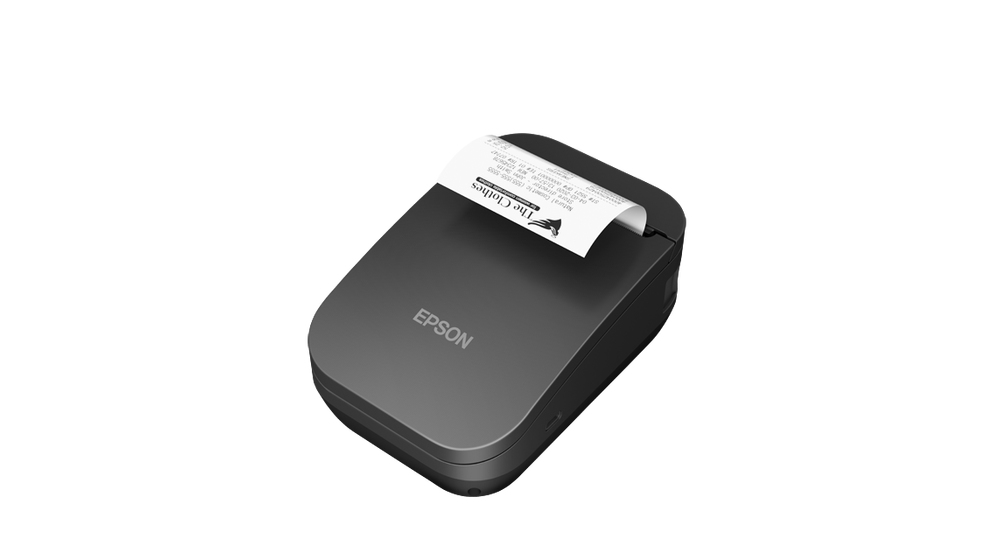

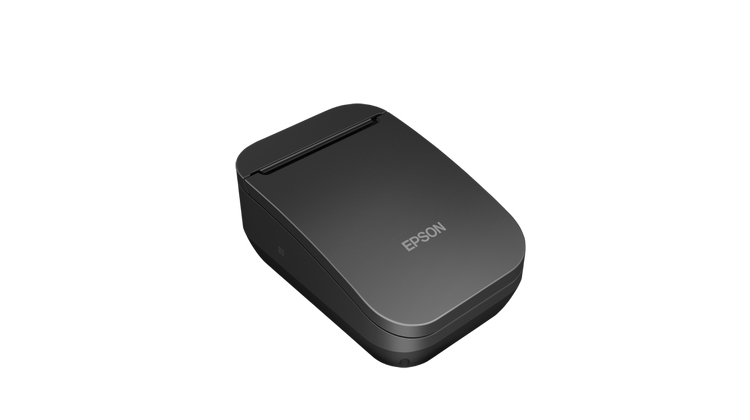

TM-P80II AC (121)
Model TM-P80II AC (121)Part no. C31CK00121EAN 8715946709291
59 specifications
- Battery1950 mAh
- ConnectivityWired & Wireless
- TypeMobile printer
- Weight500 g
- ColourNo
- Print technologyThermal
Overview
- Battery
- 1950 mAh
- Connectivity
- Wired & Wireless
- Type
- Mobile printer
- Weight
- 500 g
- Colour
- No
- Print technology
- Thermal
- Brand
- Epson
- Category
- POS Printer
- Model
- TM-P80II AC (121)
- Part number
- C31CK00121
- EAN / UPC
- 8715946709291
- Also known as
- Epson TM-P80II (121): Mobile Receipt, Autocutter, Bluetooth, USB-C, Black, EMEA
Specifications
59 specifications in 13 groups
Printing
| Specification | Value |
|---|---|
| Print technology | Thermal |
| Type | Mobile printer |
| Colour | No |
| Maximum resolution | 203 x 203 DPI |
| Print speed | 100 mm/sec |
| Print speed (receipt) | 100 mm/sec |
| Printing characters | Graphic, Barcode, 2D barcode, Text |
Paper handling
| Specification | Value |
|---|---|
| Paper loading type | Top & front |
| Maximum printing width | 8 cm |
| Printing media thickness | 75 µm |
| Supported paper width | 80 mm |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired & Wireless |
| USB port | Yes |
| USB connector | USB Type-C |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Near Field Communication (NFC) | Yes |
| Interface | Bluetooth, USB Type-C |
Features
| Specification | Value |
|---|---|
| Built-in barcodes | Code 128 (A/B/C), CODABAR (NW-7), UPC-E, UPC-A, GS1 DataBar, EAN8, GS1-128, EAN13, Code 39, Data Matrix, Code 93, ITF, MaxiCode, PDF417 |
| Sound pressure level (printing) | 53 dB |
| Mean time between failures (MTBF) | 120000 h |
| Cutter | Yes |
| Paper save function | Yes |
| Country of origin | Philippines |
| Print head life | 50 km |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| AC input voltage | 7.2 V |
| Battery life (max) | 34 h |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -15 - 50 °C |
| Storage relative humidity (H-H) | 0 - 90% |
| Storage temperature (T-T) | -25 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 105 mm |
| Depth | 153 mm |
| Height | 67 mm |
| Weight | 500 g |
Packaging data
| Specification | Value |
|---|---|
| Cables included | USB |
| Quantity per pack | 1 pc(s) |
| Package width | 220 mm |
| Package depth | 165 mm |
| Package height | 115 mm |
| Package weight | 795 g |
Battery
| Specification | Value |
|---|---|
| Battery capacity | 1950 mAh |
Logistics data
| Specification | Value |
|---|---|
| Products per pallet | 320 pc(s) |
| Products per pallet layer | 40 pc(s) |
| Pallet gross width | 80 cm |
| Pallet gross length | 120 cm |
| Pallet gross height | 2.23 m |
| Products per pallet (UK) | 384 pc(s) |
| Products per pallet layer (UK) | 48 pc(s) |
| Pallet length (UK) | 120 cm |
| Pallet height (UK) | 2.23 m |
Technical details
| Specification | Value |
|---|---|
| Technology | Thermal Line |
| Font styles | ANK, BIG5, GB18030-80, JIS X0208-90, KSC-5601C, Traditional Chinese, Simplified Chinese |
| Box contents | Battery (OT-BY20), Belt clip, Main unit, Quick Start Guide, Roll paper, Setup guide, USB cable, Warranty document |
| Paper size roll paper | 79.50 ± 0.50 (W) mm x dia 51.00 mm |
| Print speed | Max. 100 mm/sec at 203 x 203 DPI ( printing width80 mm) |
Other features
| Specification | Value |
|---|---|
| Buffer size | 64 KB |
